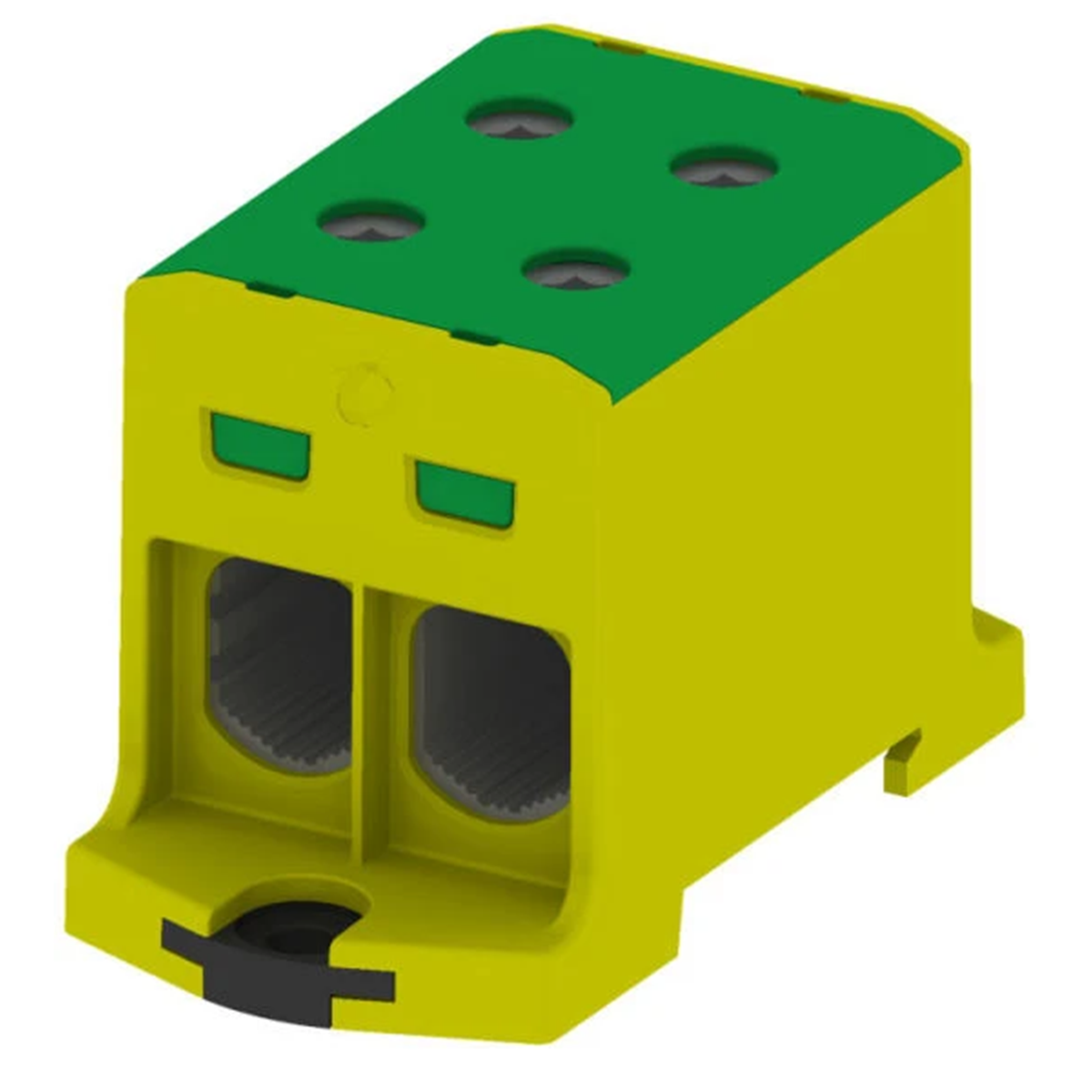

Threaded terminal block AL/CU, 6-95mm2, TS 35, 1 track, 4 holes clamp 89735009

Místní index:
TES032SIME
Katalogové číslo.:
89735009
EAN kód:
5907813227479
Výrobce: SIMET
Color: Yellow-green
Rated current [A]: 490
Nominal cross-section [mm²]: 95
Cena:
34,56 €
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
Není skladem
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Vytisknout

Popis produktu

Threaded terminal block AL/CU, 6-95mm2, TS 35, 1 track, 4 holes clamp

Technické údaje

  • Color
    Yellow-green
  • Nominal cross-section [mm²]
    95
  • Accurate color
    Yellow green
  • Rated current [A]
    490
  • Libra
    125
  • PKWIU
    27.33.13.0

Další technické údaje

  • Connectable conductor cross section fine-strand without cable end sleeve
    6 ... 95 mm²
  • Connectable conductor cross section solid-core
    6 ... 95 mm²
  • Rated current In
    220 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    51 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Green/yellow
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    6 ... 95 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    42 mm
  • Length
    84 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes
