SIMET

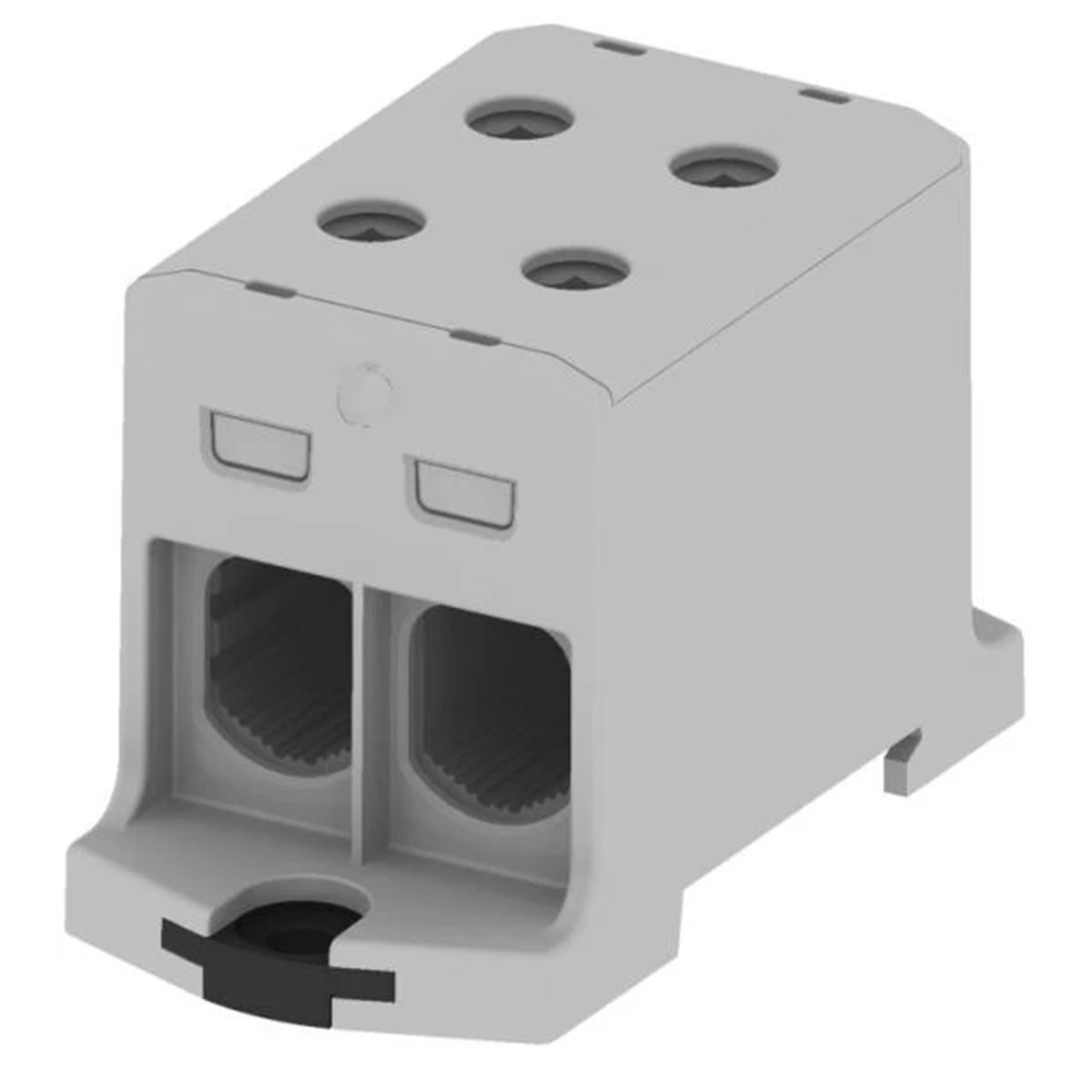

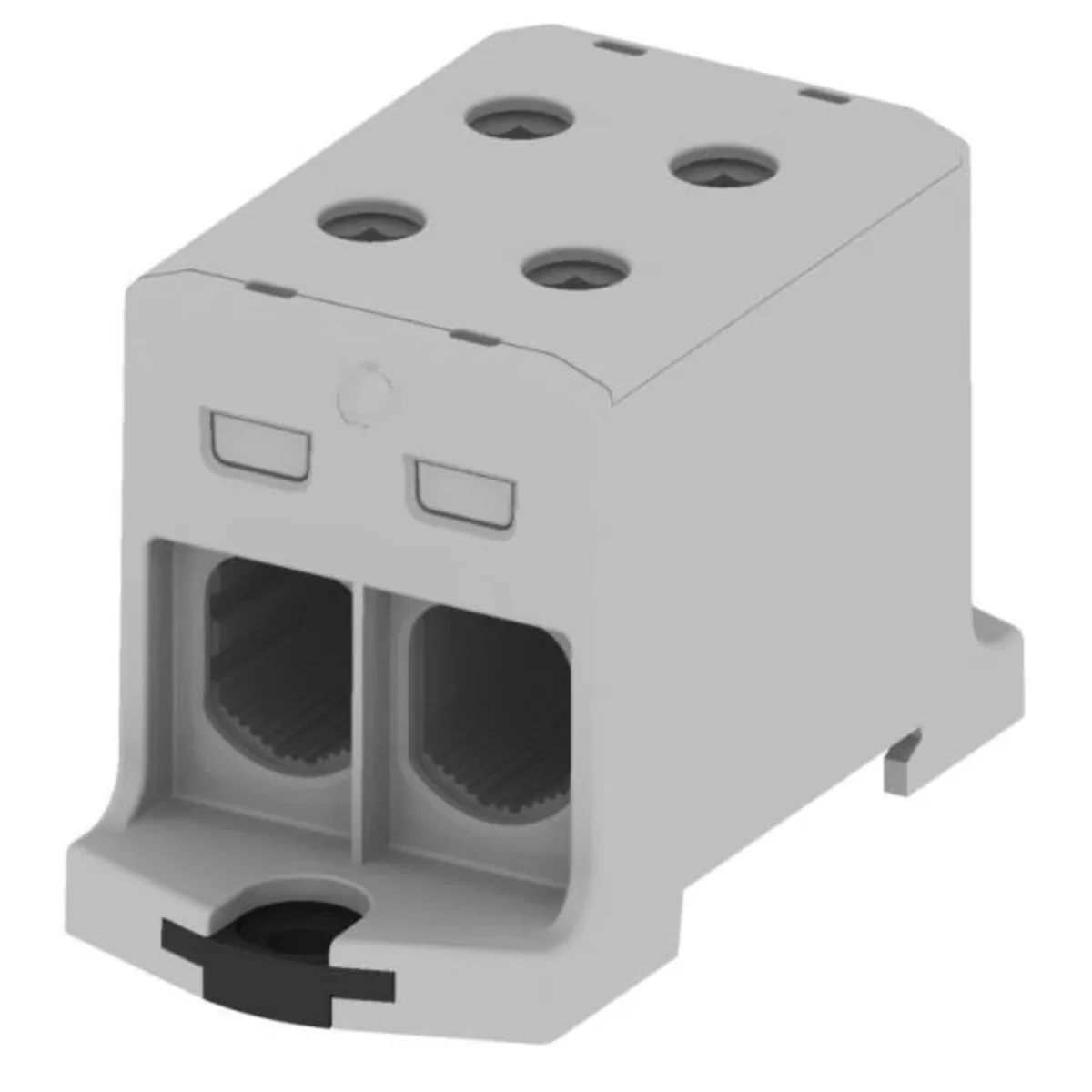

Threaded terminal block AL/CU, 35-240mm2, TS 35, 1 track, 4 holes Clamp, grey 89739002

local index:
TES033SIME
Catalog No:
89739002
EAN code:
5907813227615
Price:
138,92 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Threaded terminal block AL/CU, 35-240mm2, TS 35, 1 track, 4 holes Clamp, grey.

Technical data

  • Color
    Gray
  • Nominal cross-section [mm²]
    240
  • Accurate color
    Gray
  • Rated current [A]
    850
  • Libra
    340

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    35 ... 240 mm²
  • Connectable conductor cross section solid-core
    35 ... 240 mm²
  • Rated current In
    380 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    65 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    35 ... 240 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    37 mm
  • Length
    106 mm
  • Closing plate required
    no
  • Internally connected stages
    yes
