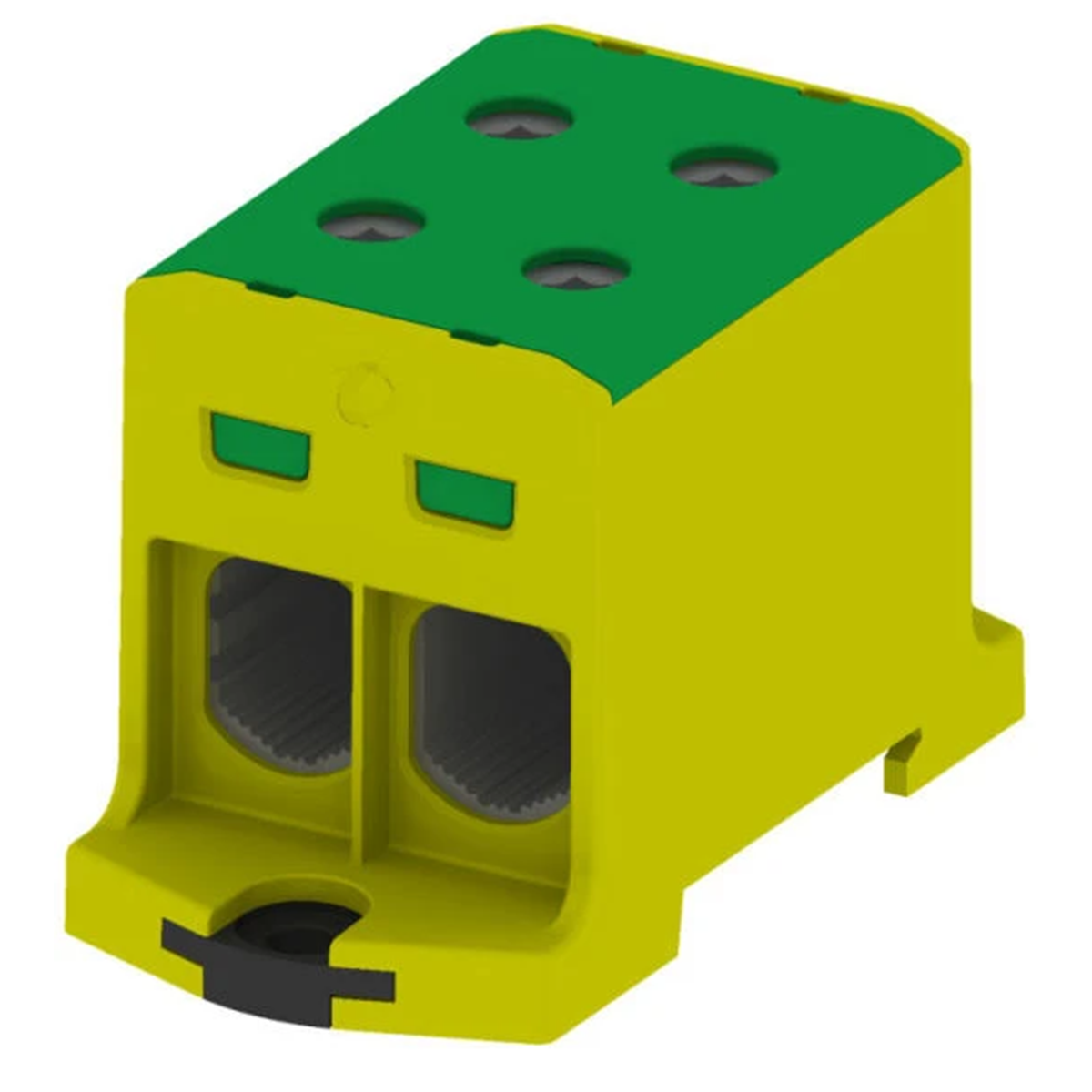

Threaded terminal block AL/CU, 35-240mm2, TS 35, 1 track, 4 holes Clamp 89741009

local index:
TES035SIME
Catalog No:
89741009
EAN code:
5907813227653
Manufacturer: SIMET
Color: Yellow-green
Rated current [A]: 850
Nominal cross-section [mm²]: 240
Price:
137,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Threaded terminal block AL/CU, 35-240mm2, TS 35, 1 track, 4 holes Clamp, yellow-green.

Technical data

  • Color
    Yellow-green
  • Nominal cross-section [mm²]
    240
  • Accurate color
    Yellow-green
  • Rated current [A]
    850
  • Libra
    340
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    35 ... 240 mm²
  • Connectable conductor cross section solid-core
    35 ... 240 mm²
  • Rated current In
    380 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    65 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Green/yellow
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    35 ... 240 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    37 mm
  • Length
    106 mm
  • Closing plate required
    no
  • Internally connected stages
    yes
