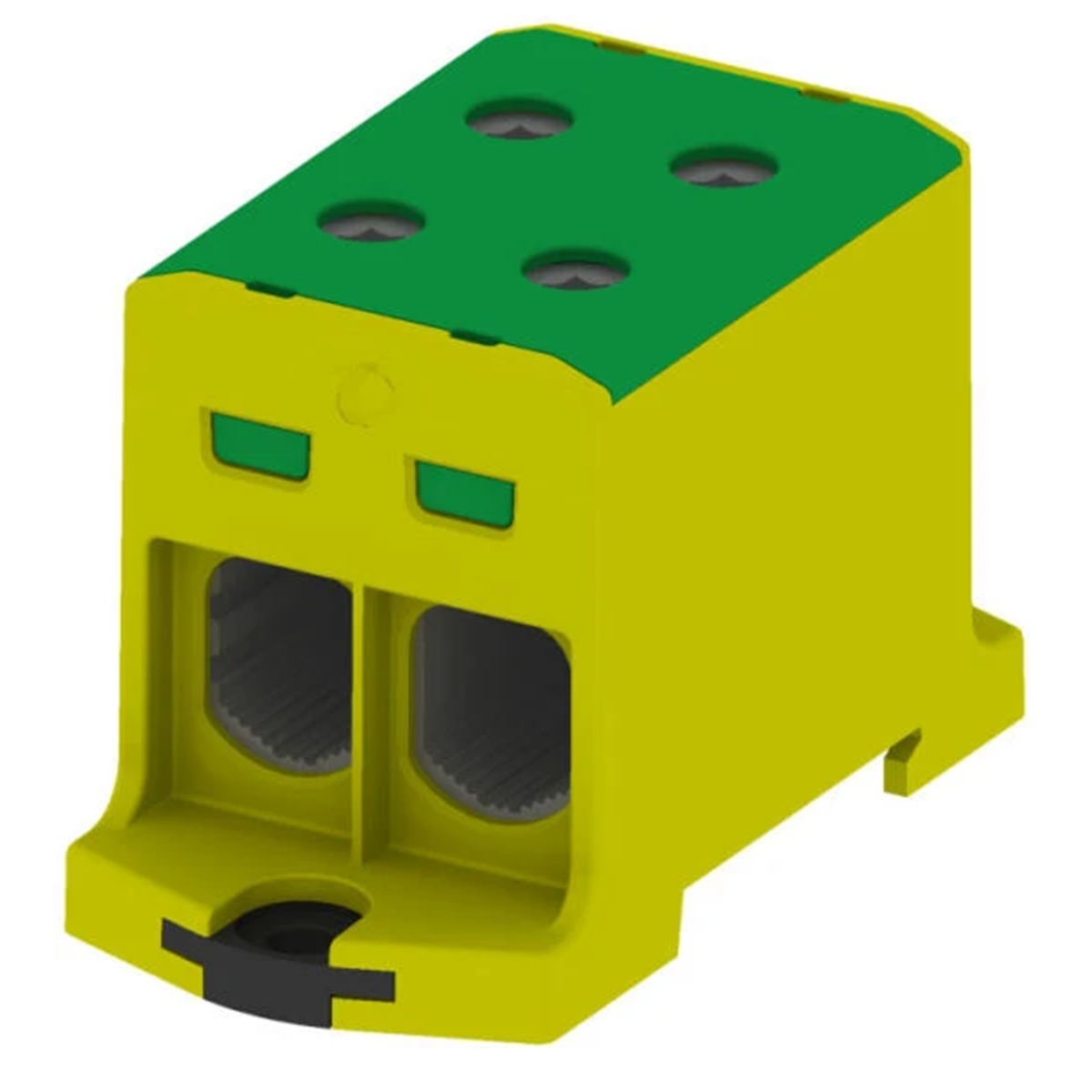

Threaded terminal block AL/CU, 25-150mm2, TS 35, 1 track, 4 holes clamp 89738009

Indice locale:
TES038SIME
Numero di catalogo:
89738009
Codice EAN:
5907813227592
Produttore: SIMET
Color: Yellow-green
Rated current [A]: 640
Nominal cross-section [mm²]: 150
Prezzo:
328,63 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Esaurito
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

Threaded terminal block AL/CU, 25-150mm2, TS 35, 1 track, 4 holes clamp

Dati tecnici

  • Color
    Yellow-green
  • Nominal cross-section [mm²]
    150
  • Accurate color
    Yellow green
  • Rated current [A]
    640
  • Libra
    170
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Connectable conductor cross section fine-strand without cable end sleeve
    25 ... 150 mm²
  • Connectable conductor cross section solid-core
    25 ... 150 mm²
  • Rated current In
    290 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    54 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Green/yellow
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    25 ... 150 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    31 mm
  • Length
    84 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes
