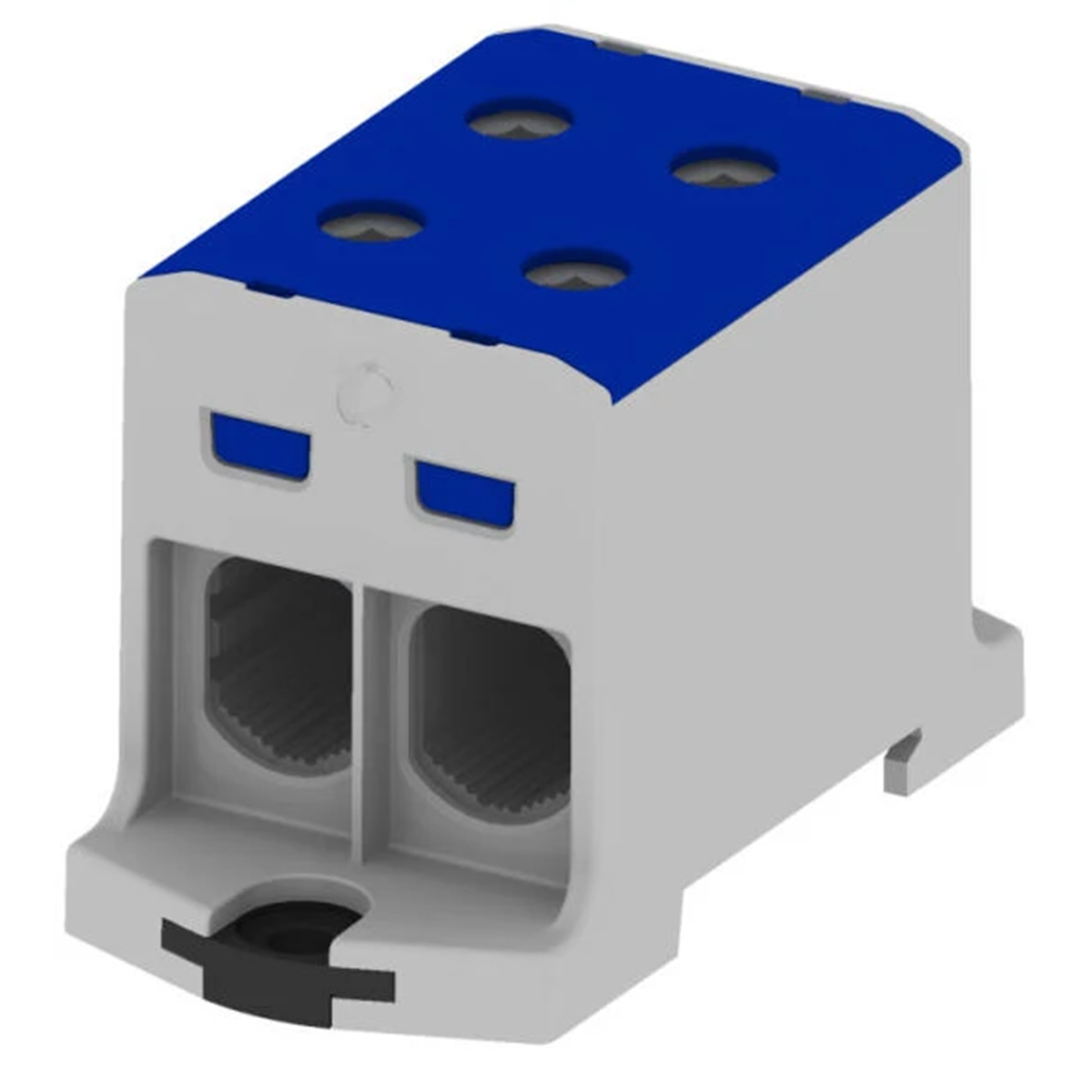

Threaded terminal block AL/CU, 25-150mm2, TS 35, 1 track, 4 holes Clamp 89737003

Indeks lokalny:
TES037SIME
Nr katalogowy:
89737003
Kod EAN:
5907813227578
Producent: SIMET
Color: Blue
Rated current [A]: 640
Nominal cross-section [mm²]: 150
Cena:
325,24 zł
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
Brak w magazynach
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Drukuj

Opis produktu

Threaded terminal block AL/CU, 25-150mm2, TS 35, 1 track, 4 holes clamp

Dane techniczne

  • Color
    Blue
  • Nominal cross-section [mm²]
    150
  • Accurate color
    Blue
  • Rated current [A]
    640
  • Libra
    170
  • PKWIU
    27.33.13.0

Pozostałe dane techniczne

  • Connectable conductor cross section fine-strand without cable end sleeve
    25 ... 150 mm²
  • Connectable conductor cross section solid-core
    25 ... 150 mm²
  • Rated current In
    290 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    54 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    25 ... 150 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    31 mm
  • Length
    84 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes
