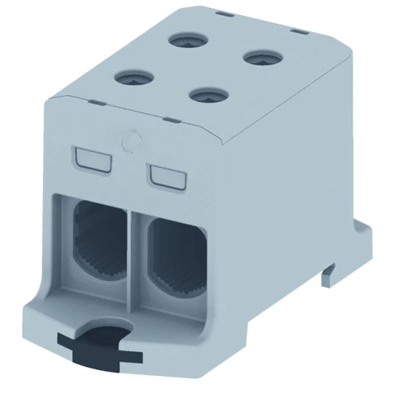

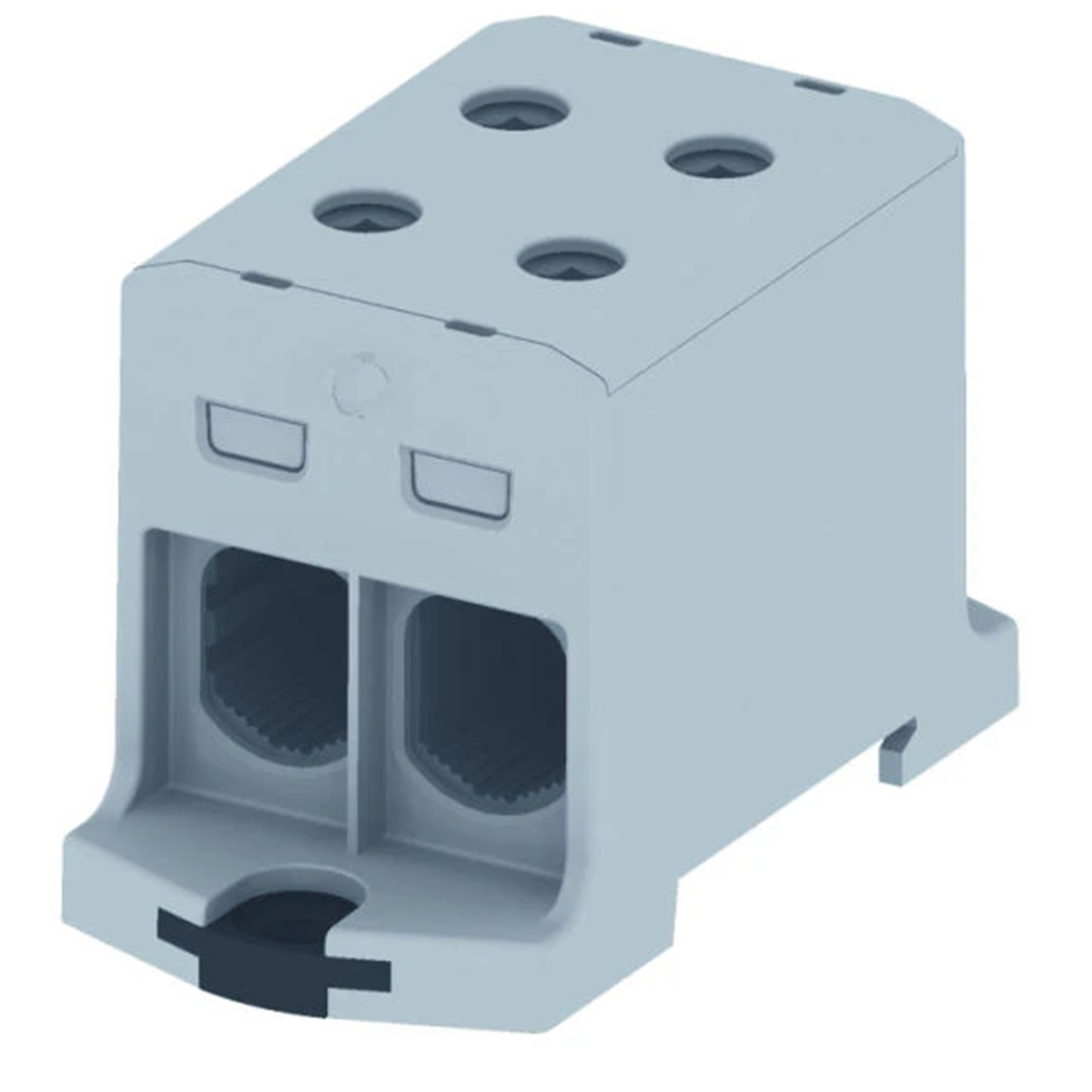

Threaded terminal block AL/CU, 25-150mm2, TS 35, 1 track, 4 holes clamp 89736002

Índice local:
TES036SIME
Número de catálogo:
89736002
Código EAN:
5907813227554
Fabricante: SIMET
Color: Gray
Rated current [A]: 640
Nominal cross-section [mm²]: 150
Precio:
330,24 zł
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Fuera de stock
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Imprimir

Descripción del producto

Threaded terminal block AL/CU, 25-150mm2, TS 35, 1 track, 4 holes clamp

Datos técnicos

  • Color
    Gray
  • Nominal cross-section [mm²]
    150
  • Accurate color
    Gray
  • Rated current [A]
    640
  • Libra
    170
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Connectable conductor cross section fine-strand without cable end sleeve
    25 ... 150 mm²
  • Connectable conductor cross section solid-core
    25 ... 150 mm²
  • Rated current In
    290 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    54 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    25 ... 150 mm²
  • Rated voltage
    690 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    31 mm
  • Length
    84 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes
