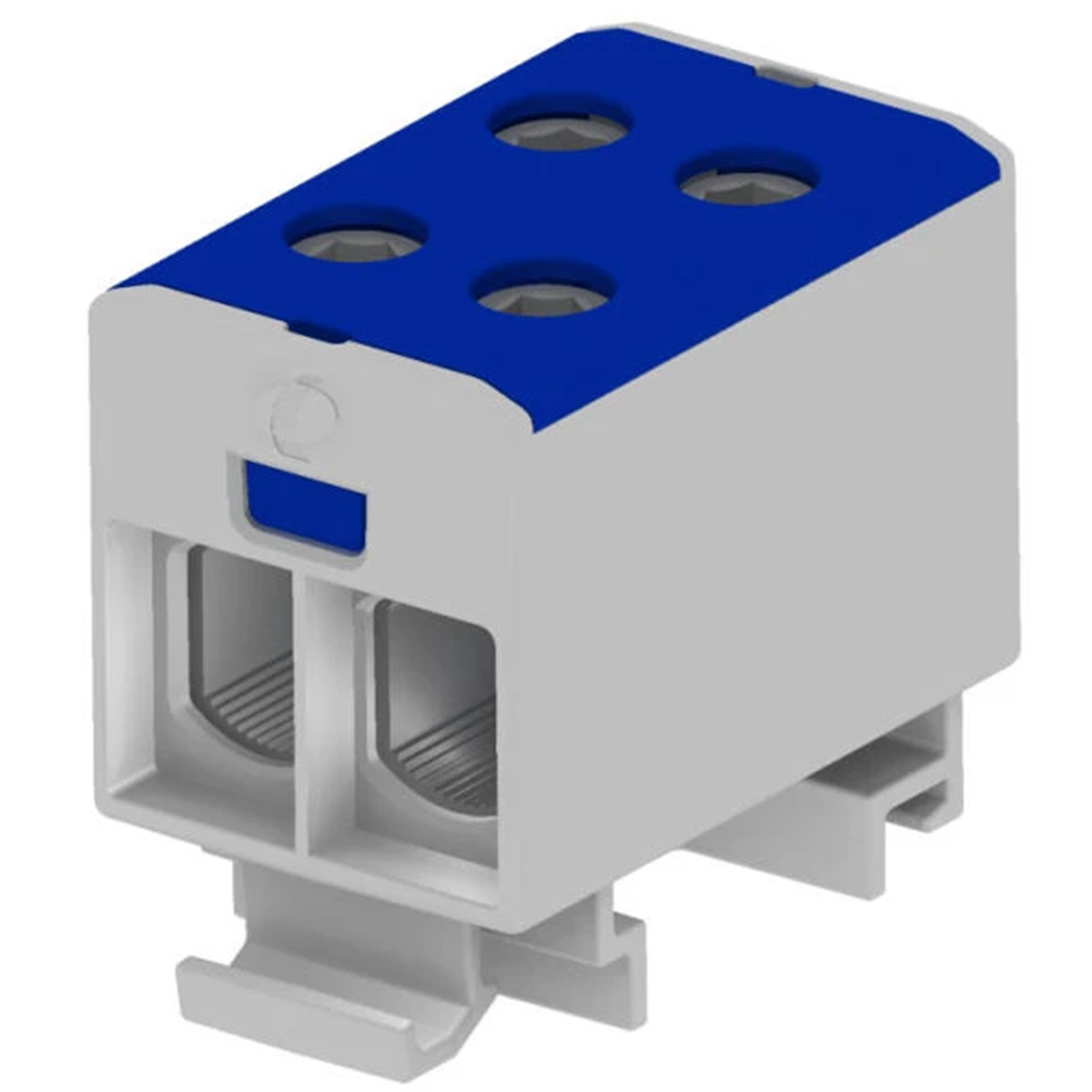

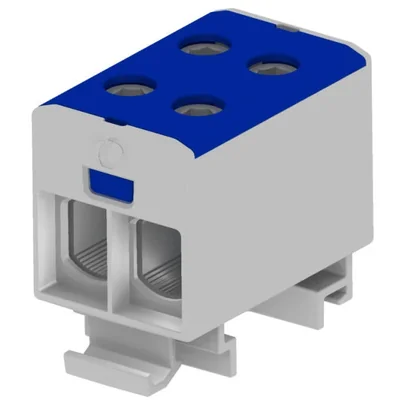

Threaded terminal block AL/CU, 1, 5-50mm2, TS 35, 1 track, 4 clamp holes 89731003

Name: Threaded terminal block AL/CU, 1, 5-50mm2, TS 35, 1 track, 4 clamp holes
Brand: SIMET
SKU: TES026SIME
Price: 21.55 PLN

local index:

TES026SIME

Catalog No:

89731003

EAN code:

5907813227318

Click on the photo to enlarge

Manufacturer: SIMET

Color: Blue

Rated current [A]: 320

Nominal cross-section [mm²]: 50

See full description

Price:

21,55 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

Out of stock

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

Branch threaded terminal block AL/CU, 1, 5-50mm2, TS 35, 1 track, 4 holes terminal

Connectable conductor cross section fine-strand without cable end sleeve

1,5 ... 50 mm²
Connectable conductor cross section solid-core

1,5 ... 50 mm²
Rated current In

145 A
Type of electrical connection 1

Screw connection
Connection position

Sideways
Number of clamp positions per level

4
Material insulation body

Thermoplastic
Wysokość przy najniższym sposobie montażu

43 mm
Explosion-tested version 'Ex e'

No
Colour

Blue

Connectable conductor cross section fine-strand with cable end sleeve

0 ... 0 mm²
Connectable conductor cross section multi-wired

1,5 ... 50 mm²
Rated voltage

1000 V
Type of electrical connection 2

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Width/grid dimension

30 mm
Length

49 mm
Closing plate required

No
Internally connected stages

Yes
