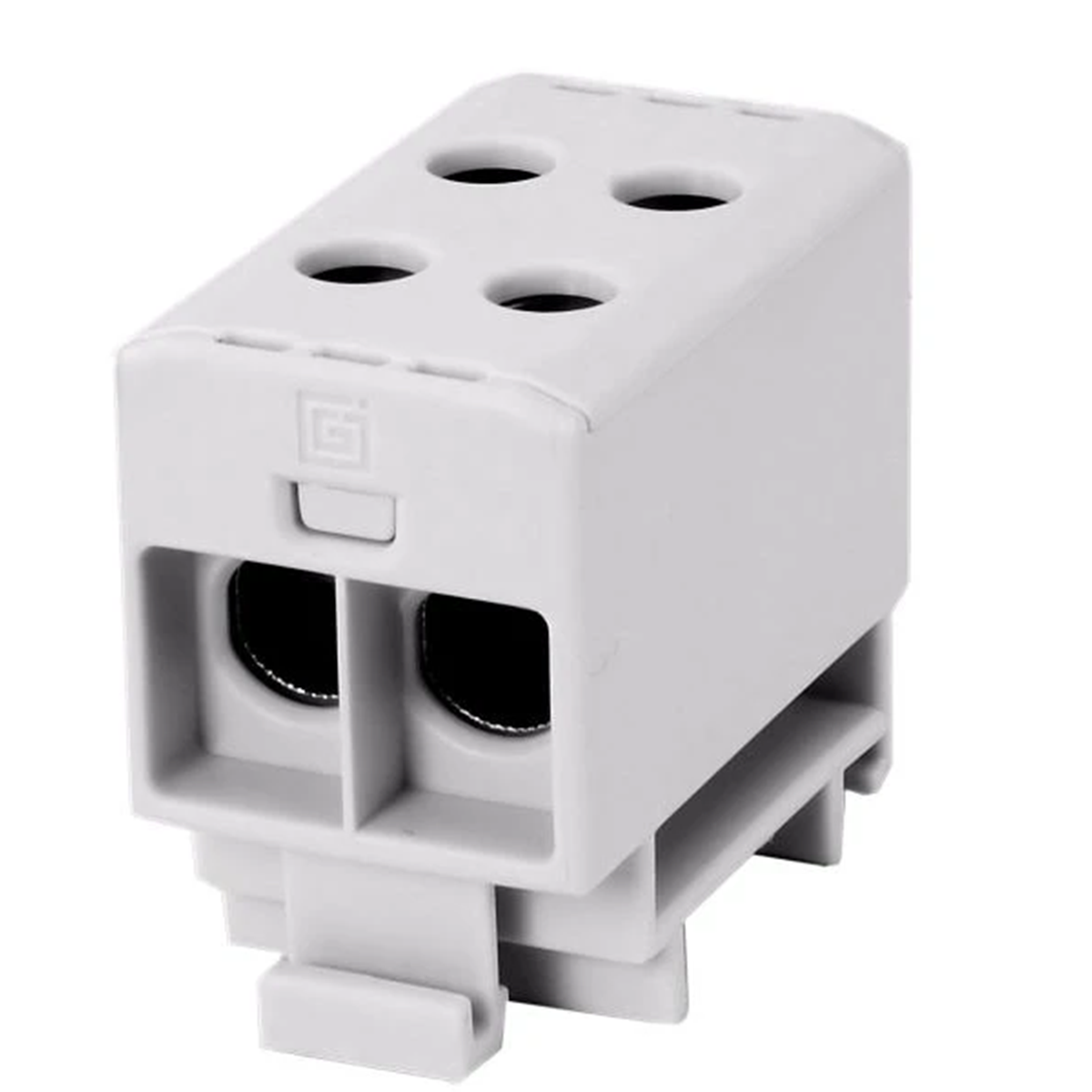

Threaded terminal block AL, CU, 2.5 - 35mm2, TS 35, 1 track, 4 holes clamp / VC05-0153 89797002

local index:
TES061SIME
Catalog No:
89797002
EAN code:
5907813227233
Manufacturer: SIMET
Color: Gray
Price:
20,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Branch threaded terminal block AL, CU, 2.5 - 35mm2, TS 35, 1 track, 4 holes clamp / VC05-0153

Technical data

  • Color
    Gray
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    2,5 ... 35 mm²
  • Connectable conductor cross section solid-core
    2,5 ... 35 mm²
  • Rated current In
    120 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    40 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    2,5 ... 35 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    27 mm
  • Length
    46 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes

Manufacturer details

  • Manufacturer
    SIMET S.A.
  • Address
    58-506 Jelenia Góra al. Jana Pawła II 33
  • Tax identification number
    6112112204
