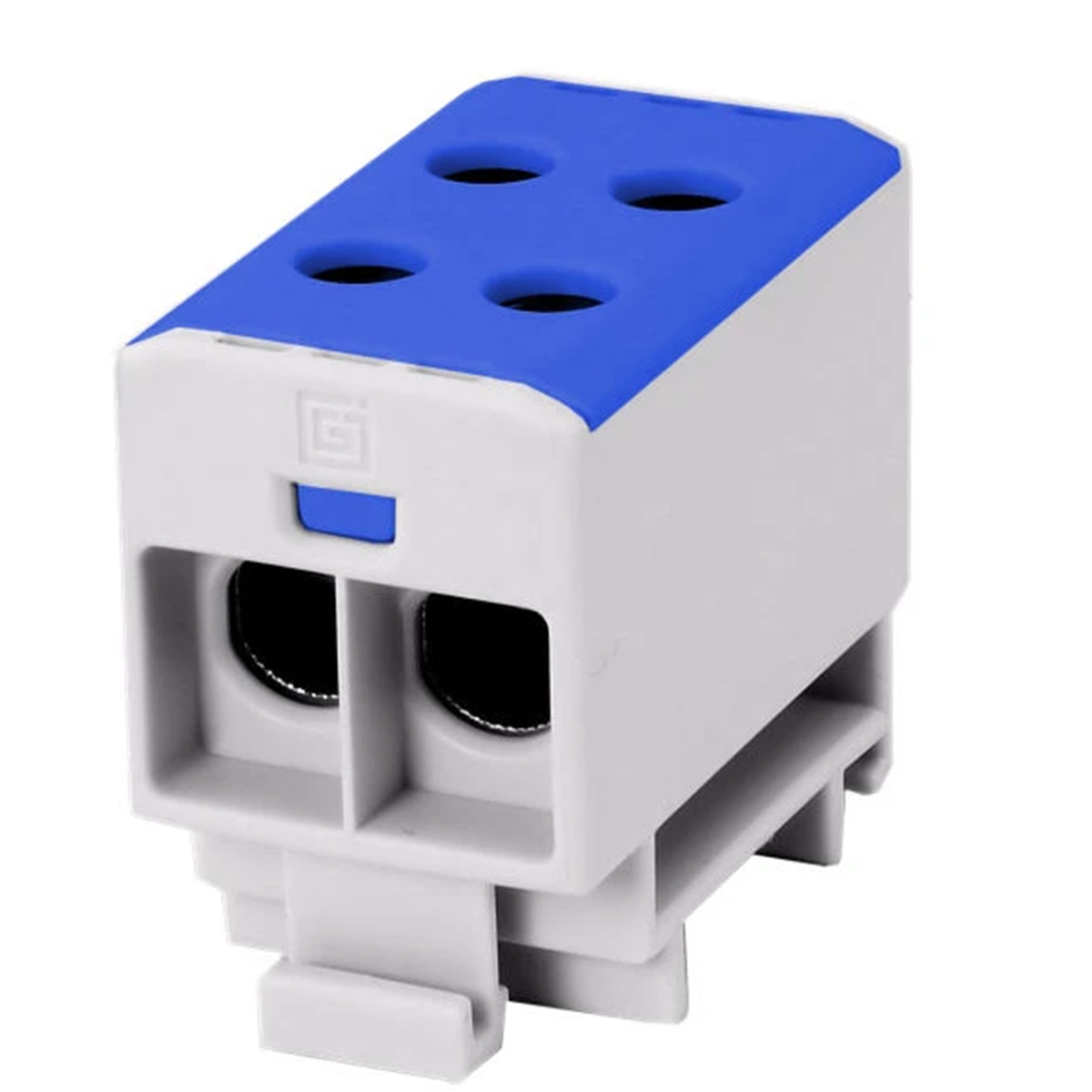

Threaded terminal block AL, CU, 2, 5-35mm2, TS 35, 1 track, 4 holes clamp / VC05-0154 89797003

local index:
TES062SIME
Catalog No:
89797003
EAN code:
5907813227257
Manufacturer: SIMET
Color: Blue
Price:
18,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Branch threaded terminal block AL, CU, 2, 5-35mm2, TS 35, 1 track, 4 holes clamp / VC05-0154

Technical data

  • Color
    Blue
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    2,5 ... 35 mm²
  • Connectable conductor cross section solid-core
    2,5 ... 35 mm²
  • Rated current In
    120 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Wysokość przy najniższym sposobie montażu
    40 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    2,5 ... 35 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Width/grid dimension
    27 mm
  • Length
    46 mm
  • Closing plate required
    No
  • Internally connected stages
    Yes
