Connecting cables and wires
Connectors
Rail connectors

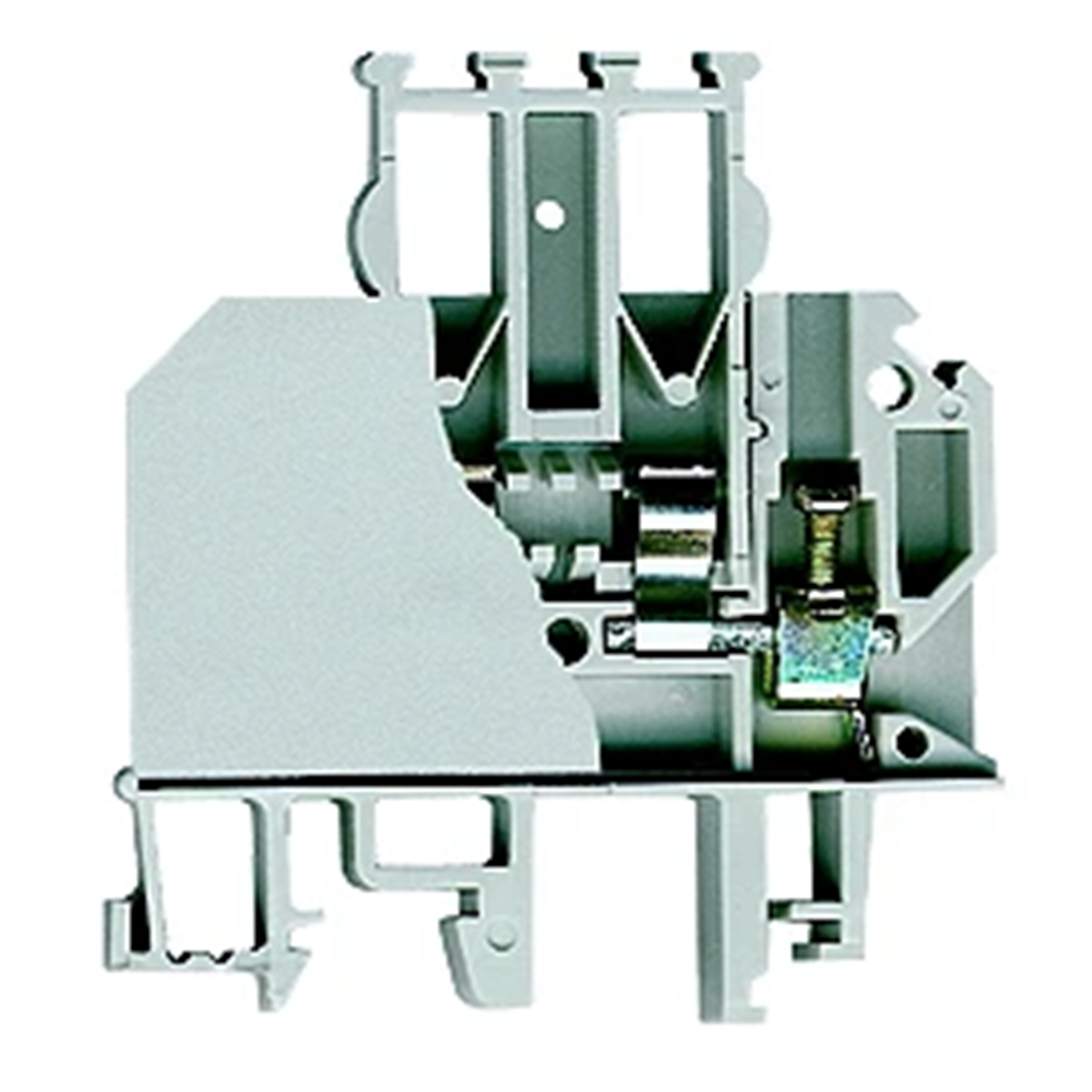

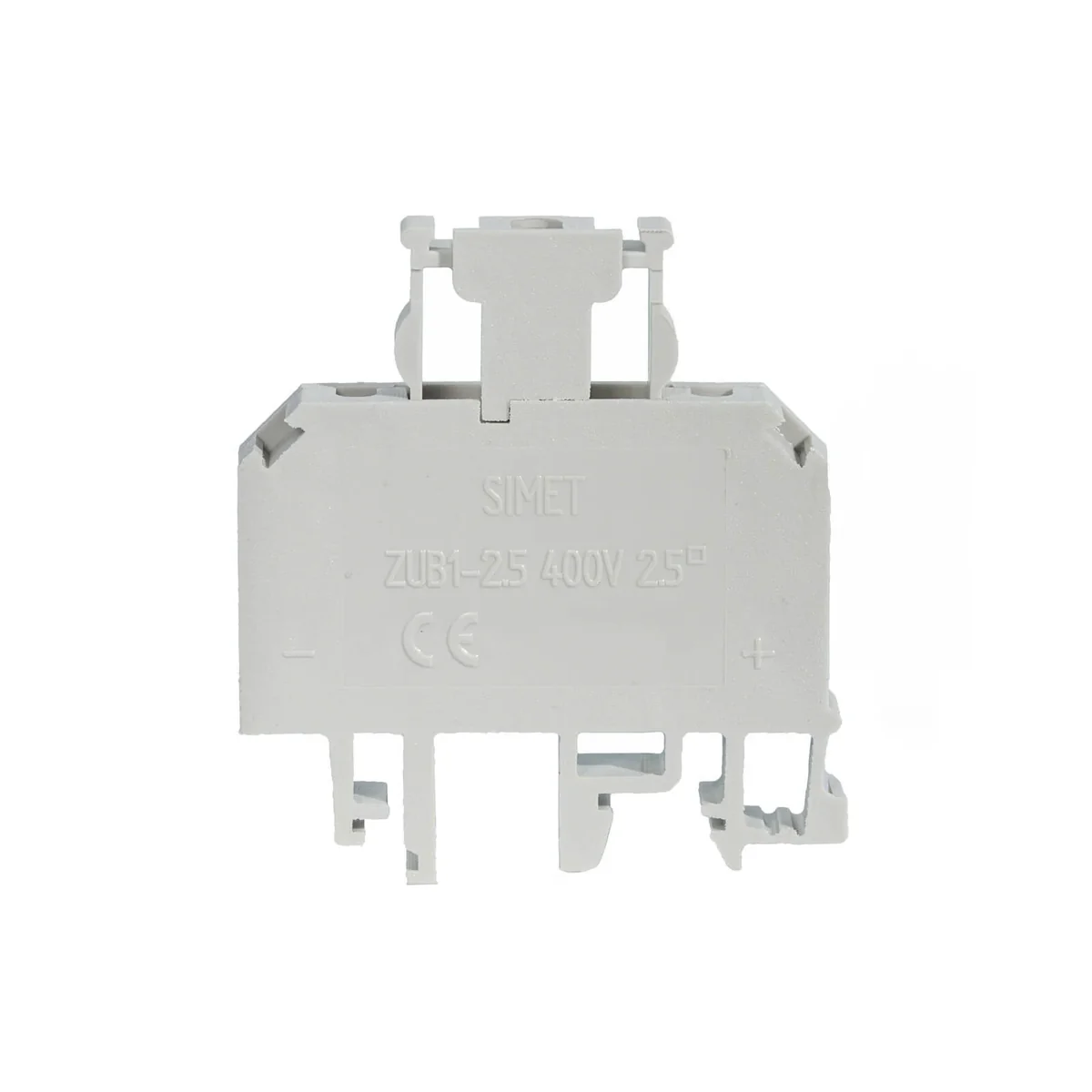

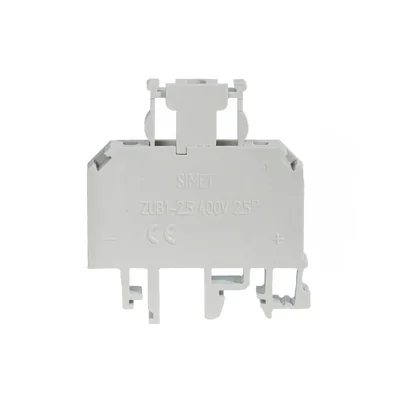

Threaded rail joint with a fuse, 2.5 mm2, TS 35, 1 pole 50pcs. 13202312
local index:
TES090SIME
Catalog No:
13202312
EAN code:
5907813208478
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Gray
Nominal cross-section [mm²]:
2.5
Pieces in the package:
50
See full description
Price:
194,83 €
gross / pkg.
(including VAT 23%)
3,90 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Threaded terminal block with fuse, 2.5 mm2, TS 35, 1 track
Technical data
Color
Gray
Pieces in the package
50
PKWIU
27.33.13.0
Nominal cross-section [mm²]
2.5
Libra
17.4
Other technical data
Type of fuse insert
G-fuse 5x20 mm
Rated voltage
230 V
Type of indication element for defect indication
None
Supply voltage for defect-indication
0 ... 0 V
Colour
Grey
Type of electrical connection 2
Screw connection
Operating temperature
-25 ... 125 °C
Number of levels
1
Material insulation body
Thermoplastic
Width/grid dimension
9 mm
Connectable conductor cross section fine-strand without cable end sleeve
0,5 ... 2,5 mm²
Connectable conductor cross section solid-core
0,5 ... 4 mm²
Connectable conductor cross section multi-wired
0,5 ... 2,5 mm²
Type of component
Miniature fuse
Type of fuse holder
Pluggable
Length
57 mm
Explosion-tested version 'Ex e'
No
Mounting method
DIN rail (top hat rail) 35 mm
Type of electrical connection 1
Screw connection
Connection position
Sideways
Rated current In
6,9 A
Number of clamp positions per level
2
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
55 mm
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Closing plate required
No
Internally connected stages
No
See more >>
