SIMET

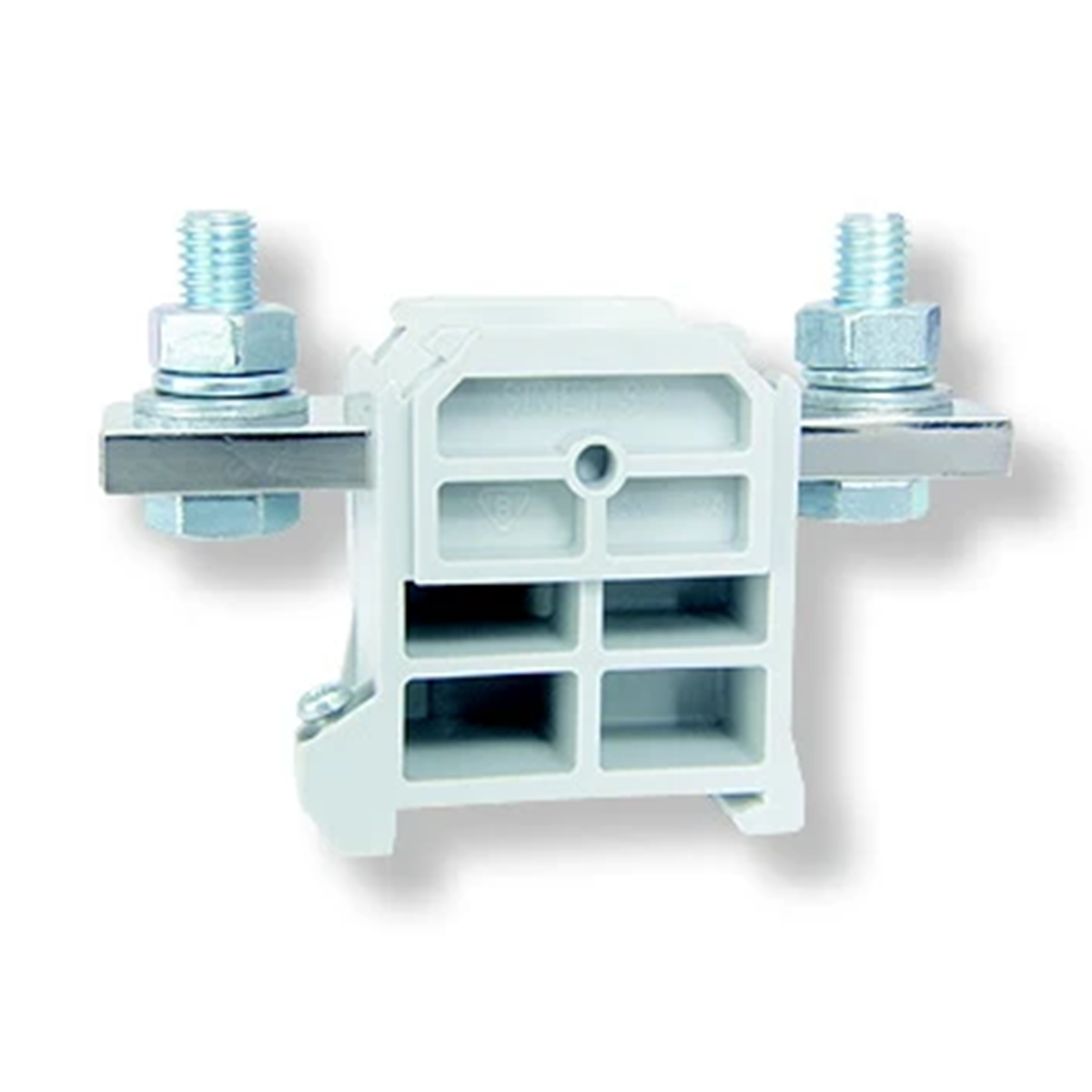

Threaded rail joint, 95 mm2 TS 35, 1 pole 5pcs. 12902312

local index:
TEG151SIME
Catalog No:
12902312
EAN code:
5907813209772
Price:
56,01 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,46 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Threaded terminal block, 95 mm2, TS 35, 1 track

Technical data

  • Color
    Gray
  • Nominal cross-section [mm²]
    95
  • Libra
    224.3
  • Rated current [A]
    232
  • Pieces in the package
    5

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Grey
  • Type of electrical connection 2
    Screw connection
  • Rated current In
    232 A
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    41 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    10 ... 95 mm²
  • Connectable conductor cross section solid-core
    10 ... 95 mm²
  • Connectable conductor cross section multi-wired
    10 ... 95 mm²
  • Length
    88 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Operating temperature
    -25 ... 125 °C
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    61 mm
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Closing plate required
    no
  • Internally connected stages
    no
