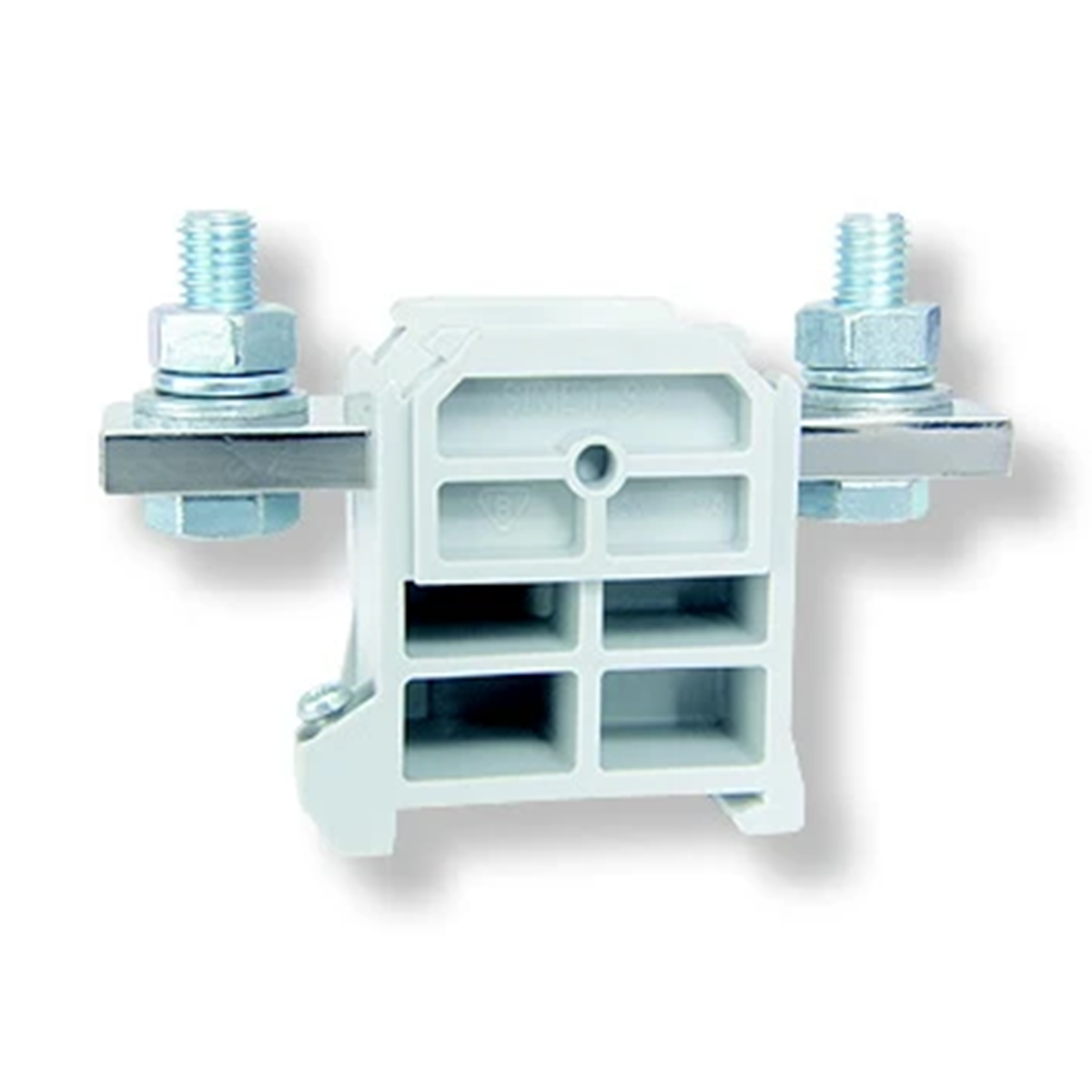

Threaded rail joint, 70 mm2, TS 35, 1 pole 5pcs. 12901312
local index:
TES008SIME
Catalog No:
12901312
EAN code:
5907813209710
Price:
64,22 €
gross / pkg.
(including VAT 23%)
12,84 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Threaded terminal block, 70 mm2, TS 35, 1 track
Technical data
-
ColorGray
-
Nominal cross-section [mm²]70
-
Libra180
-
Rated current [A]192
-
Pieces in the package5
-
PKWIU27.33.13.0
Other technical data
-
Rated voltage800 V
-
Length85 mm
-
ColourGrey
-
Type of electrical connection 2Screw connection
-
Connection positionSideways
-
Number of levels1
-
Material insulation bodyThermoplastic
-
Width/grid dimension41 mm
-
Wysokość przy najniższym sposobie montażu56 mm
-
Connectable conductor cross section solid-core10 ... 70 mm²
-
Closing plate requiredNo
-
Explosion-tested version 'Ex e'No
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Type of electrical connection 1Screw connection
-
Rated current In192 A
-
Operating temperature-25 ... 125 °C
-
Number of clamp positions per level2
-
Inflammability class of insulation material according to with UL94V0
-
Connectable conductor cross section fine-strand without cable end sleeve10 ... 70 mm²
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired10 ... 70 mm²
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
