Threaded rail joint, 240mm2 TS 35, 1 pole 5pcs. 12904313

Lokaler Index:
TEG032SIME
Katalognummer:
12904313
EAN-Code:
5907813209901
Hersteller: SIMET
Color: Blue
Rated current [A]: 415
Nominal cross-section [mm²]: 240
Preis:
504,36 zł
gross / pack
(inklusive MwSt 23%)
100,87 zł gross/stk.
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge pack
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

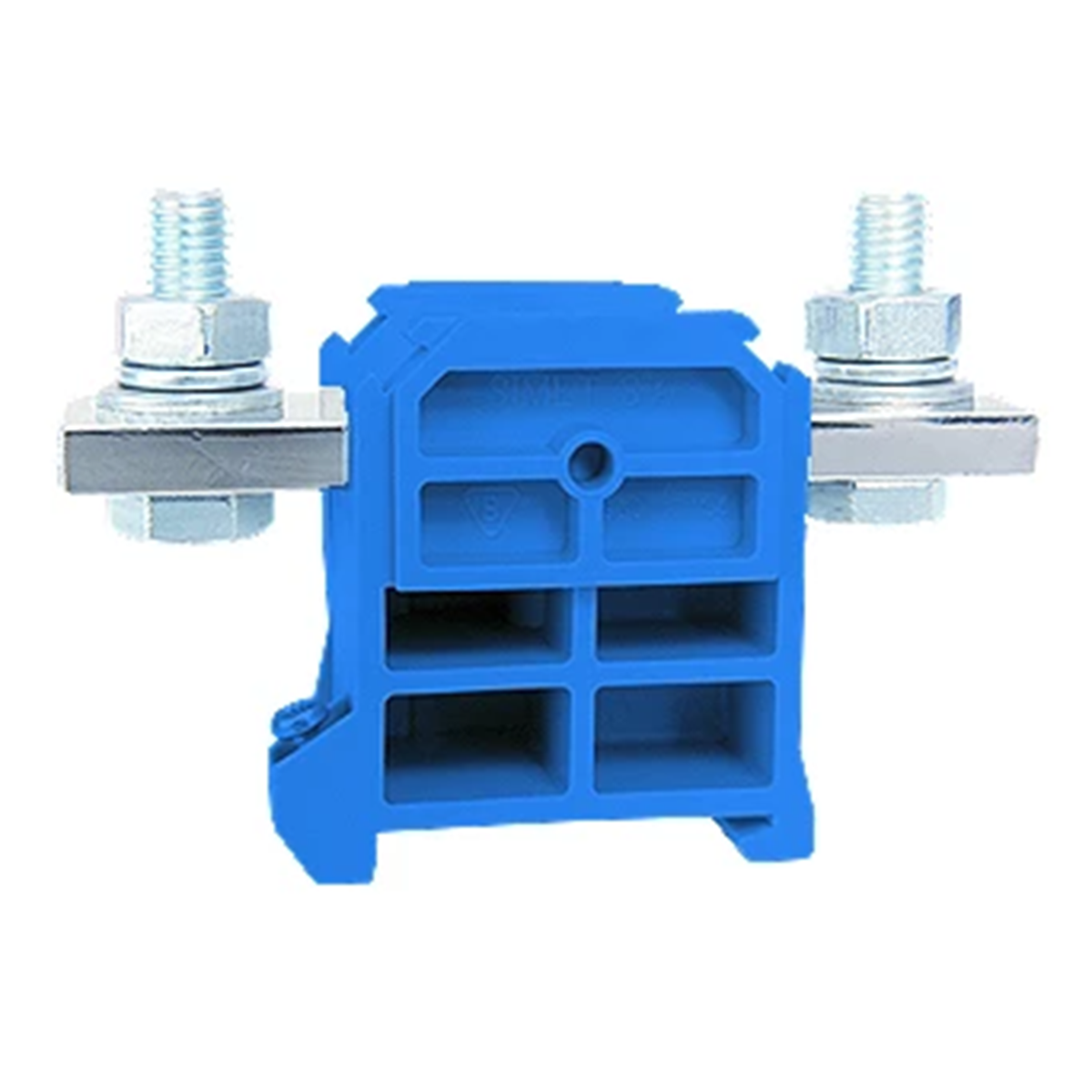

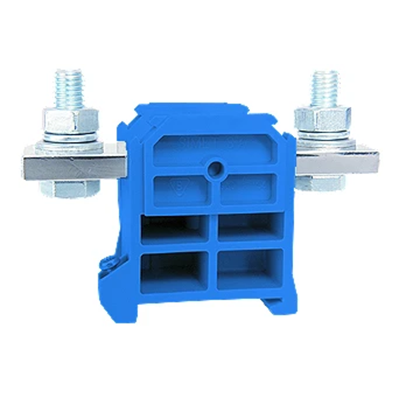

Threaded terminal block, 240.0 mm2, TS 35, 1 track

Technische Daten

  • Color
    Blue
  • Nominal cross-section [mm²]
    240
  • Libra
    370.2
  • Rated current [A]
    415
  • Pieces in the package
    5
  • PKWIU
    27.33.13.0

Weitere technische Daten

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    41 mm
  • Wysokość przy najniższym sposobie montażu
    66 mm
  • Connectable conductor cross section solid-core
    70 ... 240 mm²
  • Closing plate required
    No
  • Length
    104 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    415 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    70 ... 240 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    70 ... 240 mm²
  • Internally connected stages
    No

Hersteller-Details

  • Hersteller
    SIMET S.A.
  • Adresse
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska
