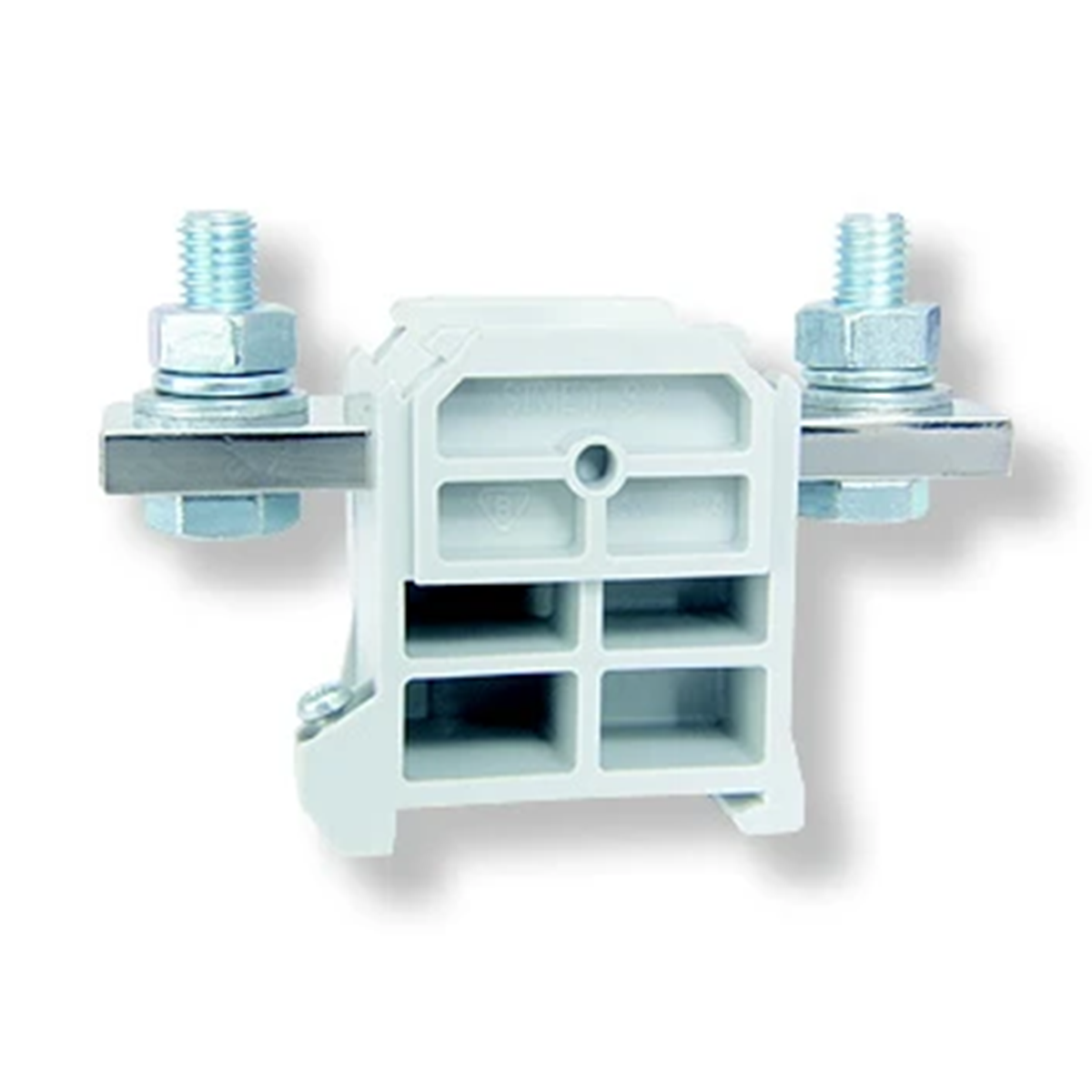

Threaded rail joint, 120 mm2 TS 35, 1 pole 5pcs. 12903312
local index:
TEG154SIME
Catalog No:
12903312
EAN code:
5907813209833
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Gray
Rated current [A]:
41
Nominal cross-section [mm²]:
120
See full description
Price:
77,81 €
gross / pkg.
(including VAT 23%)
15,56 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Threaded terminal block, 120 mm2, TS 35, 1 track
Technical data
Color
Gray
Nominal cross-section [mm²]
120
Libra
229.3
Rated current [A]
41
Pieces in the package
5
PKWIU
27.33.13.0
Other technical data
Rated voltage
800 V
Explosion-tested version 'Ex e'
No
Colour
Grey
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Material insulation body
Thermoplastic
Width/grid dimension
41 mm
Wysokość przy najniższym sposobie montażu
61 mm
Connectable conductor cross section solid-core
35 ... 120 mm²
Closing plate required
No
Length
88 mm
Mounting method
DIN rail (top hat rail) 35 mm
Type of electrical connection 1
Screw connection
Rated current In
269 A
Operating temperature
-25 ... 125 °C
Number of clamp positions per level
2
Inflammability class of insulation material according to with UL94
V0
Connectable conductor cross section fine-strand without cable end sleeve
35 ... 120 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
35 ... 120 mm²
Internally connected stages
No
