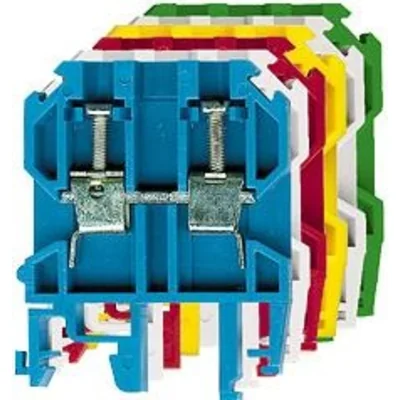

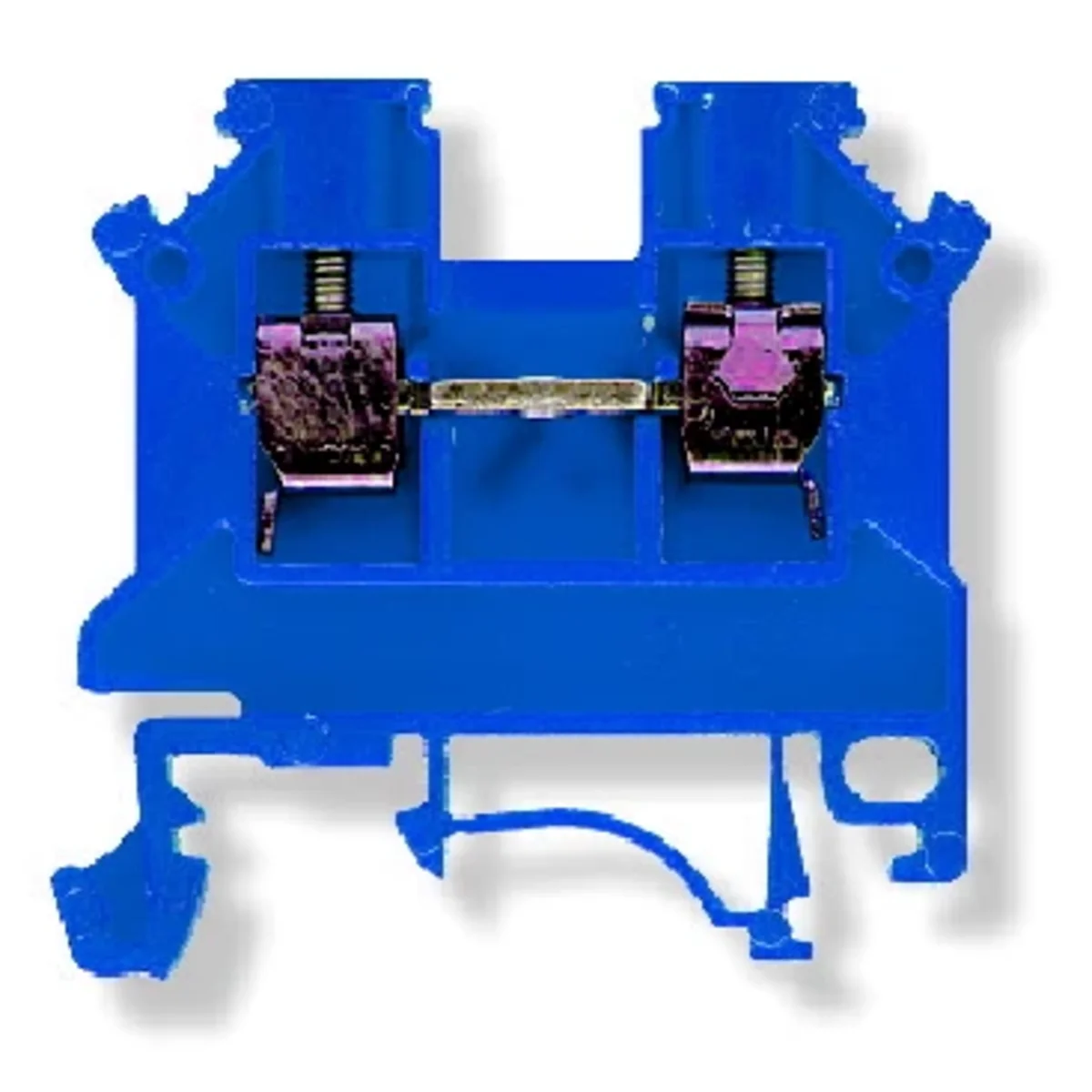

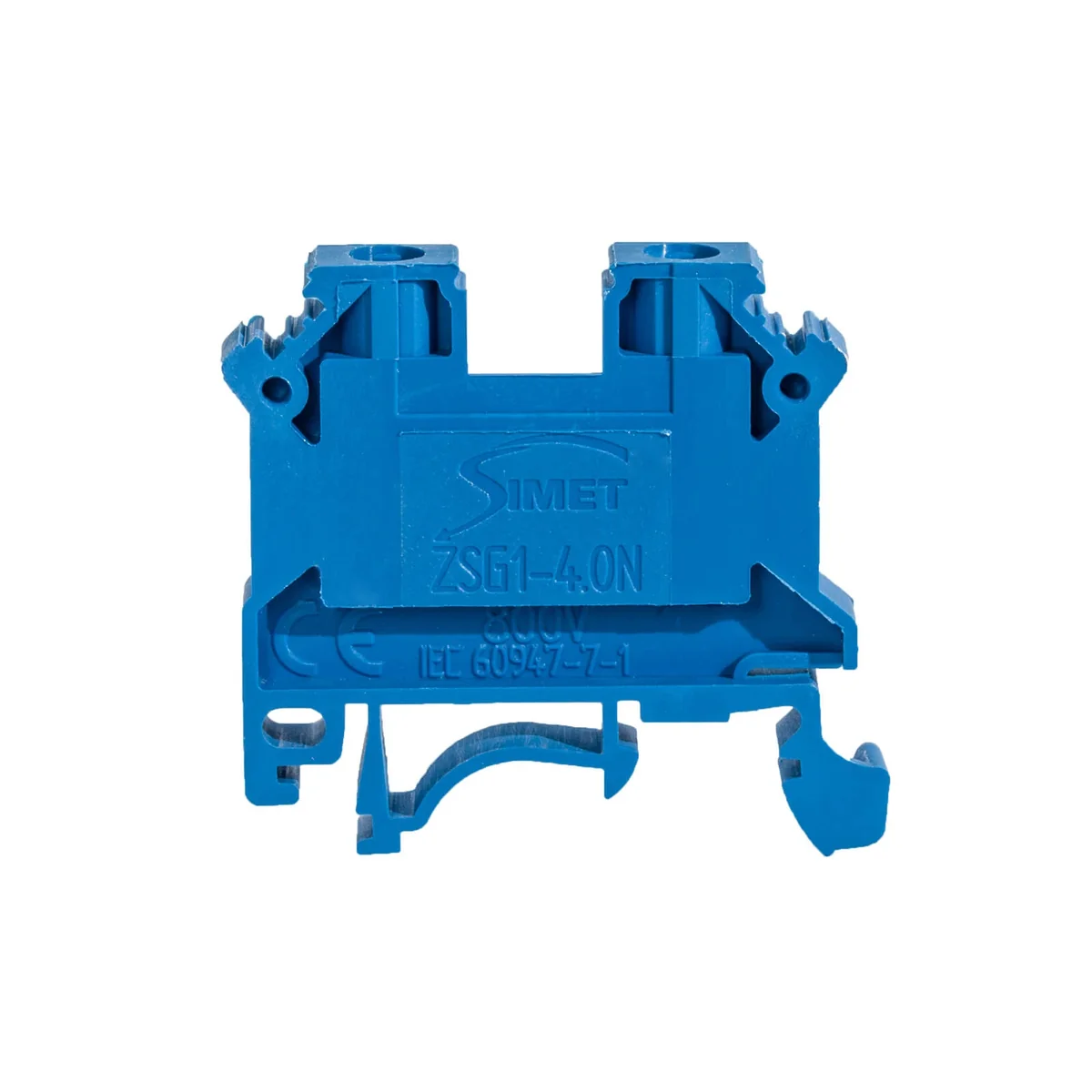

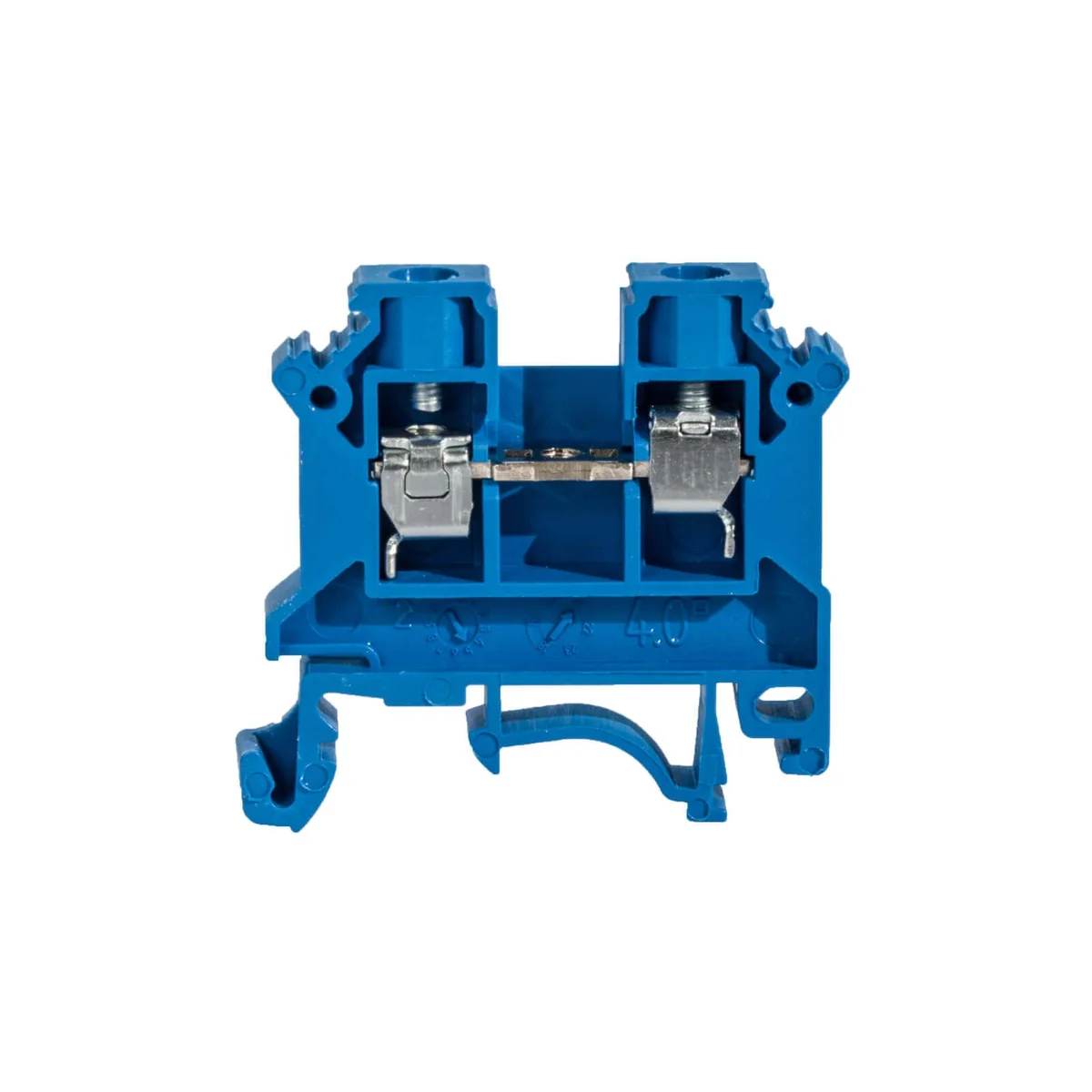

Threaded rail connector ZSG1-4.0n, 4.0 mm2, TS 32, 35, 1 track, blue color. 11321313

Índice local:
TES042SIME
Número de catálogo:
11321313
Código EAN:
5907813212468
Fabricante: SIMET
Length [mm]: 40
Number of tracks: 1
Color: Blue
Precio:
5,84 zł
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 4 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Threaded terminal block ZSG1- 4.0n, 4, 0 mm2, TS 32, 35, 1 track, blue

Datos técnicos

  • Length [mm]
    40
  • Color
    Blue
  • Nominal cross-section [mm²]
    4
  • Screw
    M3
  • Height [mm]
    4.5
  • Number of connectors
    1
  • Number of tracks
    1
  • Rated current [A]
    32
  • Width [mm]
    6.5
  • Libra
    10.9
  • Accurate color
    Blue
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    6.5 mm
  • Wysokość przy najniższym sposobie montażu
    34 mm
  • Connectable conductor cross section solid-core
    0,5 ... 6 mm²
  • Closing plate required
    Yes
  • Length
    44 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    32 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 4 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    No

Detalles del fabricante

  • Fabricante
    SIMET S.A.
  • Dirección
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska

Empaquetado a granel

una especie de paquete Pakiet
Cantidad 1 uds.
Ancho (m) 0,007
Longitud (m) 0,034
