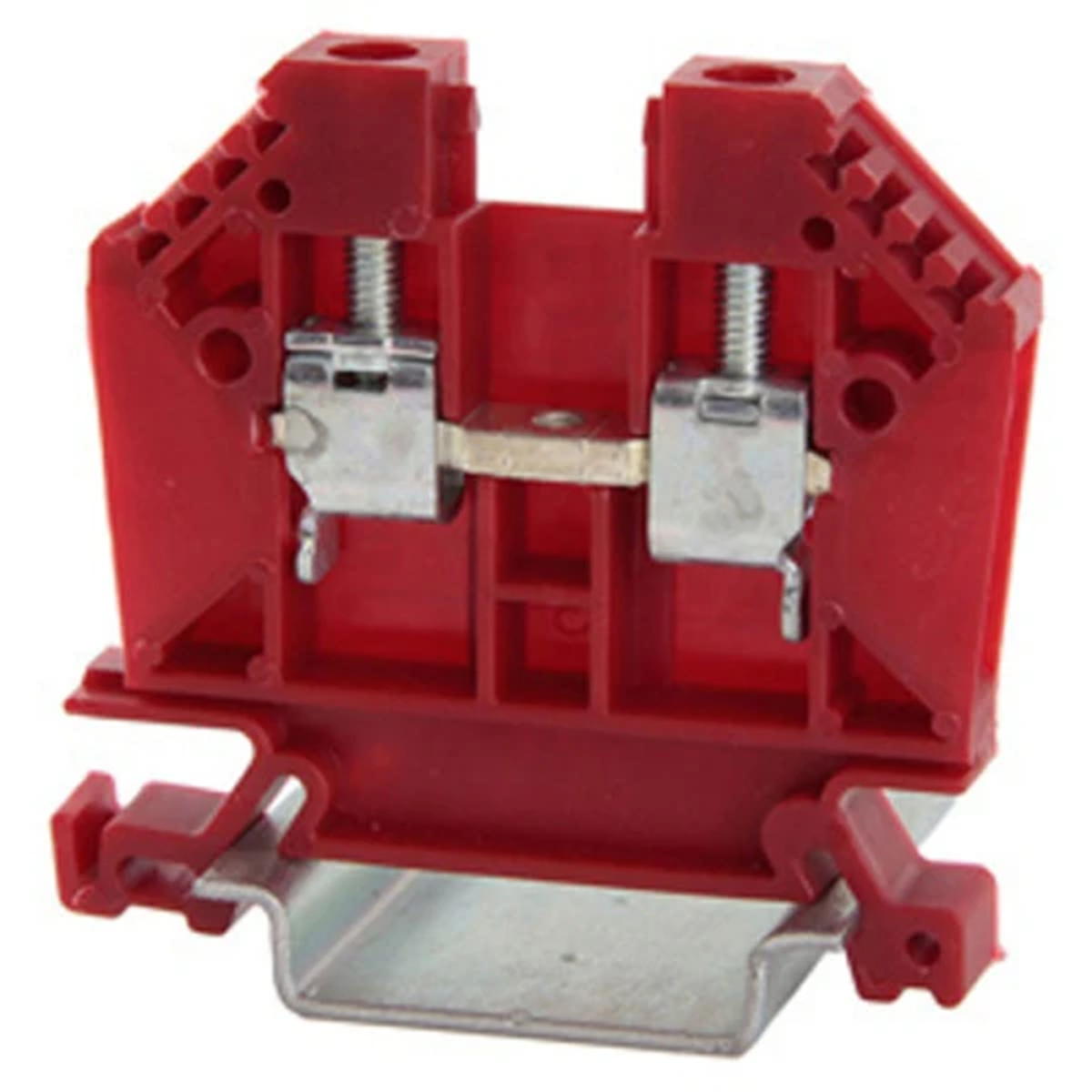

Threaded rail connector ZSG (ZUG) 10mm2 red 43402RD

local index:
TES034BMPO
Catalog No:
43402RD
EAN code:
5901592106826
Manufacturer: EM GROUP
Length [mm]: 50
Color: Gray
Material: Thermoplastic
Price:
1,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Gray threaded rail connector, which is used in electrical installations to securely connect wires in electrical and mechanical terms. It is used for wire and stranded wires. It is used for mounting on a 35 mm DIN rail. The housing of this type of threaded rail terminal blocks is made of plastic, such as polyamide. Such material is often used in electrical engineering due to its properties, such as fire resistance and strength protecting against mechanical damage. The connectors also have clamps, the design of which minimizes the possibility of loosening the wires. Fittings from the wide range of EM Group products ensure the effectiveness of the installation work. Its products are characterized by the quality of workmanship and materials used.

Product series: EURO
Explosion-proof version 'EEx e': Yes
Required closing plate: Yes
Connection cable cross-section [mm²] from: 1.5
Cross-section of the connected stranded cable [mm²] to: 10
Cross-section of the connected stranded wire without ferrule [mm²] from: 1.5
Cross-section of the connected stranded wire without ferrule terminal [mm²] to: 16
Connection position: Side
Internal floors bridged: No
Number of terminals per floor: 2
Number of levels: 1
Cross section solid conductor [mm²] from: 1.5
Cross-section of solid conductor to be connected [mm²] to: 16
Cross-section of stranded conductor with ferrule [mm²] from: 0.5
Cross-section of connected conductor with ferrule [mm²] up to: 10
Type of electrical connection 1: Screw connection

Technical data

  • Length [mm]
    50
  • Material
    Thermoplastic
  • Rated voltage [V]
    800
  • Height [mm]
    44
  • Color
    Gray
  • Installation
    DIN rail
  • Width [mm]
    9
