SIMET

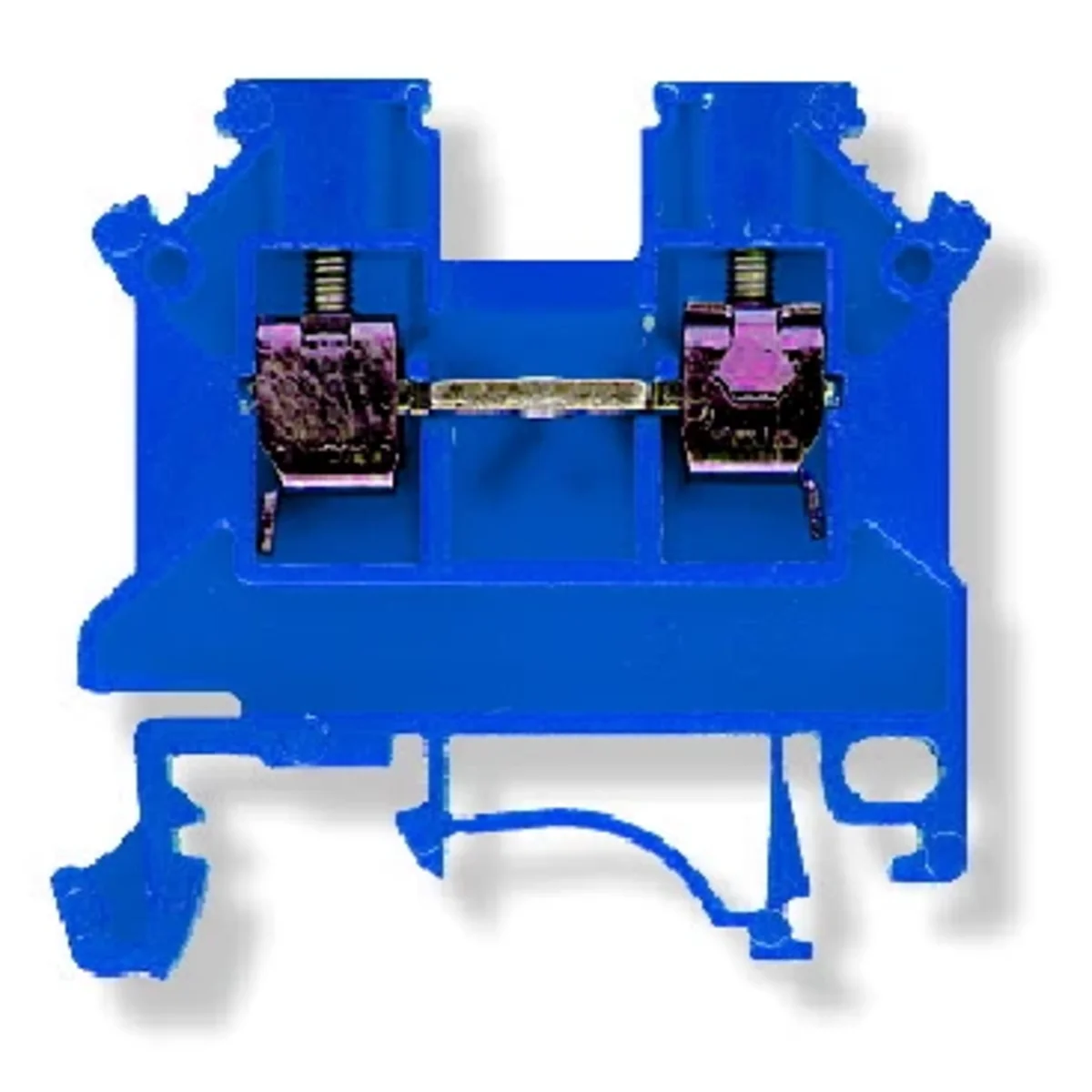

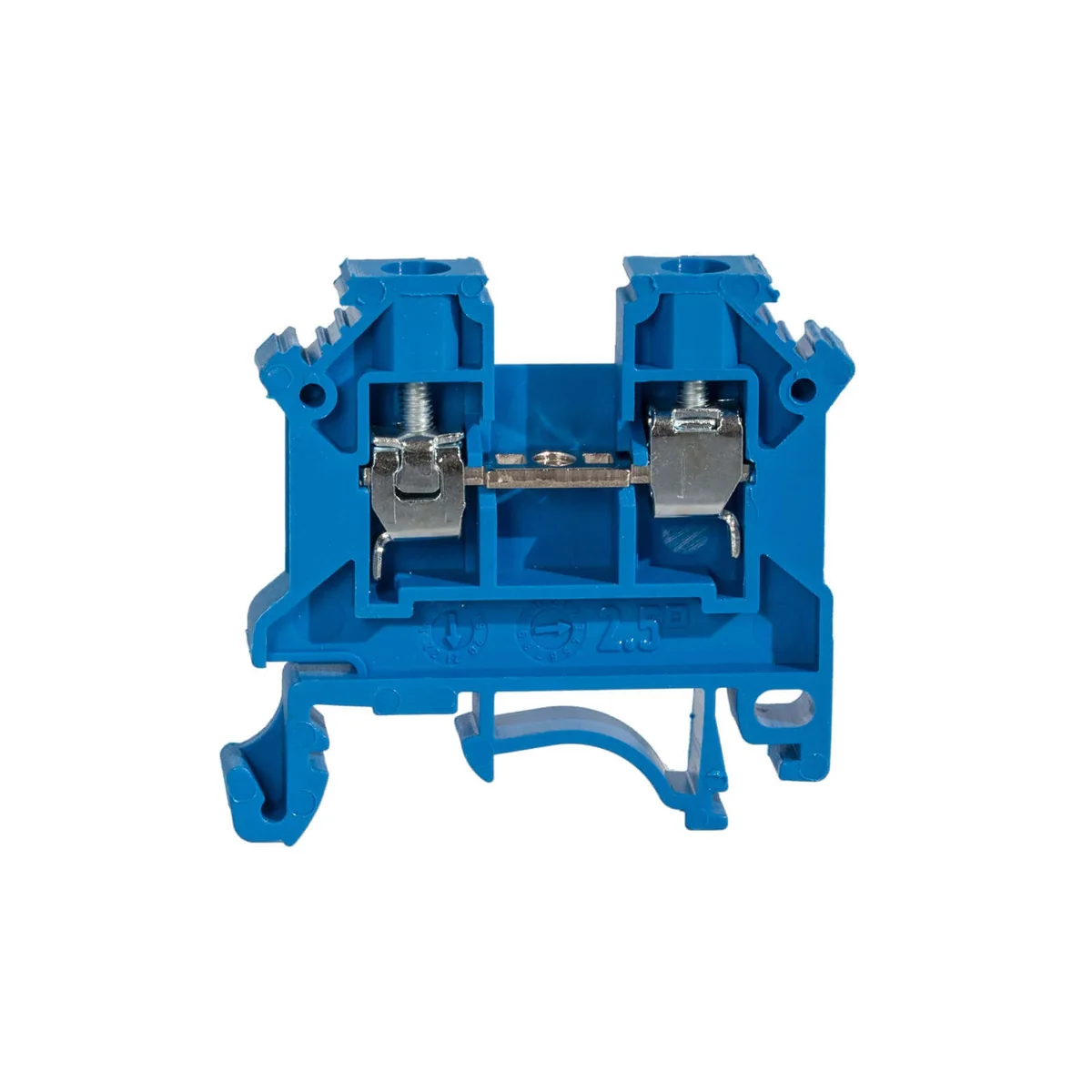

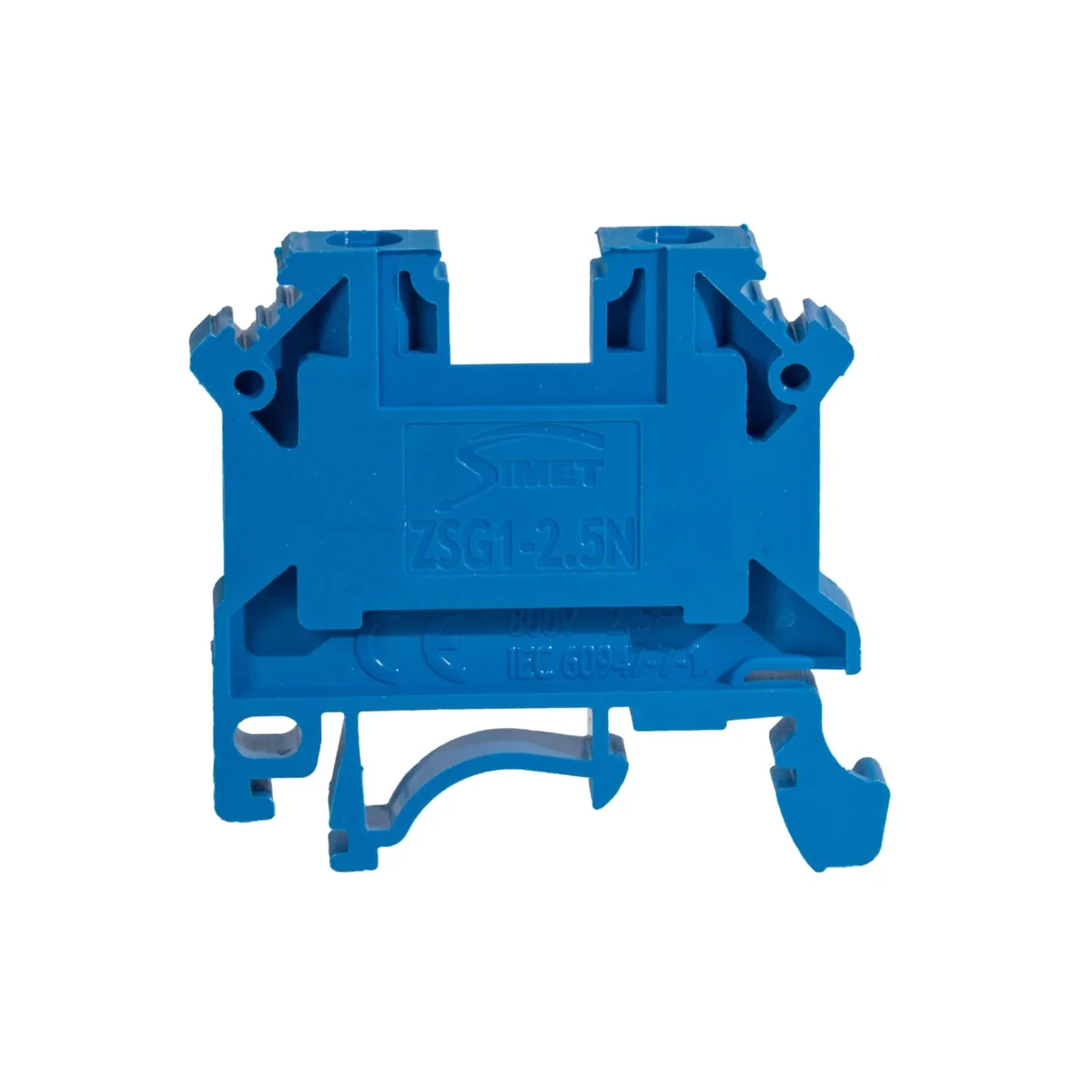

Threaded rail connector Simet ZSG1-2.5Ns blue 50pcs. 11221313

local index:
TES013SIME
Catalog No:
11221313
EAN code:
5907813212413
Price:
45,15 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Simet ZSG1-2.5Ns threaded rail connector, blue

Technical data

  • Number of tracks
    1
  • Rated voltage [V]
    800
  • Width [mm]
    34
  • Libra
    6.6
  • cross section [mm²]
    2.5
  • Color
    Blue
  • Rated current [A]
    24
  • Pieces in the package
    50
  • Height [mm]
    44
  • Number of connectors
    1

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Blue
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    6 mm
  • Wysokość przy najniższym sposobie montażu
    34 mm
  • Connectable conductor cross section solid-core
    0,5 ... 4 mm²
  • Closing plate required
    yes
  • Length
    44 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    24 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 2,5 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    no
