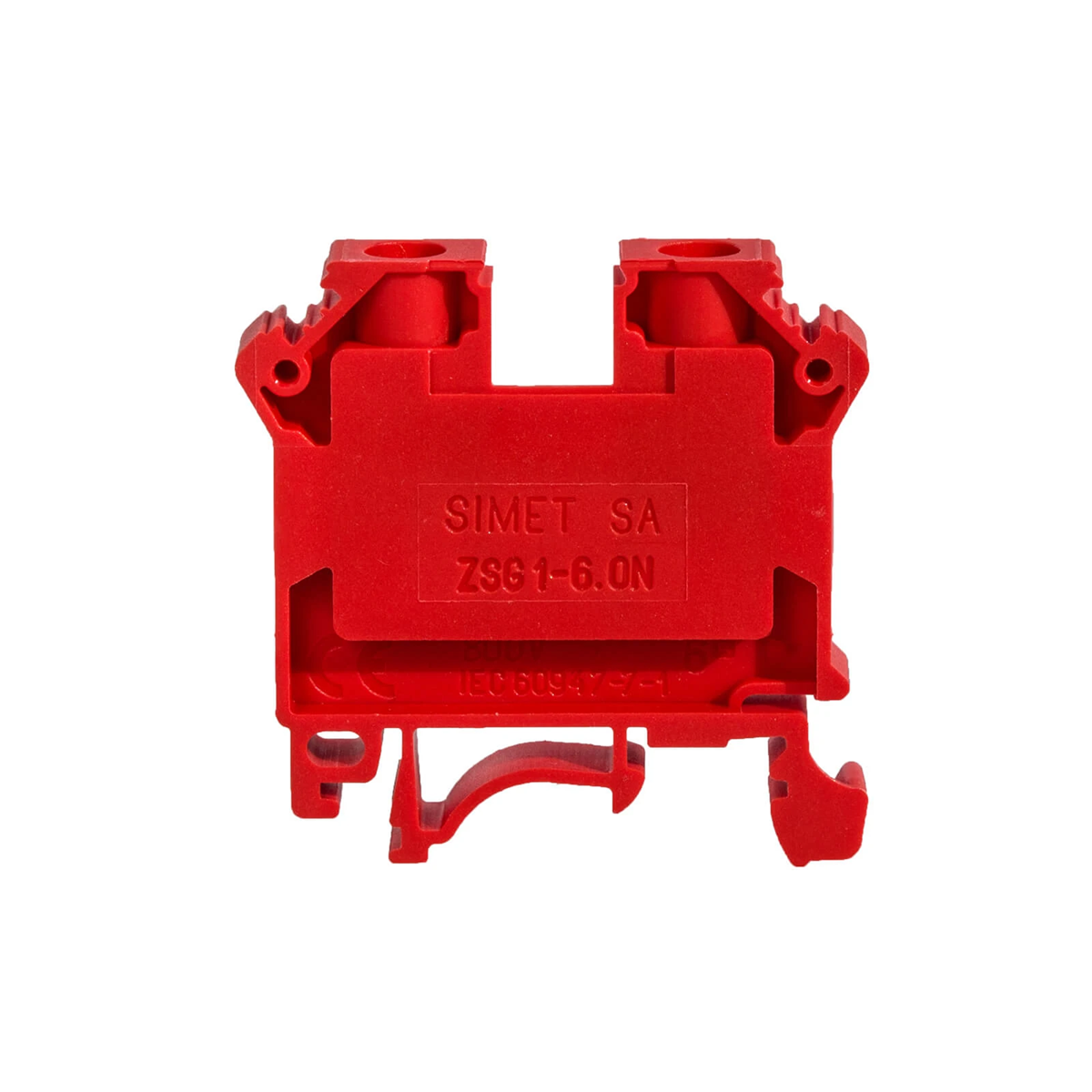

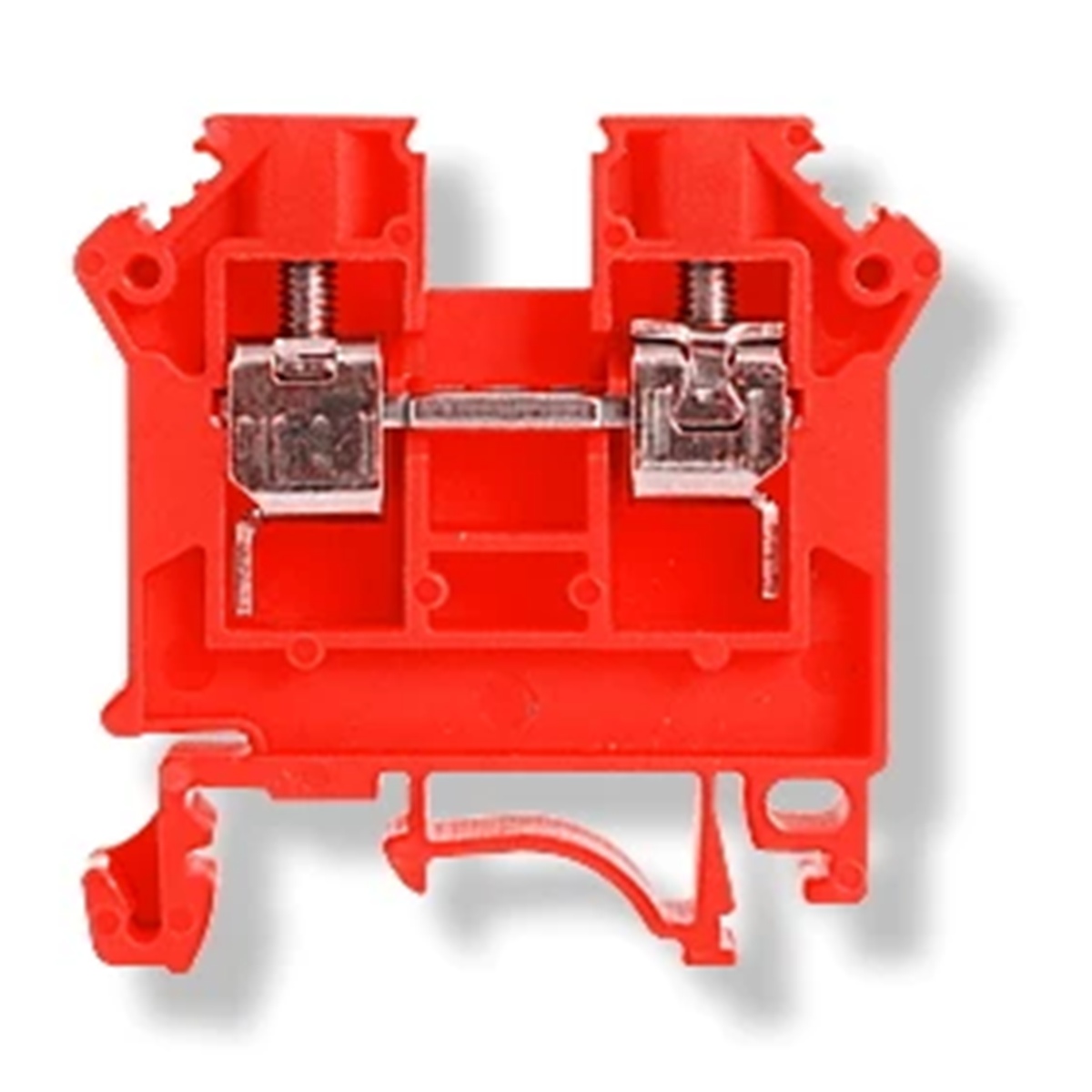

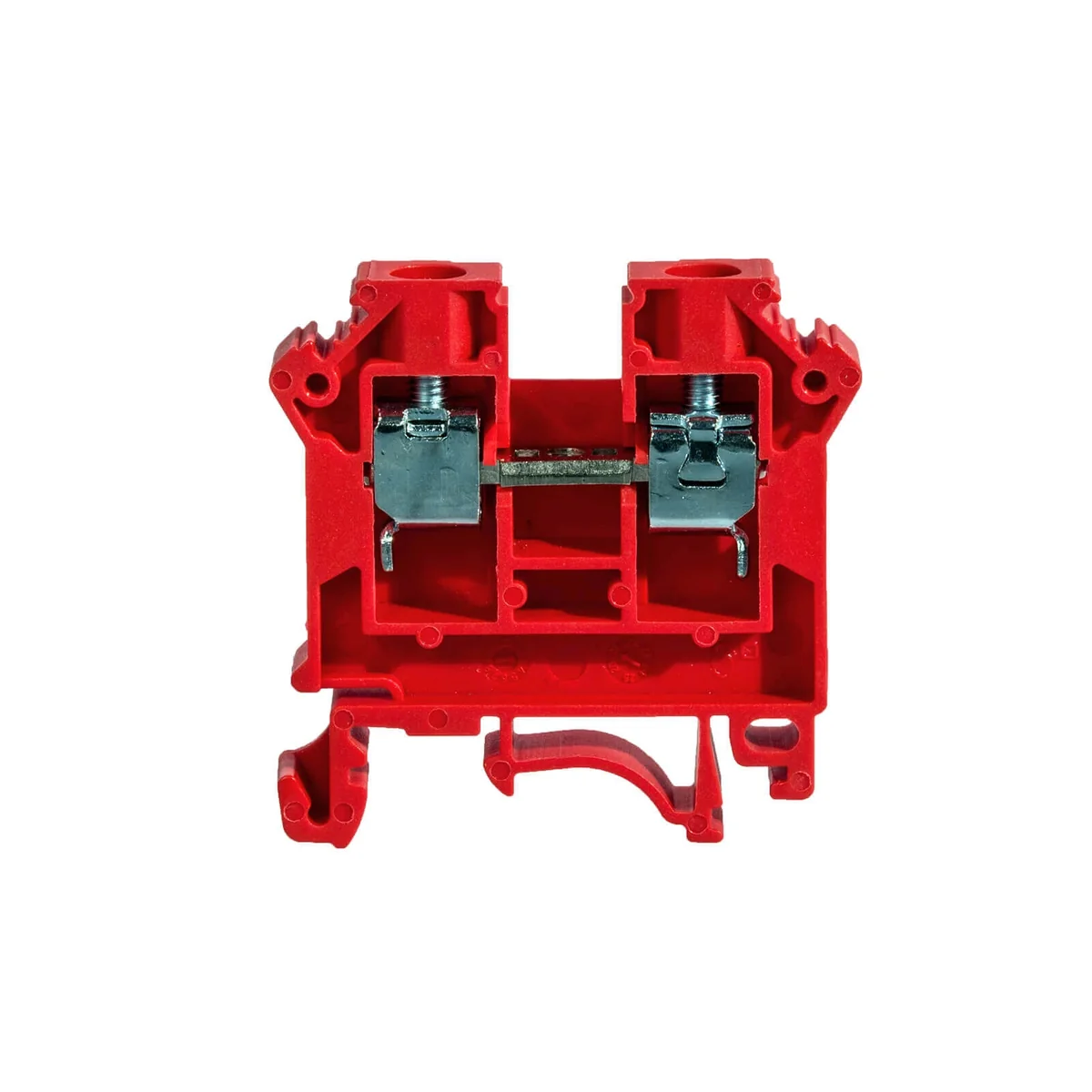

Threaded rail connector, NOWA series, 6.0 mm2, TS 35, 1 way. 11421311
local index:
TES047SIME
Catalog No:
11421311
EAN code:
5907813212550
Price:
60,45 €
gross / pkg.
(including VAT 23%)
1,21 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Screw terminal block, NEW series, 6.0 mm2, TS 35, 1 track
Technical data
-
Number of tracks1
-
Rated voltage [V]800
-
Width [mm]39.5
-
Libra13
-
cross section [mm²]6
-
Number of connectors1
-
ColorRed
-
Rated current [A]41
-
Pieces in the package50
-
Height [mm]48
-
Accurate colorRed
-
PKWIU27.33.13.0
Other technical data
-
Rated voltage800 V
-
Explosion-tested version 'Ex e'No
-
ColourRed
-
Type of electrical connection 2Screw connection
-
Connection positionSideways
-
Number of levels1
-
Material insulation bodyThermoplastic
-
Width/grid dimension8 mm
-
Wysokość przy najniższym sposobie montażu39.5 mm
-
Connectable conductor cross section solid-core0,5 ... 10 mm²
-
Closing plate requiredYes
-
Length48 mm
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Type of electrical connection 1Screw connection
-
Rated current In41 A
-
Operating temperature-25 ... 125 °C
-
Number of clamp positions per level2
-
Inflammability class of insulation material according to with UL94V0
-
Connectable conductor cross section fine-strand without cable end sleeve0,5 ... 6 mm²
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired0 ... 0 mm²
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33
-
Phone number
-
E-mail
-
Tax identification number6112112204
-
GLN5909000603295
