el12 Connecting cables and wires Connectors Rail connectors Threaded rail connector, NEW series, 70 mm2, TS 35, 1 track, 5 pieces.

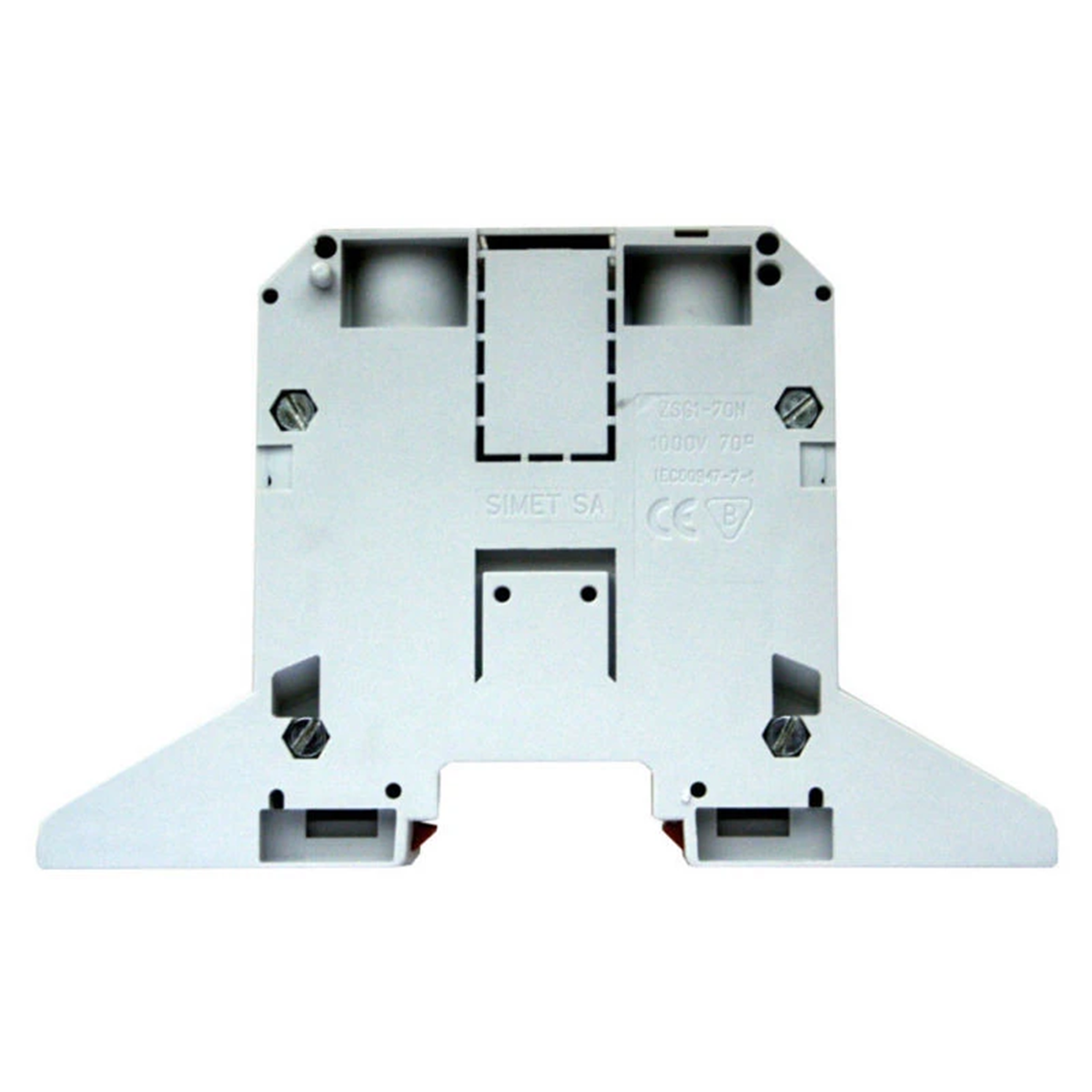

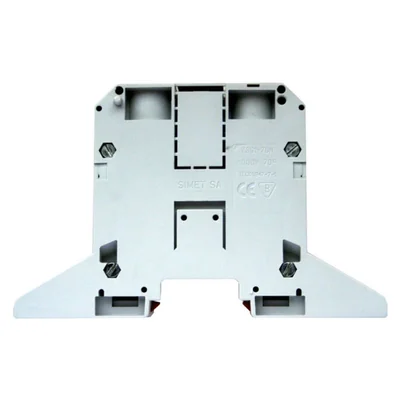

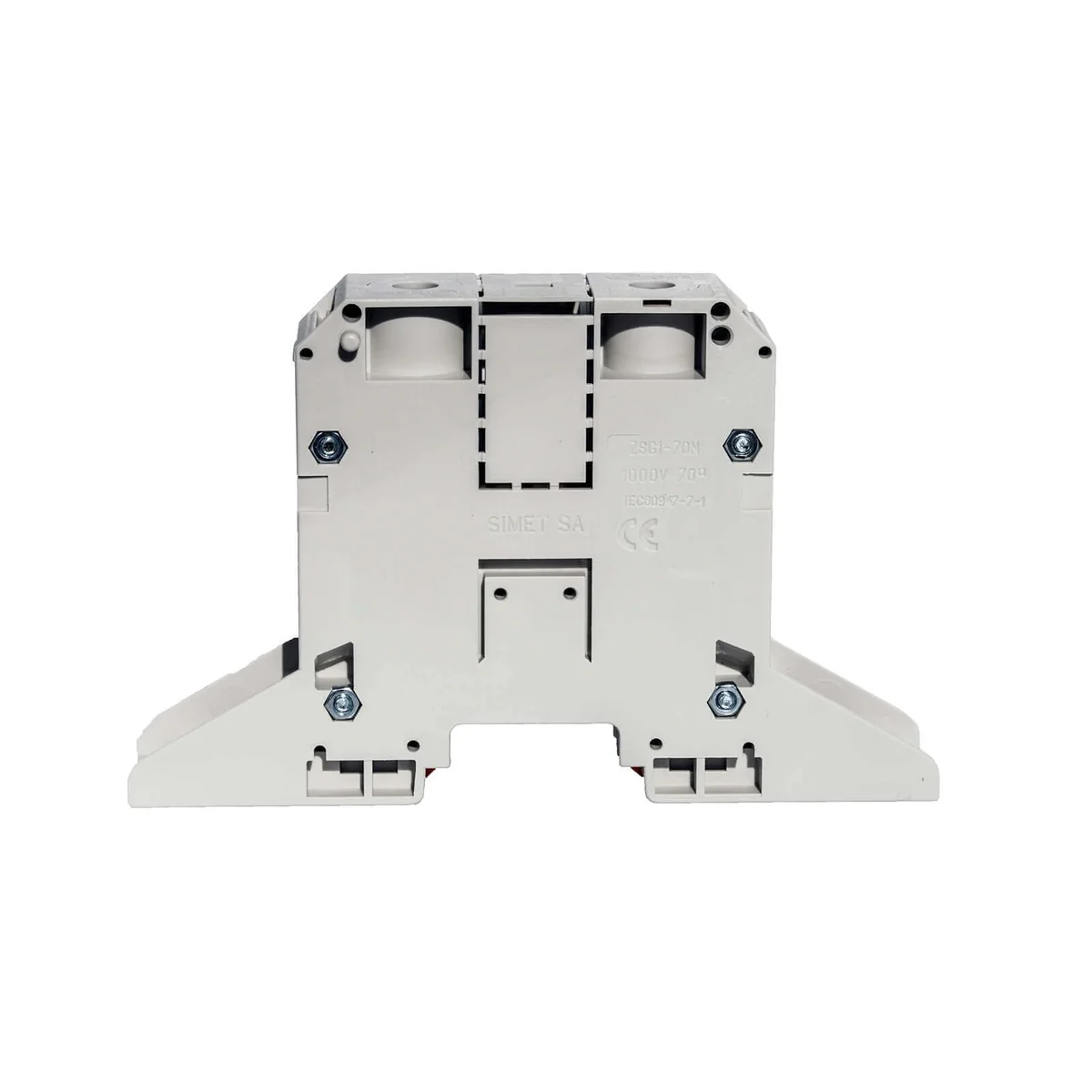

Threaded rail connector, NEW series, 70 mm2, TS 35, 1 track, 5 pieces.

Click on the photo to enlarge

Threaded rail connector, NEW series, 70 mm2, TS 35, 1 track, 5 pieces.
SIMET

Threaded rail connector, NEW series, 70 mm2, TS 35, 1 track, 5 pieces. 11951312

local index:
TES005SIME
Catalog No:
11951312
EAN code:
5907813212857
Price:
51,18 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Threaded rail terminal block, NEW series, 70 mm2, TS 35, 1 track

Print the product sheet Report an error

Technical data

  • Color
    Gray
  • Nominal cross-section [mm²]
    70
  • Libra
    179
  • Rated current [A]
    192
  • Pieces in the package
    5

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    10 ... 70 mm²
  • Connectable conductor cross section solid-core
    10 ... 70 mm²
  • Rated current In
    269 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    78 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Blue
  • Connectable conductor cross section fine-strand with cable end sleeve
    10 ... 70 mm²
  • Connectable conductor cross section multi-wired
    10 ... 70 mm²
  • Rated voltage
    1000 V
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 125 °C
  • Width/grid dimension
    24 mm
  • Length
    132 mm
  • Closing plate required
    no
  • Internally connected stages
    no
