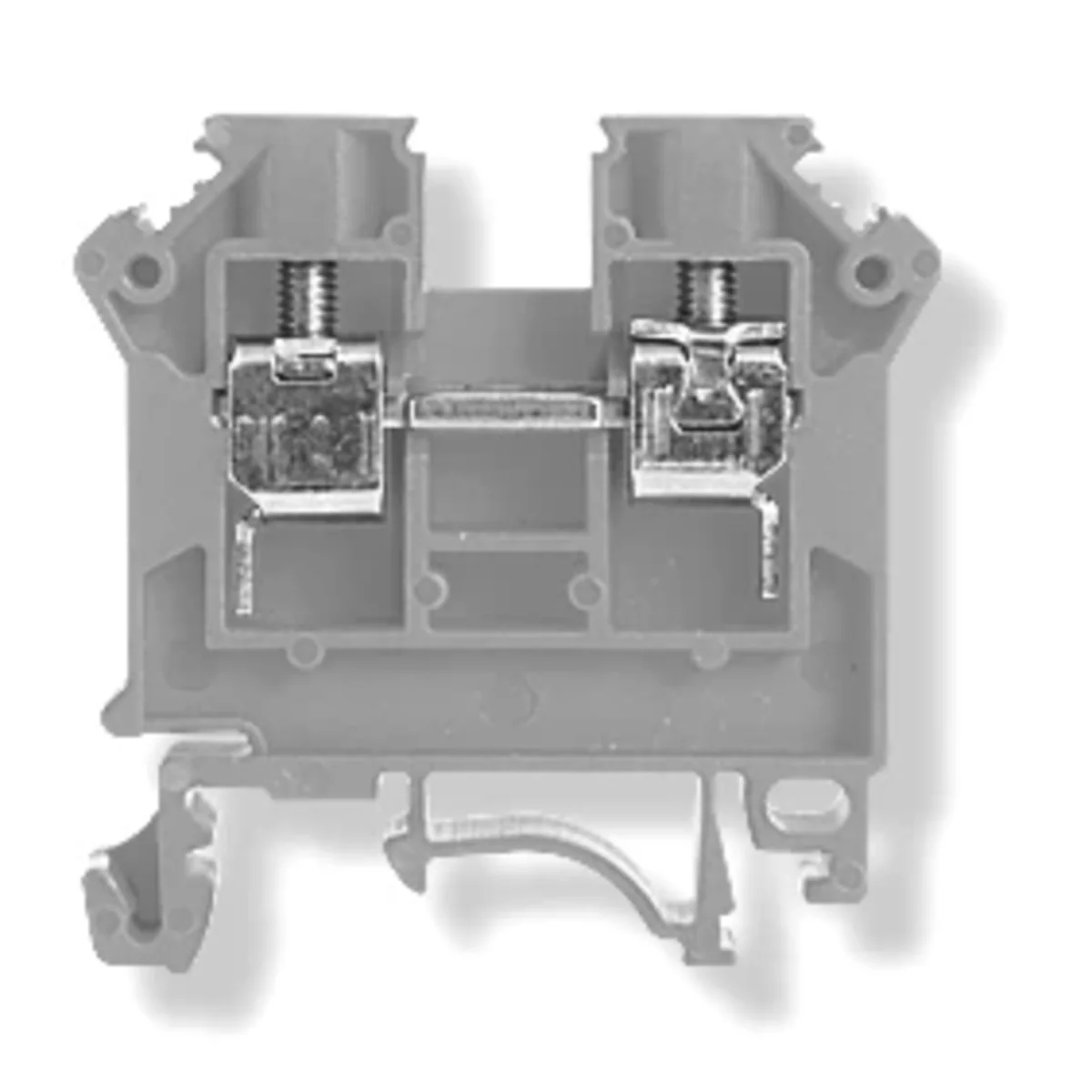

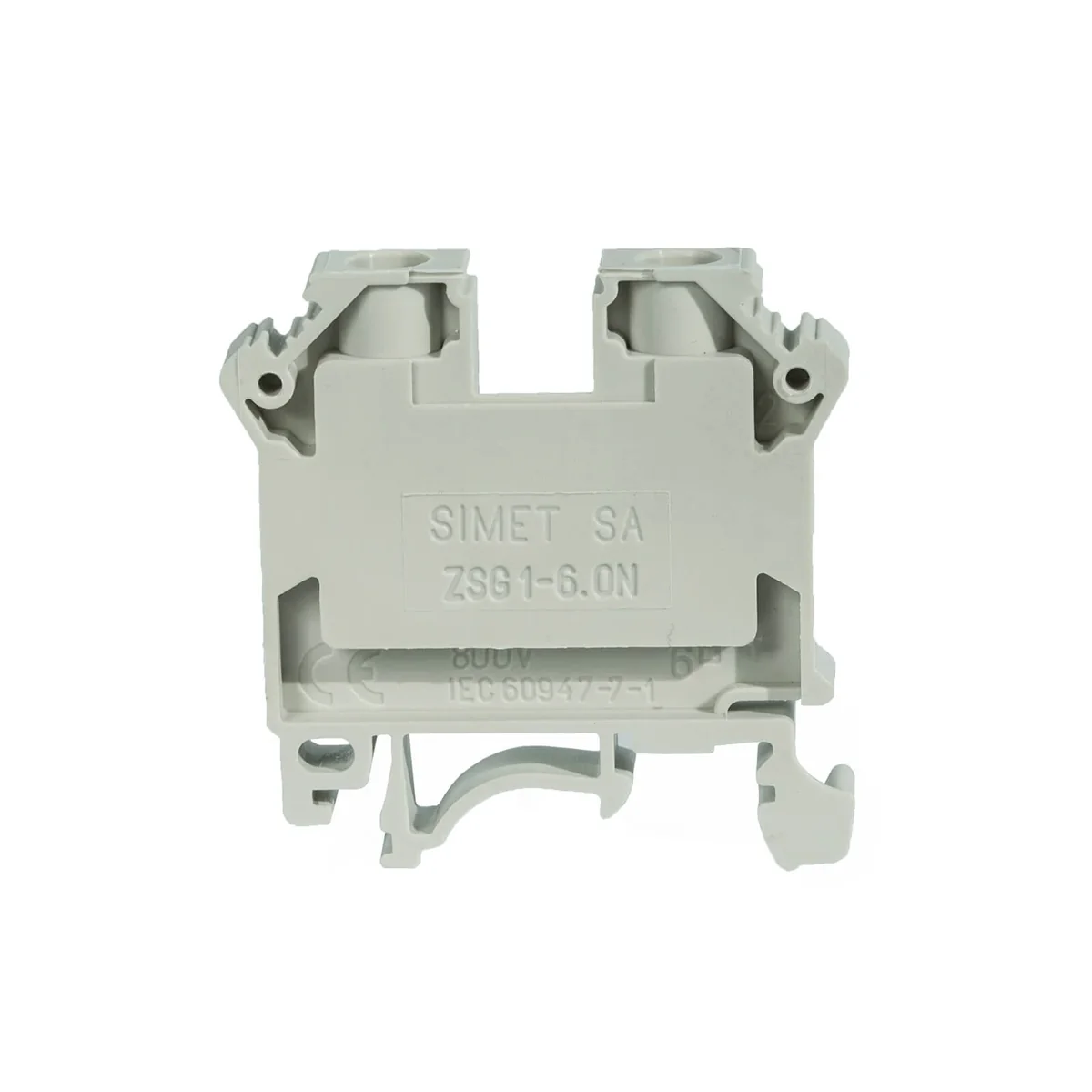

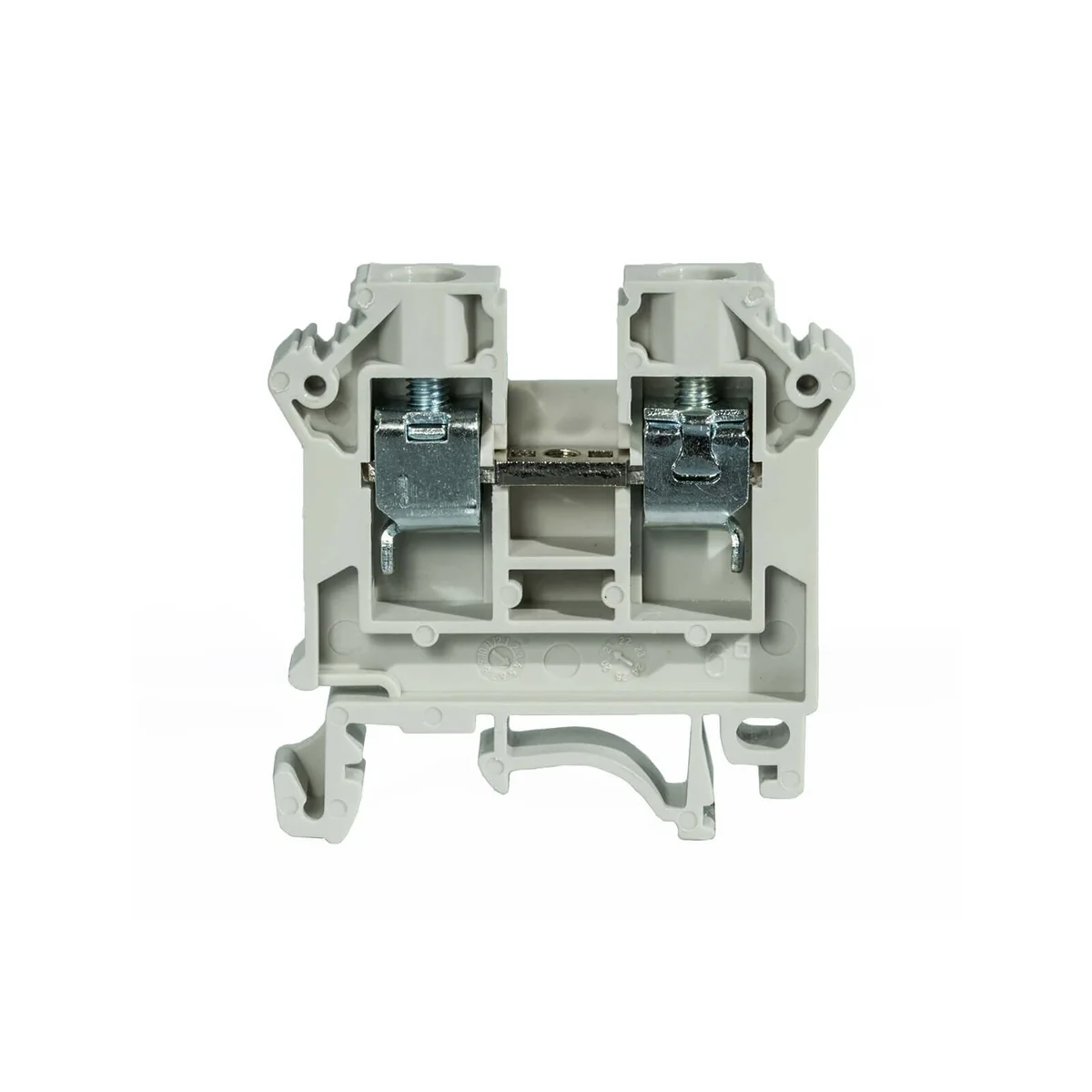

Threaded rail connector, NEW series, 6.0 mm2, TS 35, 1 track, 50 pieces. 11421312

Lokaler Index:
TES048SIME
Katalognummer:
11421312
EAN-Code:
5907813212567
Hersteller: SIMET
Number of tracks: 1
Color: Gray
Rated voltage [V]: 800
Preis:
70,11 €
gross / pack
(inklusive MwSt 23%)
1,40 € gross/stk.
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge pack
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Threaded rail terminal block, NEW series, 6.0 mm2, TS 35, 1 track

Technische Daten

  • Number of tracks
    1
  • Rated voltage [V]
    800
  • Width [mm]
    39.5
  • Libra
    13
  • cross section [mm²]
    6
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Rated current [A]
    41
  • Pieces in the package
    50
  • Height [mm]
    48
  • Number of connectors
    1

Weitere technische Daten

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    8 mm
  • Wysokość przy najniższym sposobie montażu
    39.5 mm
  • Connectable conductor cross section solid-core
    0,5 ... 10 mm²
  • Closing plate required
    Yes
  • Length
    48 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    41 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 6 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    No

Hersteller-Details

  • Hersteller
    SIMET S.A.
  • Adresse
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska
