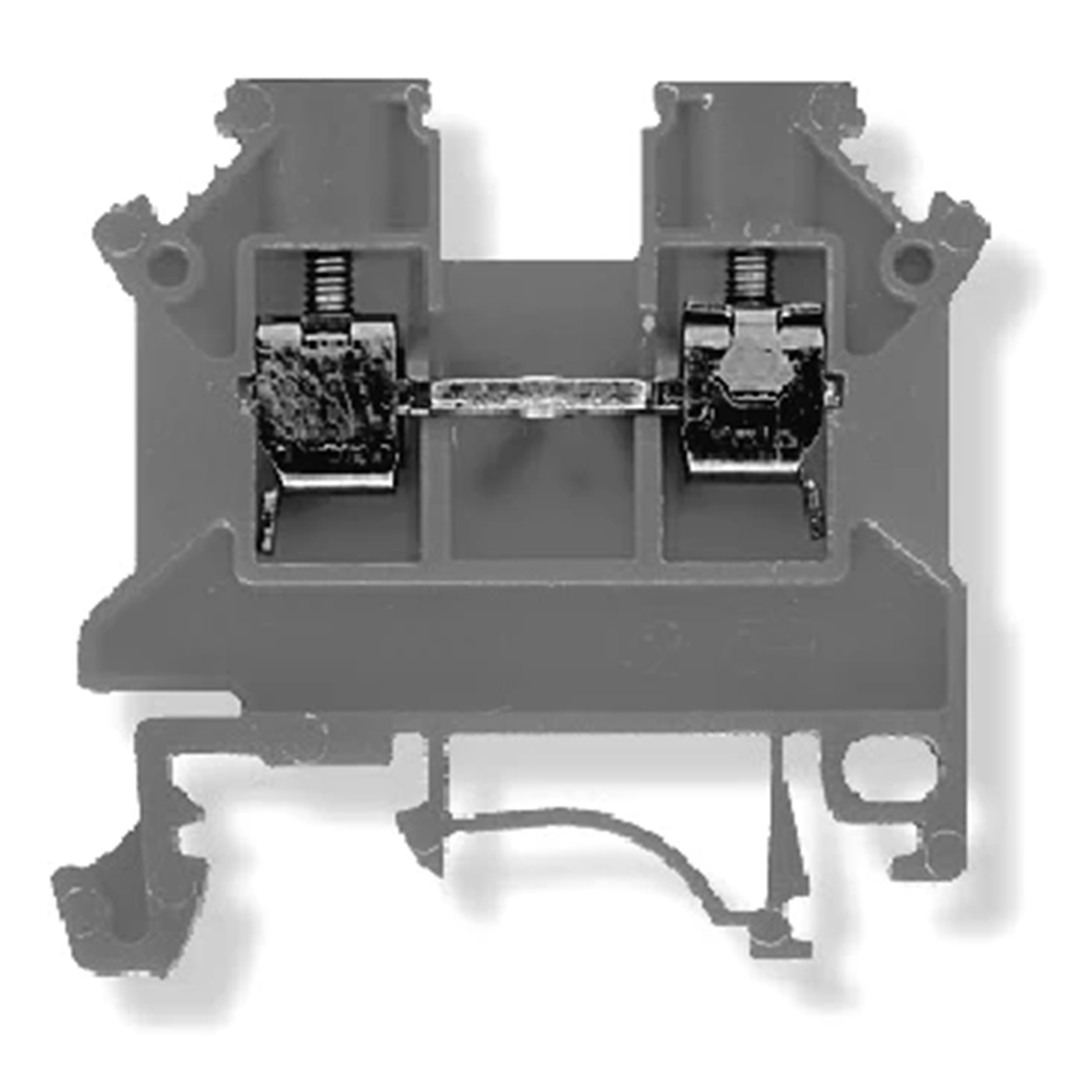

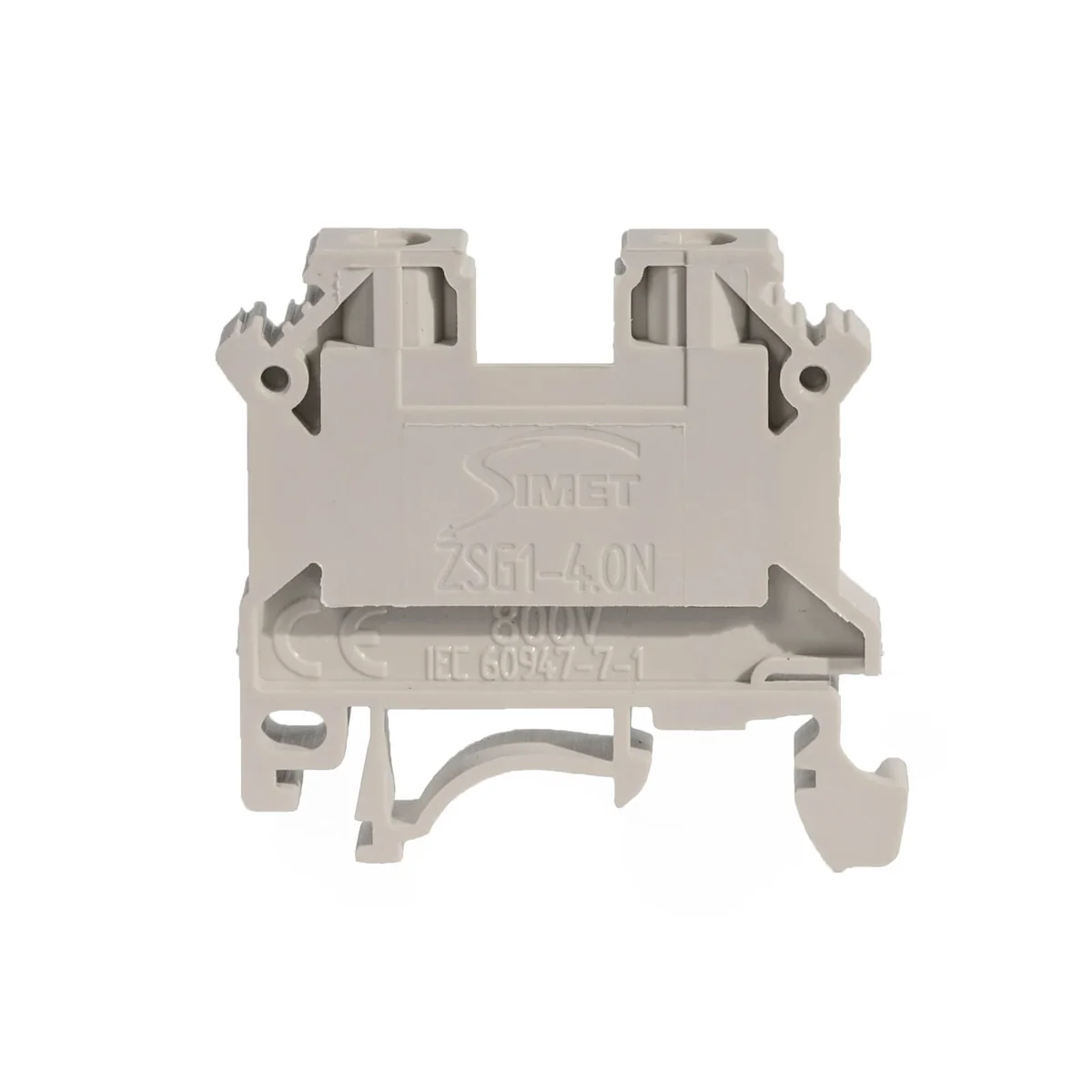

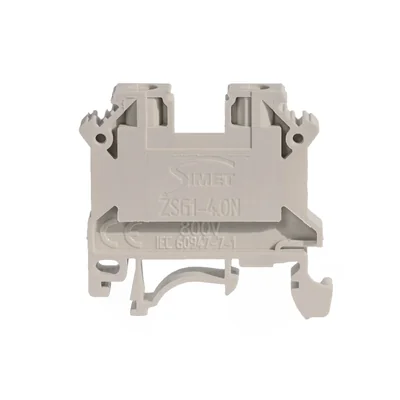

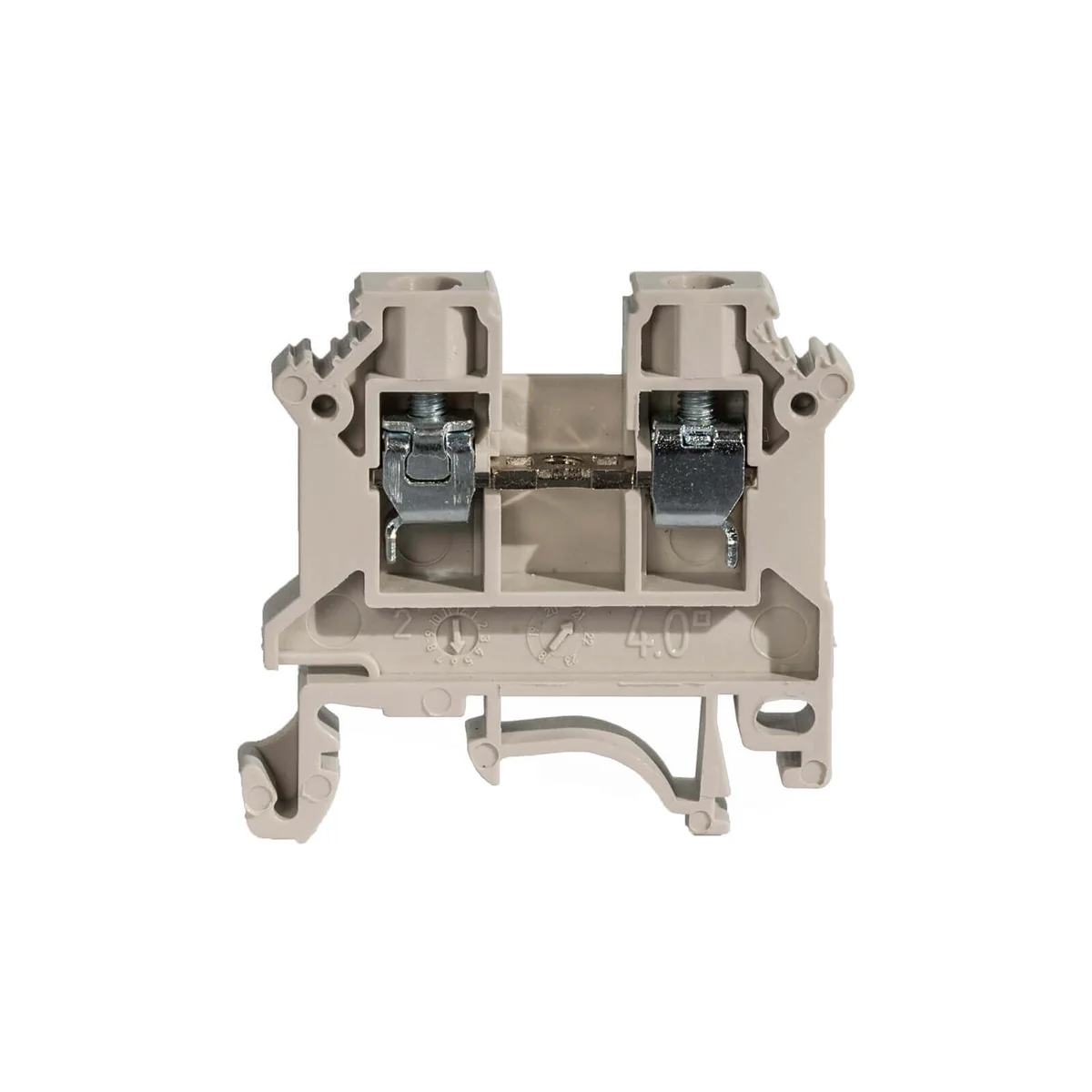

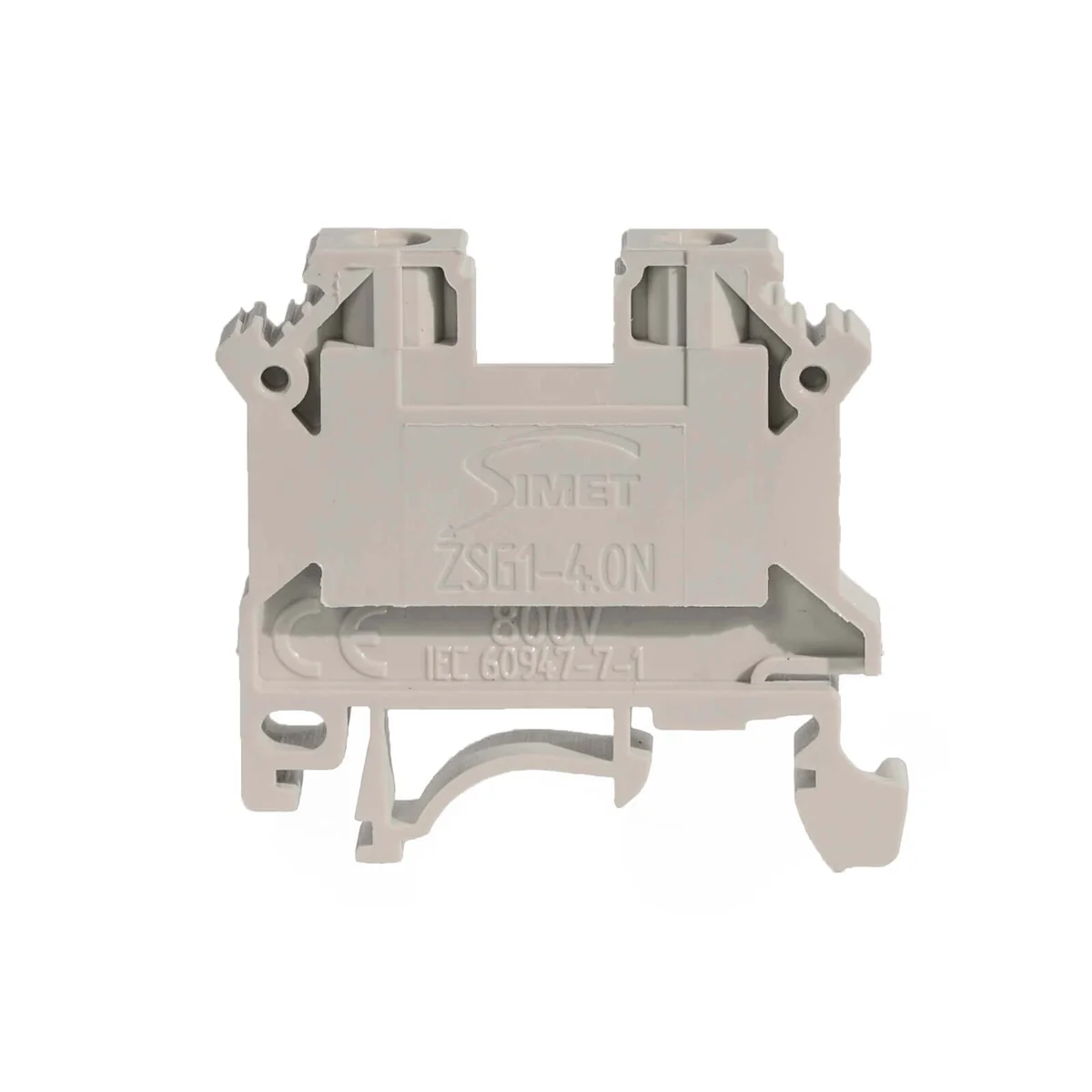

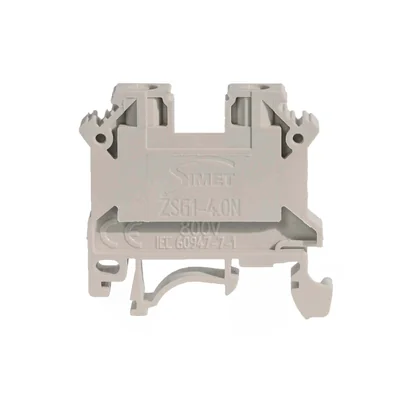

Threaded rail connector NEW series 4 mm2 TS 35 1 track 50 pcs. 11321312

local index:
TEG747SIME
Catalog No:
11321312
EAN code:
5907813212451
Manufacturer: SIMET
Color: Gray
Rated current [A]: 32
Nominal cross-section [mm²]: 4
Price:
51,82 €
gross / pkg.
(including VAT 23%)
1,04 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Threaded rail connector, NEW series, 4 mm2, TS 32,35, 1 track

Technical data

  • Color
    Gray
  • Nominal cross-section [mm²]
    4
  • Libra
    7.5
  • Rated current [A]
    32
  • Pieces in the package
    50
  • PKWIU
    27.33.13.0

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    6.5 mm
  • Wysokość przy najniższym sposobie montażu
    34 mm
  • Connectable conductor cross section solid-core
    0,5 ... 6 mm²
  • Closing plate required
    Yes
  • Length
    44 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    32 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 4 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    No
