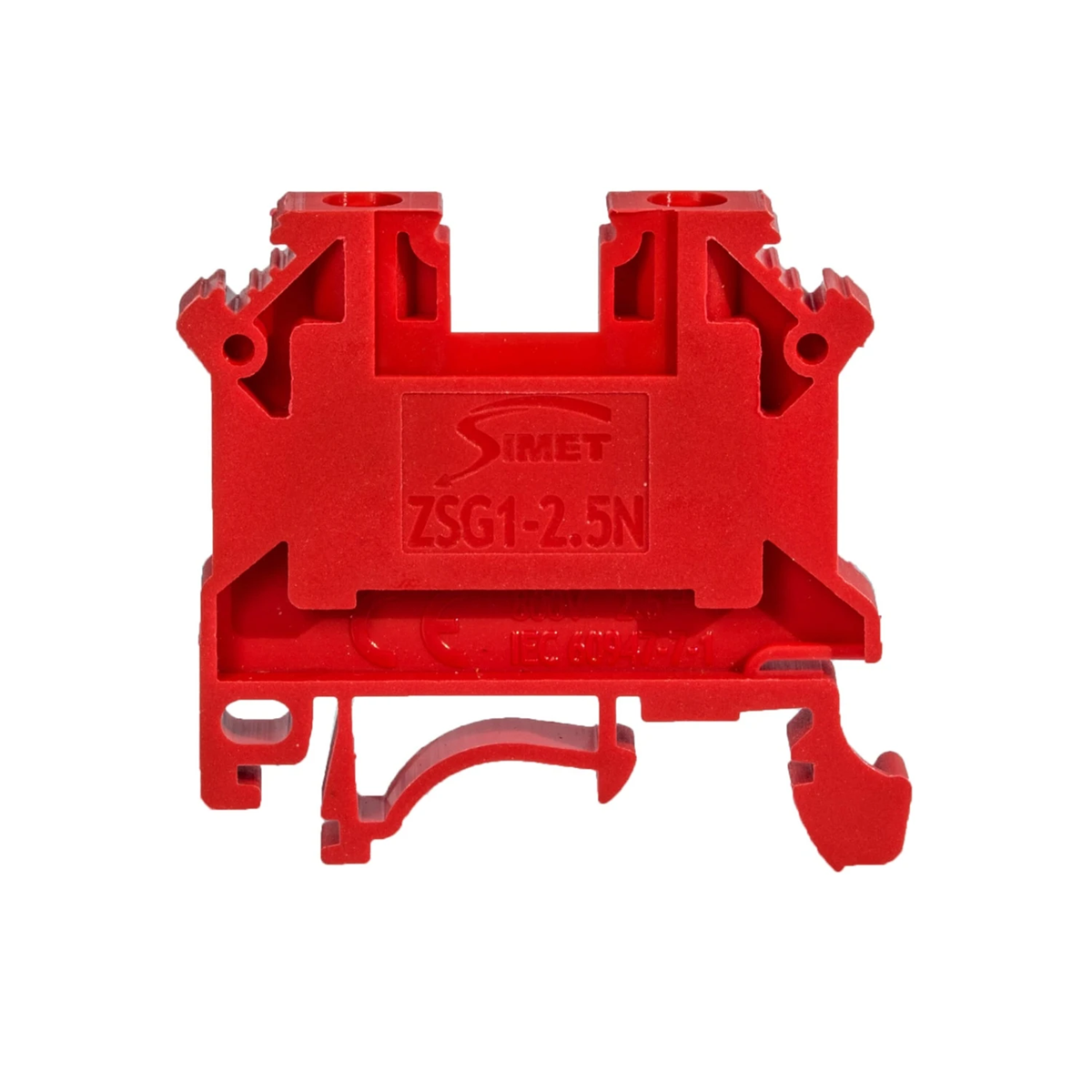

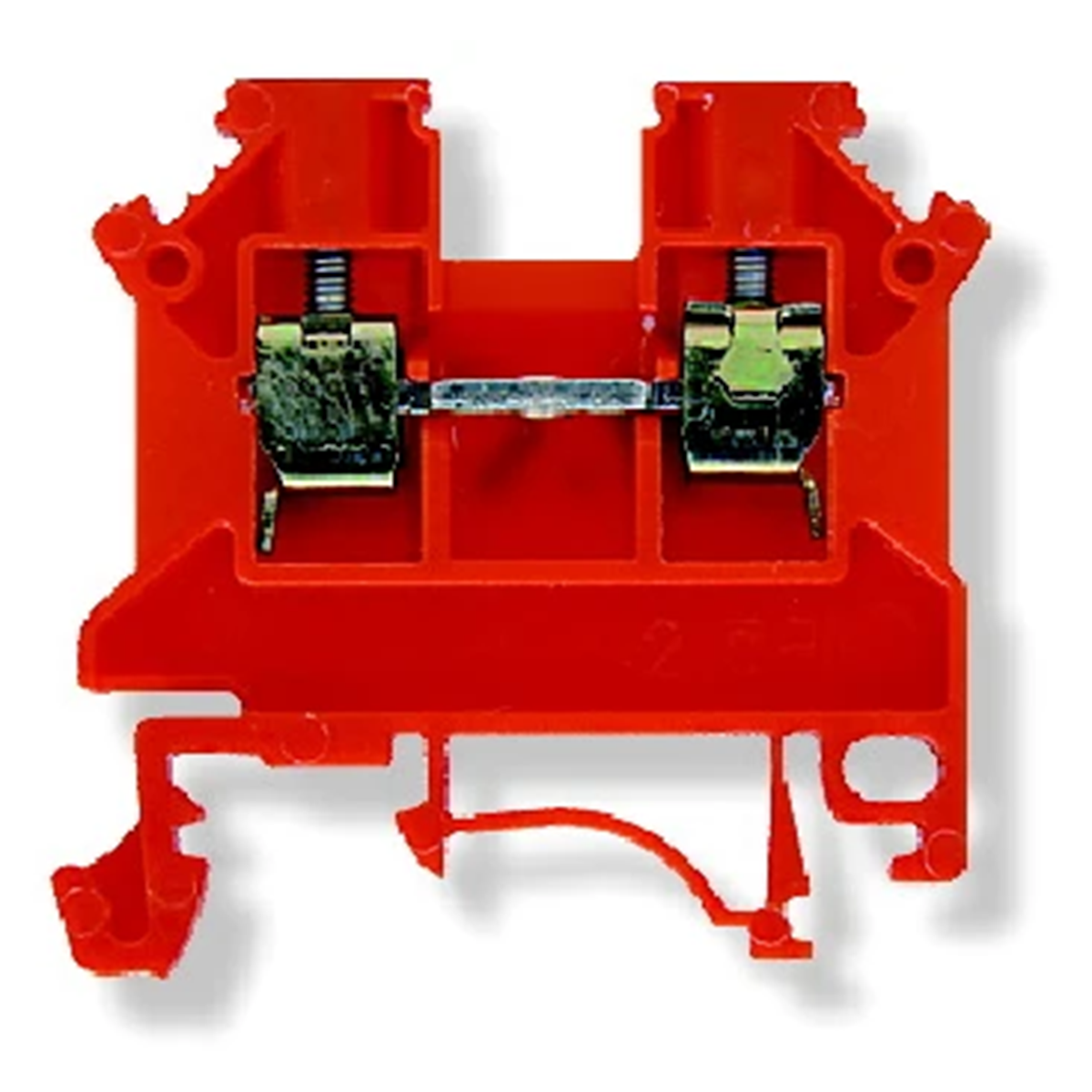

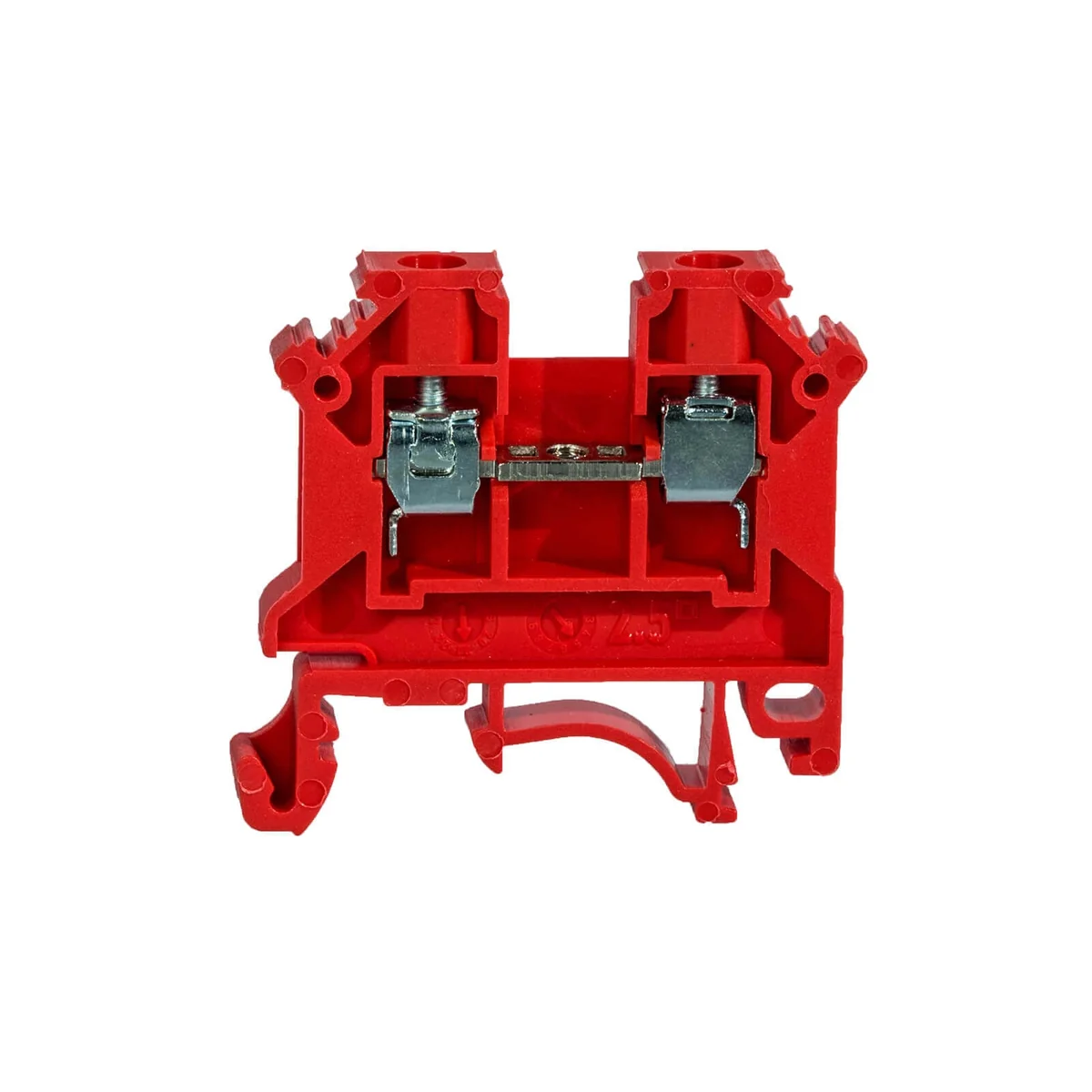

Threaded rail connector NEW series 2.5 mm2 TS 35 1 track 50 pcs. 11221311

Indeks lokalny:
TEG015SIME
Nr katalogowy:
11221311
Kod EAN:
5907813208461
Producent: SIMET
Color: Red
Rated current [A]: 24
Nominal cross-section [mm²]: 2.5
Cena:
58,65 €
gross / op.
(w tym VAT 23%)
1,17 € gross/szt.
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość op.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Threaded rail connector, NEW series, 2.5 mm2, TS 32,35, 1 track

Dane techniczne

  • Color
    Red
  • Nominal cross-section [mm²]
    2.5
  • Libra
    6.6
  • Rated current [A]
    24
  • Pieces in the package
    50
  • PKWIU
    27.33.13.0

Pozostałe dane techniczne

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Red
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    6 mm
  • Wysokość przy najniższym sposobie montażu
    34 mm
  • Connectable conductor cross section solid-core
    0,5 ... 4 mm²
  • Closing plate required
    Yes
  • Length
    44 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    24 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 2,5 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    No

Dane producenta

  • Producent
    SIMET S.A.
  • Adres
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska
