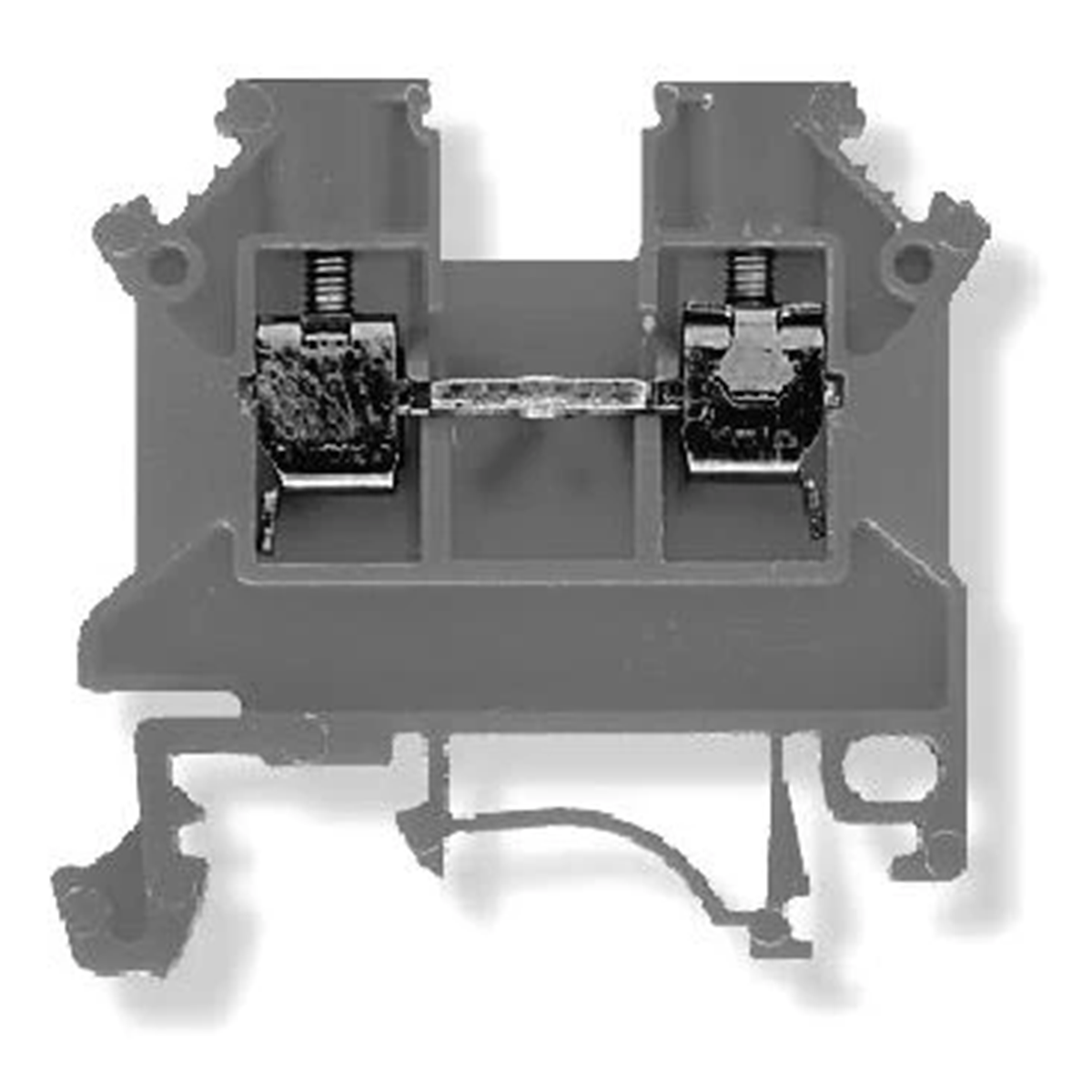

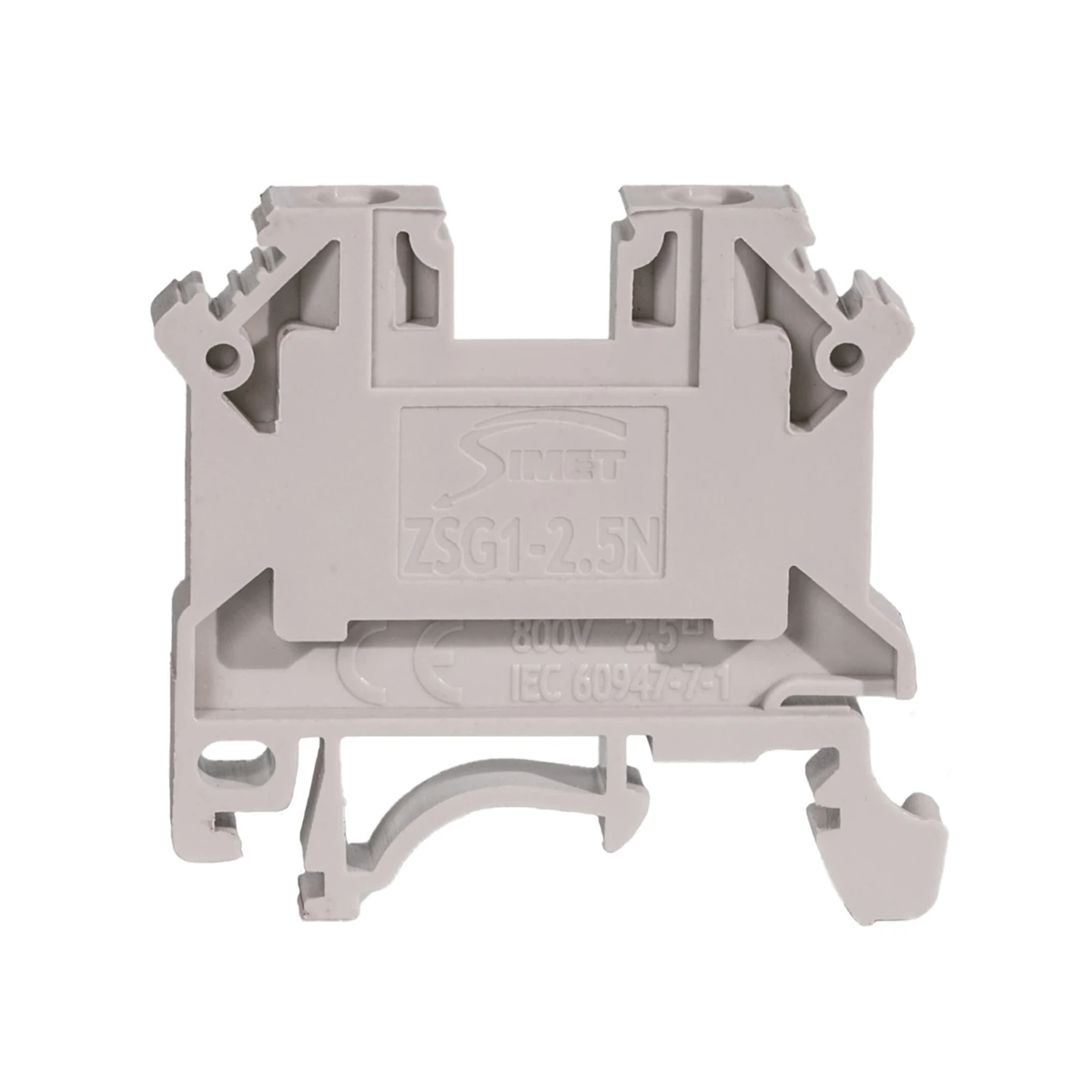

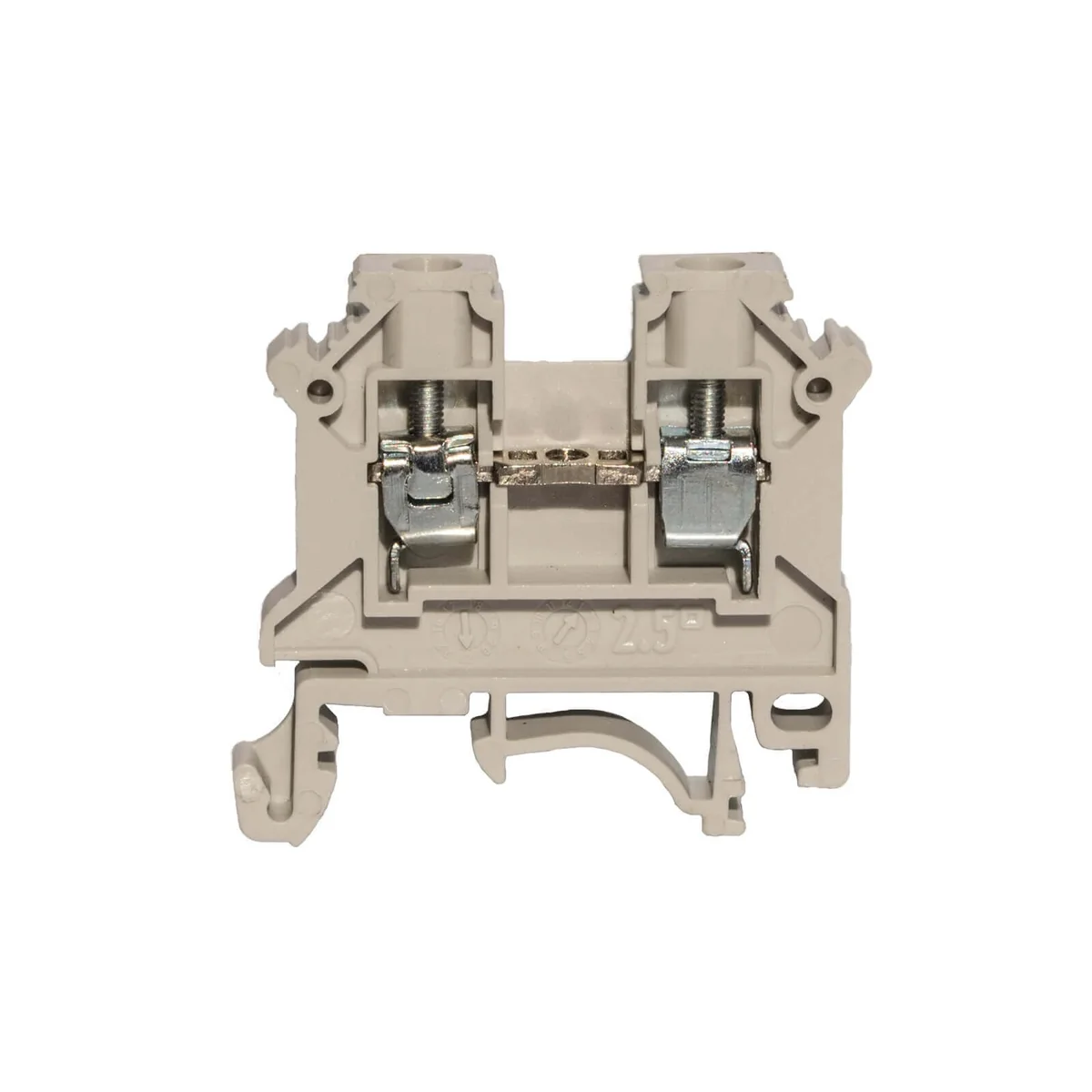

Threaded rail connector, NEW series, 2.5 mm2, TS 32.35, 1 track, 50 pcs. 11221312
local index:
TES012SIME
Catalog No:
11221312
EAN code:
5907813208638
Price:
51,30 €
gross / pkg.
(including VAT 23%)
1,03 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Threaded rail connector, NEW series, 2.5 mm2, TS 32,35, 1 track
Technical data
-
Number of tracks1
-
Rated voltage [V]800
-
Width [mm]34
-
Libra6.6
-
cross section [mm²]2.5
-
PKWIU27.33.13.0
-
ColorGray
-
Rated current [A]24
-
Pieces in the package50
-
Height [mm]44
-
Number of connectors1
Other technical data
-
Rated voltage800 V
-
Explosion-tested version 'Ex e'No
-
ColourGrey
-
Type of electrical connection 2Screw connection
-
Connection positionSideways
-
Number of levels1
-
Material insulation bodyThermoplastic
-
Width/grid dimension6 mm
-
Wysokość przy najniższym sposobie montażu34 mm
-
Connectable conductor cross section solid-core0,5 ... 4 mm²
-
Closing plate requiredYes
-
Length44 mm
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Type of electrical connection 1Screw connection
-
Rated current In24 A
-
Operating temperature-25 ... 125 °C
-
Number of clamp positions per level2
-
Inflammability class of insulation material according to with UL94V0
-
Connectable conductor cross section fine-strand without cable end sleeve0,5 ... 2,5 mm²
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired0 ... 0 mm²
-
Internally connected stagesNo
