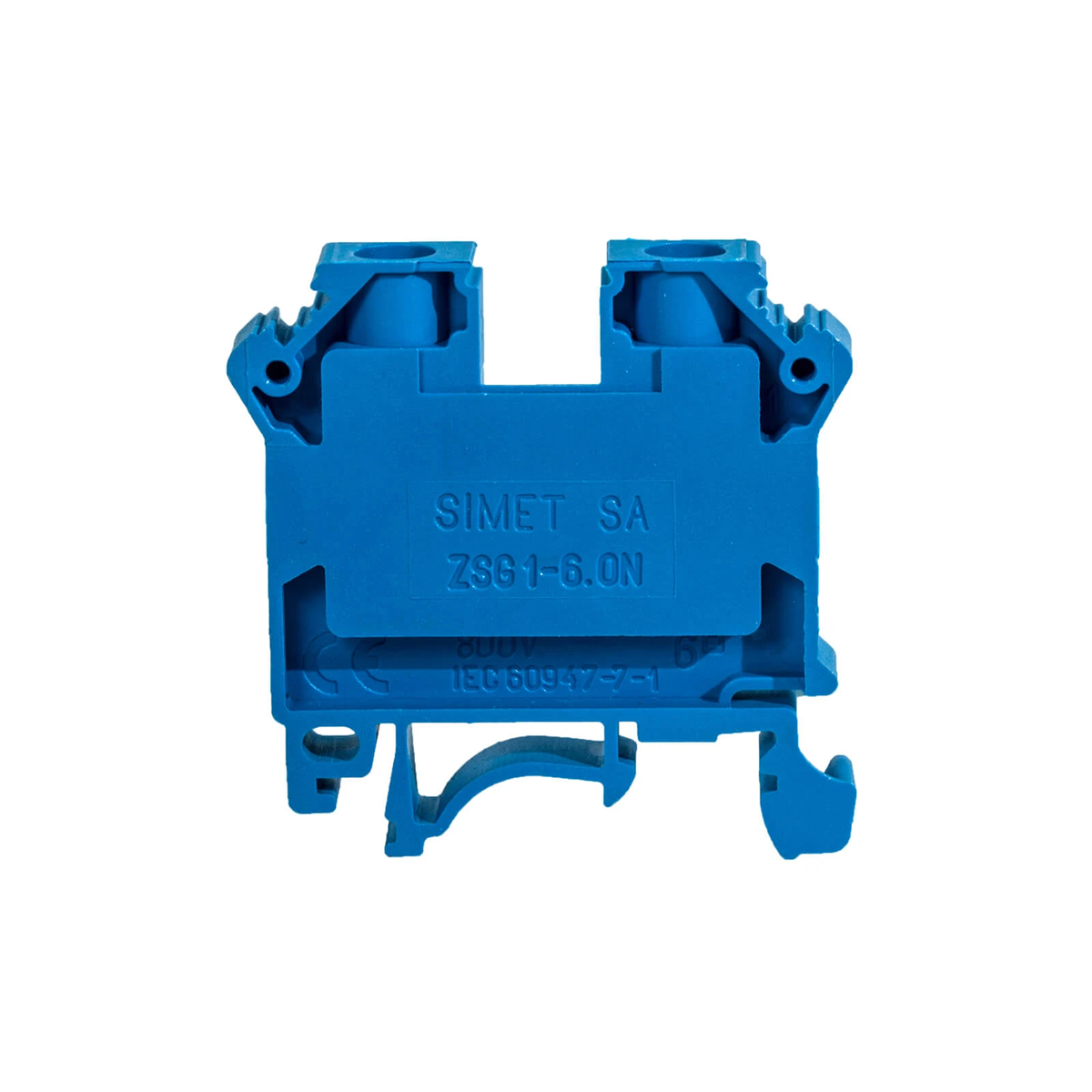

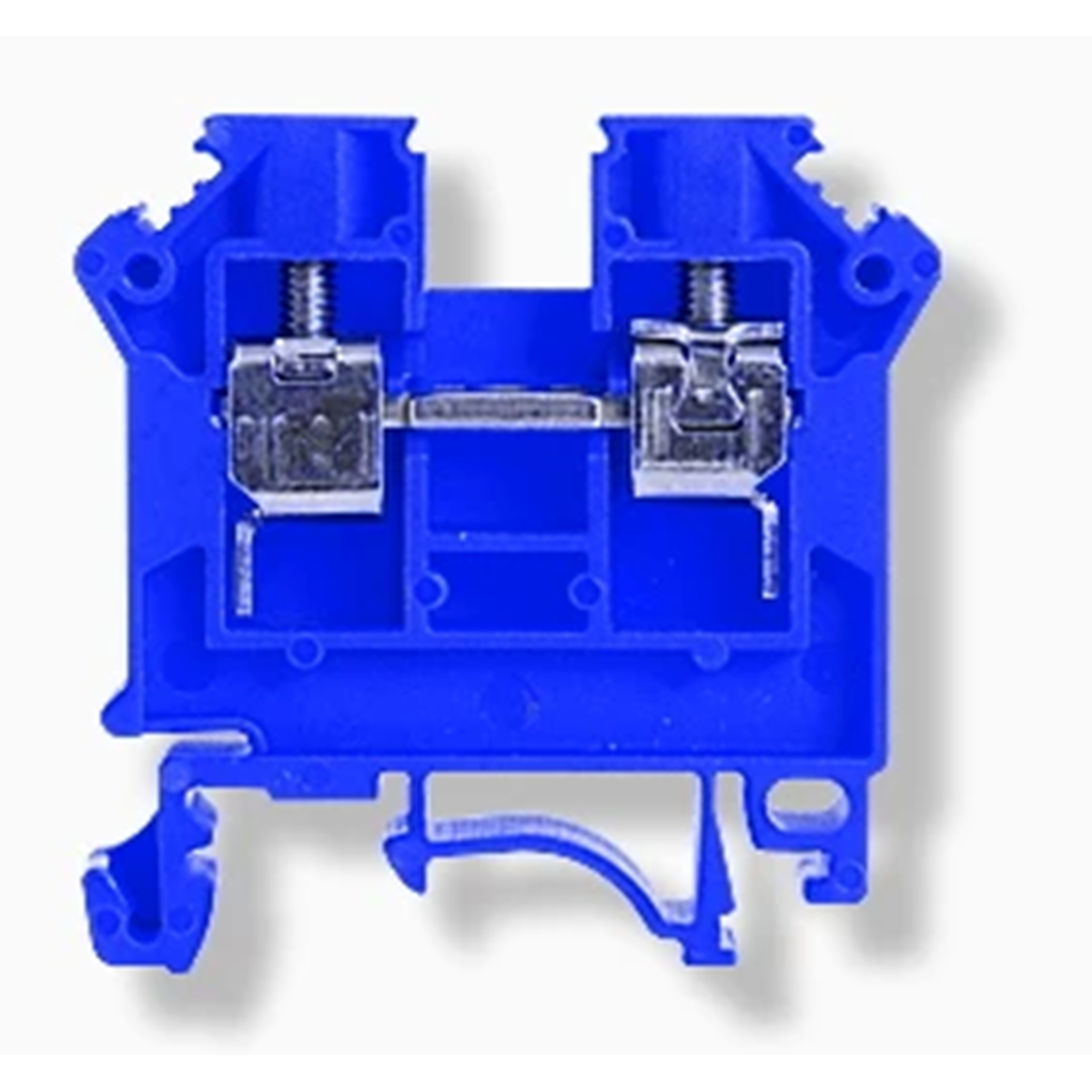

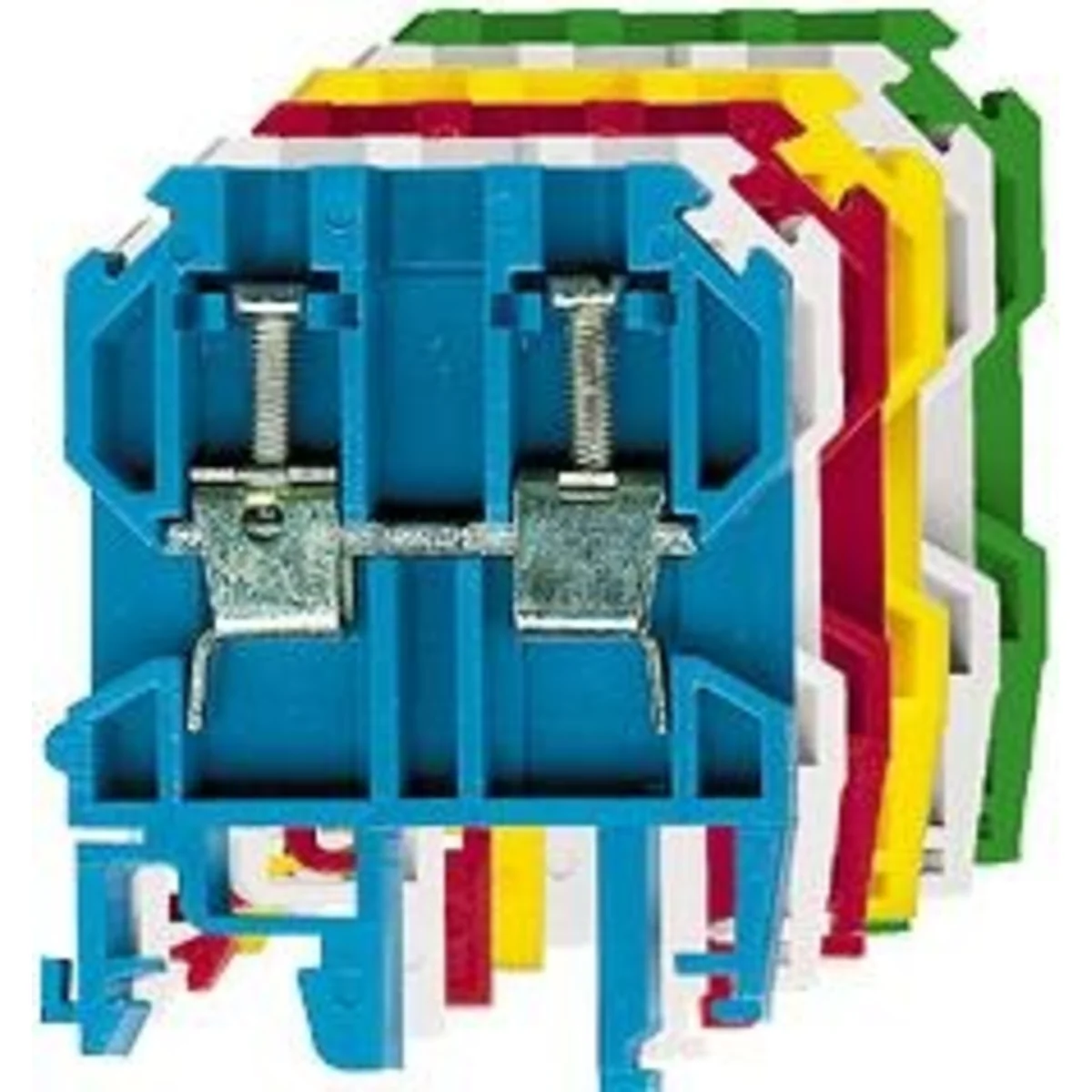

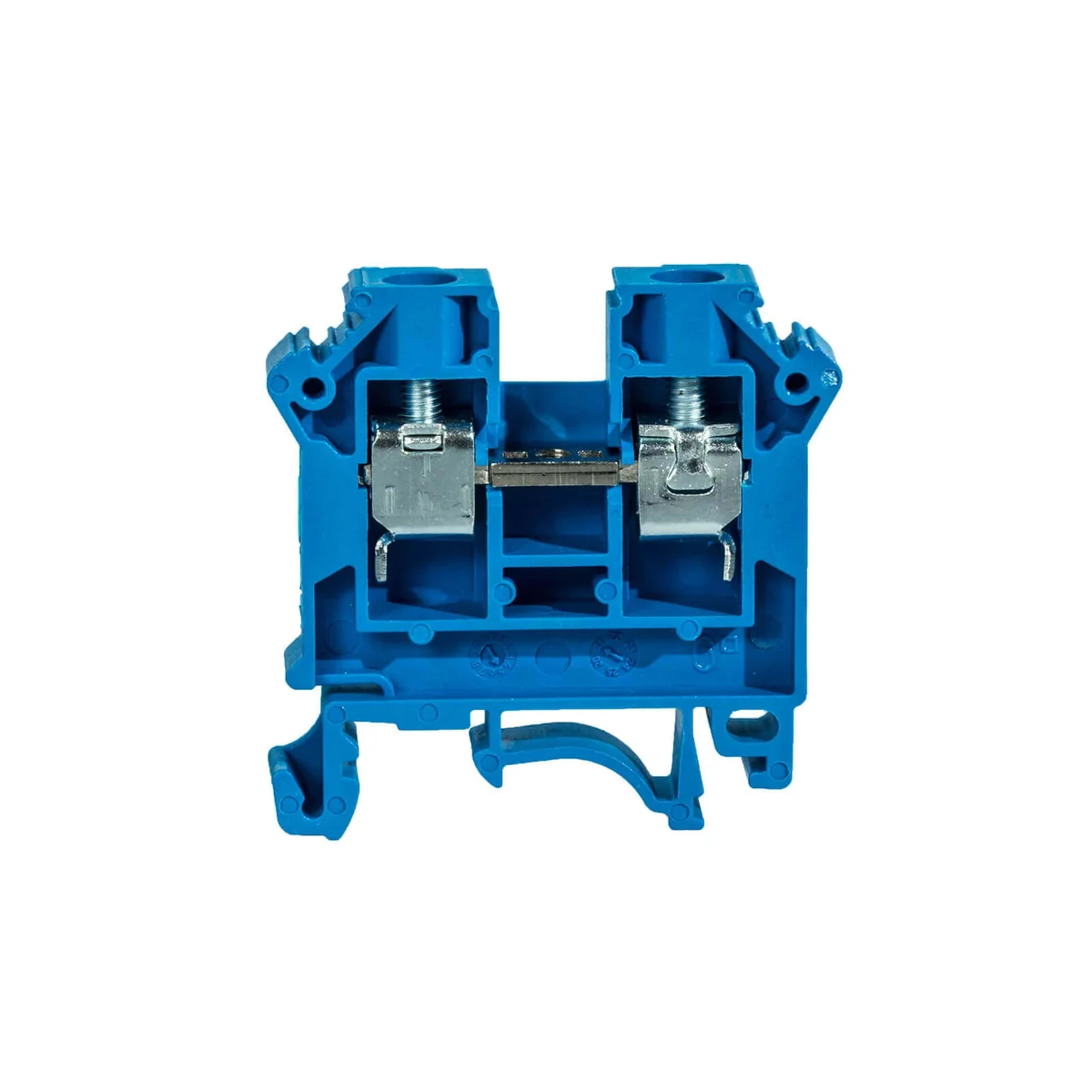

Threaded rail connector 6 mm2 TS 35 1 channel. 11421313

local index:
TEG259SIME
Catalog No:
11421313
EAN code:
5907813212574
Manufacturer: SIMET
Color: Blue
Rated current [A]: 41
Nominal cross-section [mm²]: 6
Price:
1,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Threaded terminal block, 6.0 mm2, TS 35, 1 track

Technical data

  • Color
    Blue
  • Nominal cross-section [mm²]
    6
  • Accurate color
    Blue
  • Rated current [A]
    41
  • Libra
    13.1
  • PKWIU
    27.33.13.0

Other technical data

  • Rated voltage
    800 V
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Blue
  • Type of electrical connection 2
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    8 mm
  • Wysokość przy najniższym sposobie montażu
    39.5 mm
  • Connectable conductor cross section solid-core
    0,5 ... 10 mm²
  • Closing plate required
    Yes
  • Length
    48 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Rated current In
    41 A
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 6 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 0 mm²
  • Internally connected stages
    No
