Threaded nipple ZG-G2, 5 blue A11-8106

local index:
TES007POKO
Catalog No:
A11-8106
EAN code:
5902626136932
Price:
0,90 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 6 pcs.
Delivery:
From 3,71 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

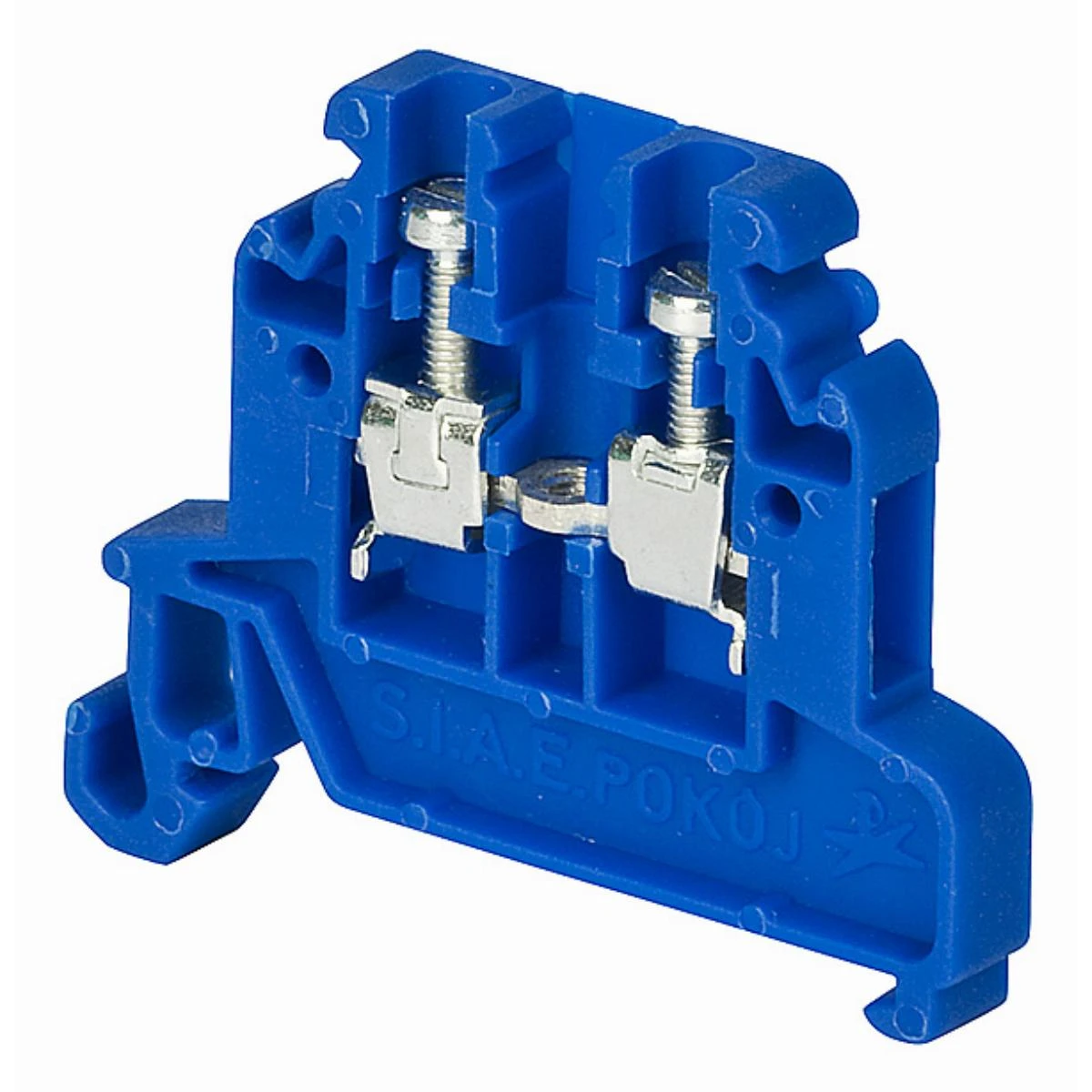

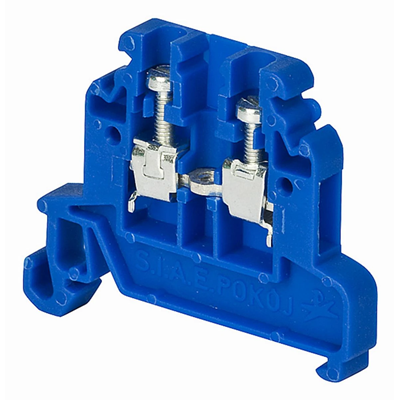

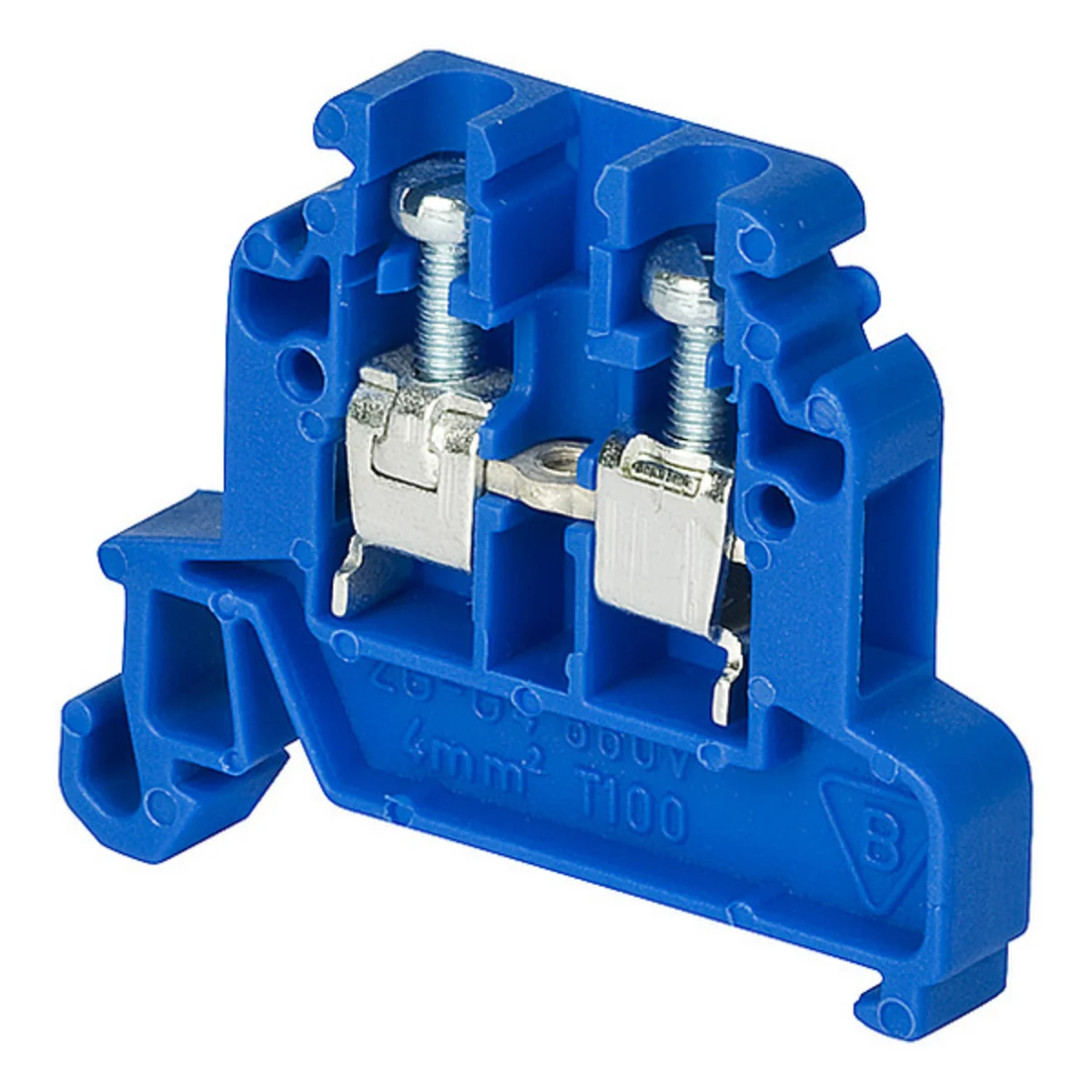

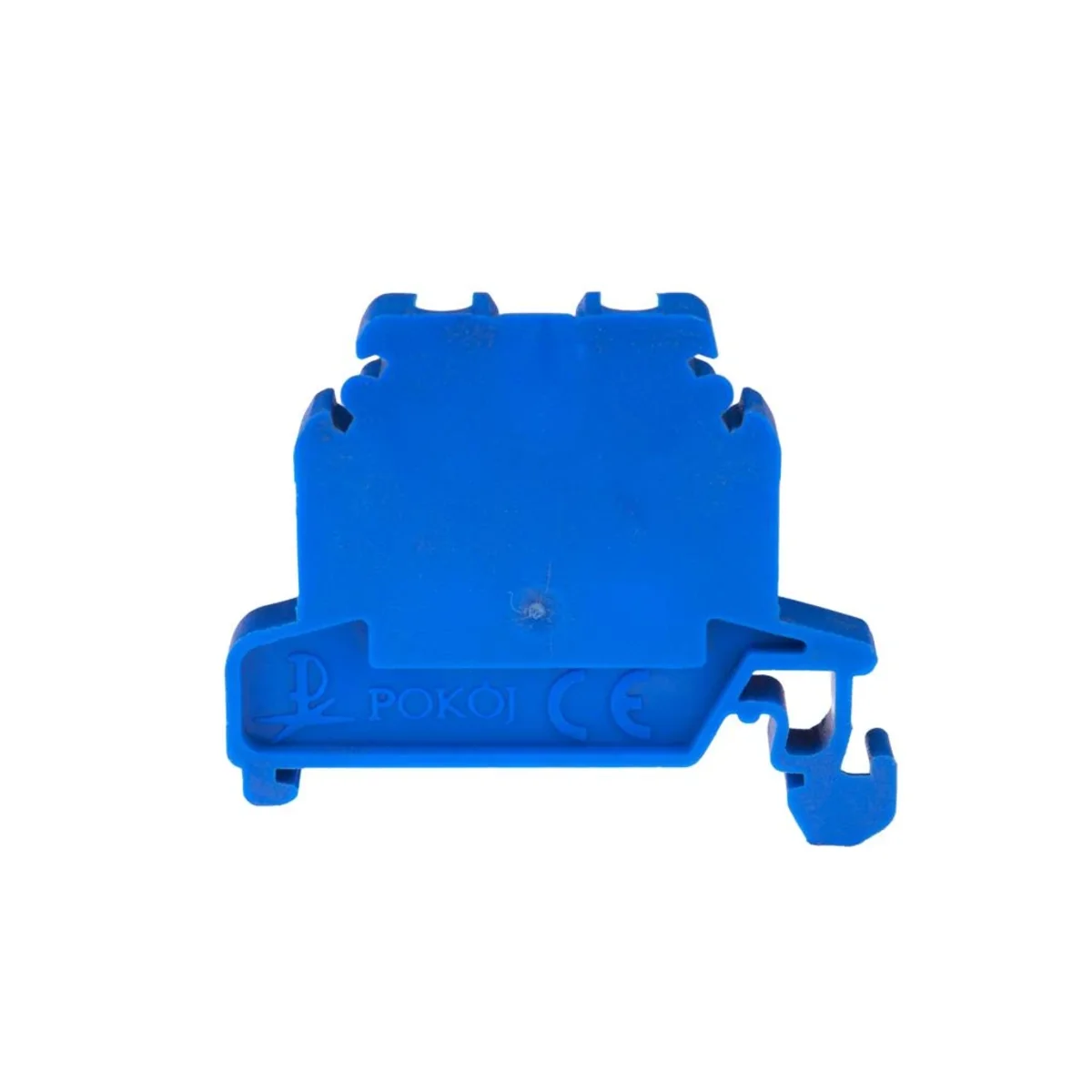

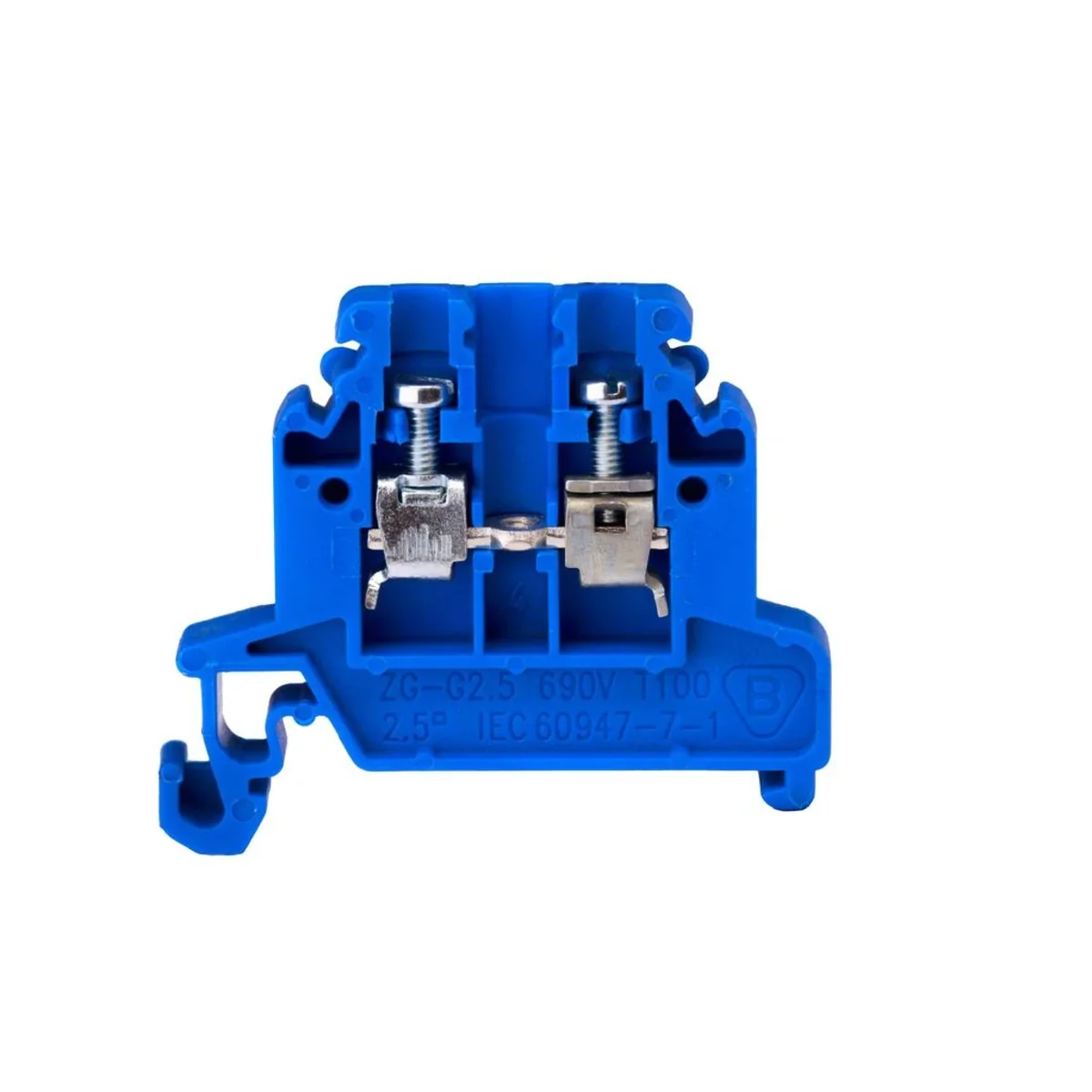

ZG-G2.5 threaded nipple, blue

Technical data

  • Color
    Blue
  • Accurate color
    Blue

Other technical data

  • Type of electrical connection 1
    Screw connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    31 mm
  • Explosion-tested version 'Ex e'
    no
  • Colour
    Blue
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.5 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.5 ... 2.5 mm²
  • Rated current In
    24 A
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 100 °C
  • Width/grid dimension
    5.2 mm
  • Length
    43.5 mm
  • Closing plate required
    yes
  • Internally connected stages
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.5 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.5 ... 2.5 mm²
  • Rated voltage
    690 V
