ETI POLAM

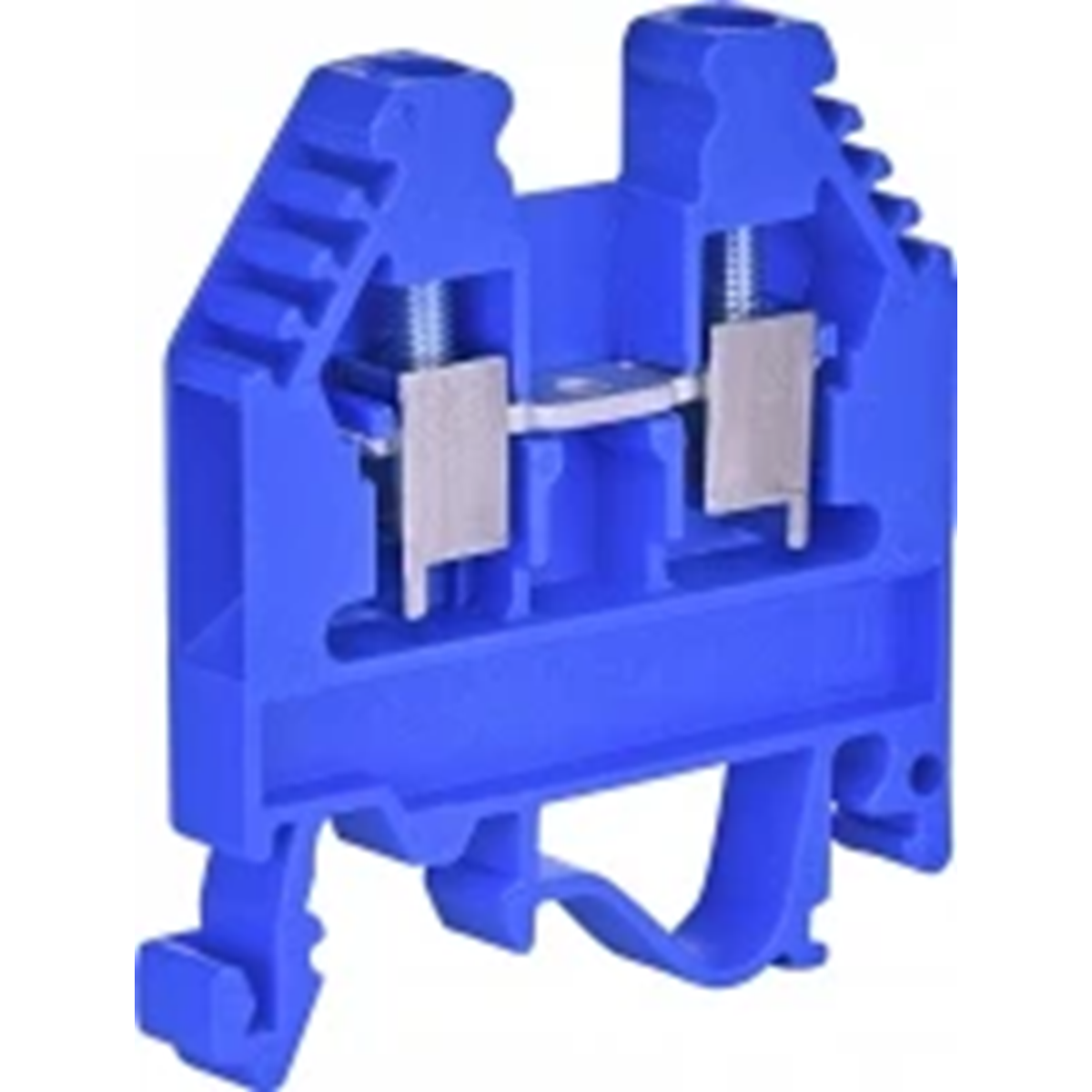

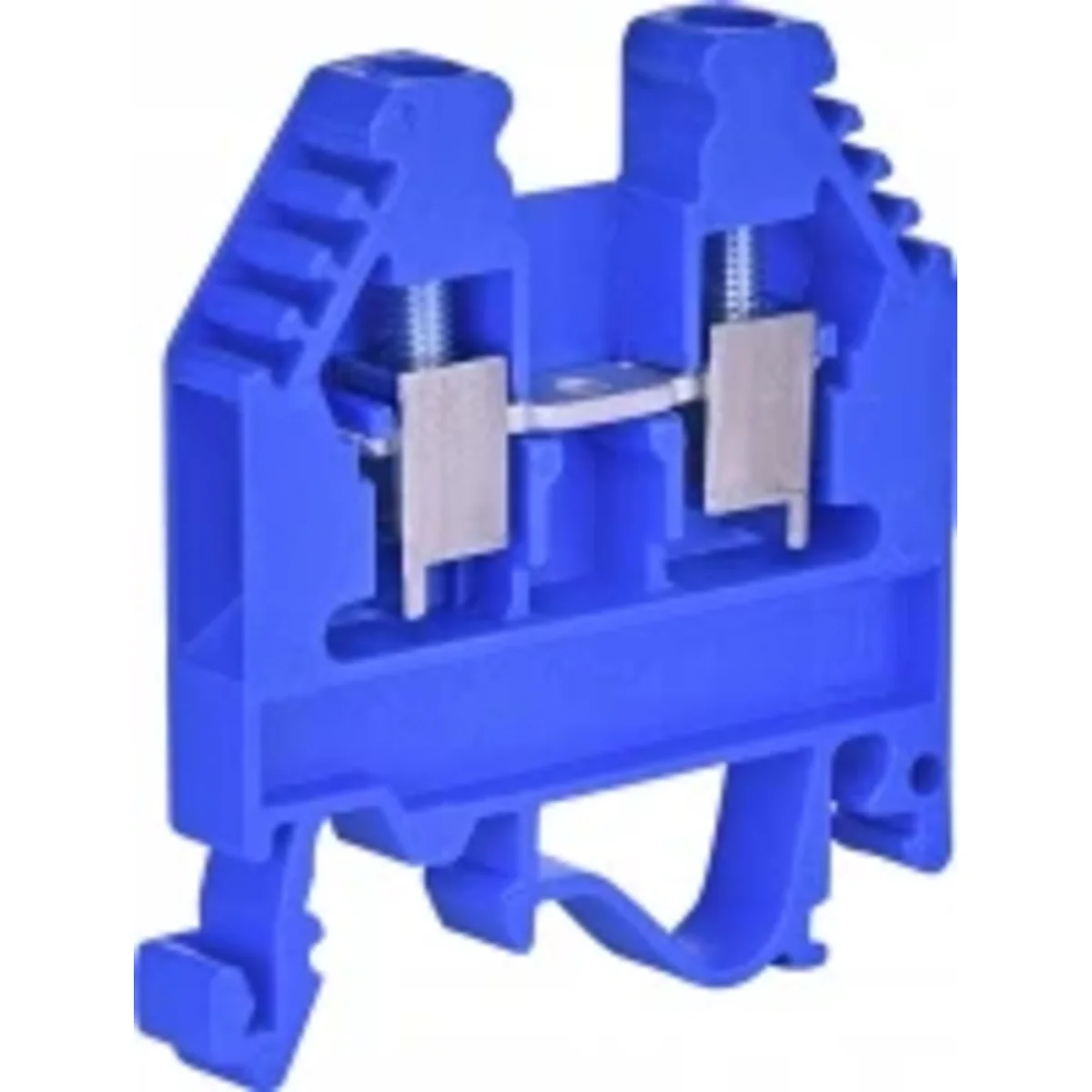

Threaded nipple - neutral (blue) VS 4 PAN 003901038

local index:
TEG006ETIP
Catalog No:
003901038
EAN code:
5904722915145
Price:
1,18 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. connector type, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Color
    Blue
  • Rated voltage [V]
    660
  • Installation
    On the TH-35 rail
  • Rated current [A]
    32

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    1.5 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Clip connection
  • Material insulation body
    Thermoplastic
  • Colour
    Blue
  • Connectable conductor cross section solid-core
    1.5 ... 6 mm²
  • Rated voltage
    660 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Closing plate required
    yes
