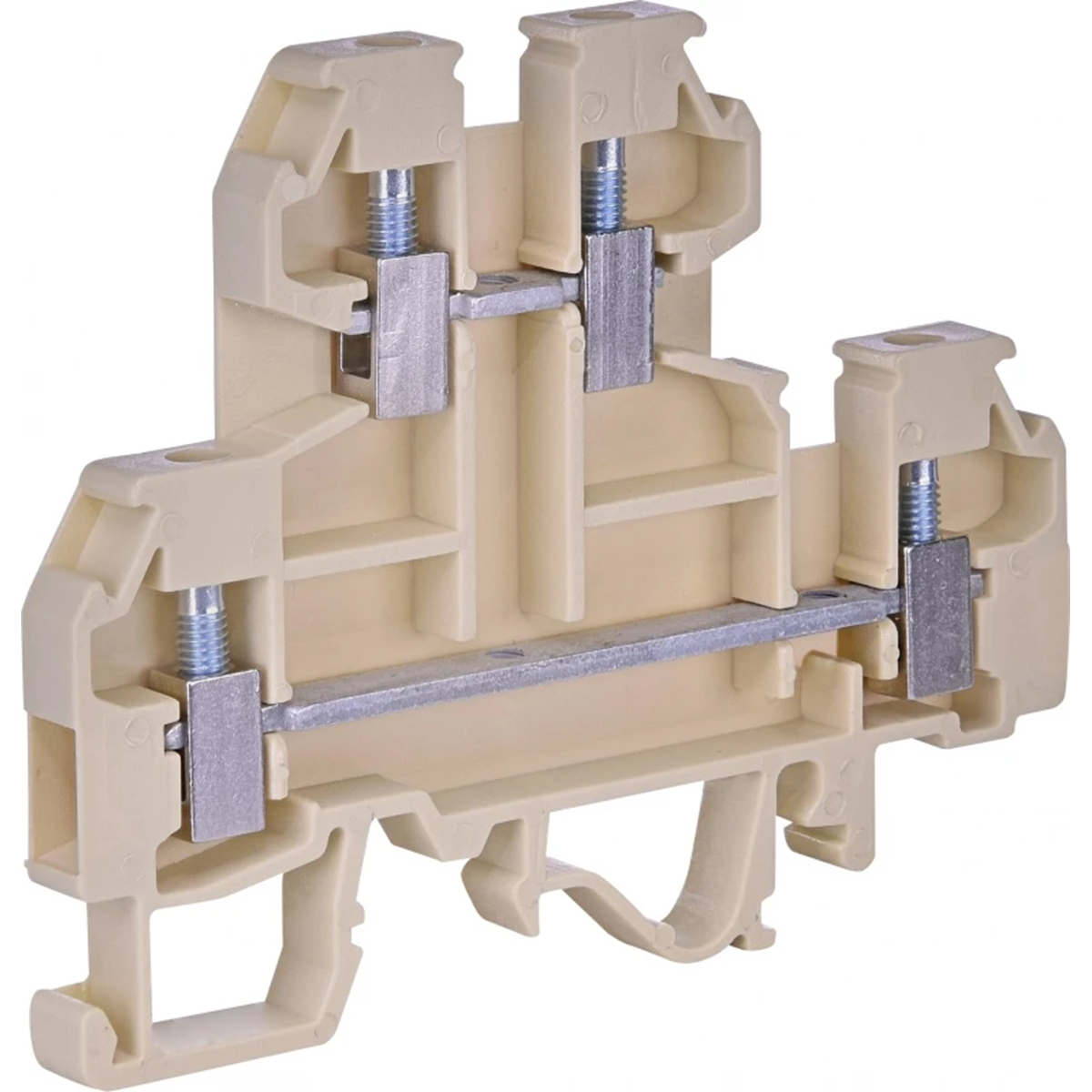

Threaded coupling - stacked (2.5mm2) VS 2.5 NA 003901243

local index:
TEG003ETIP
Catalog No:
003901243
EAN code:
5904722915695
Manufacturer: ETI POLAM
Rated voltage [V]: 440
Rated current [A]: 32
Price:
2,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. type of connector, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Rated voltage [V]
    440
  • PKWIU
    27.33.13.0
  • Rated current [A]
    32

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    0.3 ... 2.5 mm²
  • Rated current In
    24 A
  • Type of electrical connection 1
    Clip connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Closing plate required
    Yes
  • Connectable conductor cross section solid-core
    0.3 ... 4 mm²
  • Rated voltage
    440 V
  • Number of potentials
    2
  • Material insulation body
    Thermoplastic
  • Basic colour
    Beige

Bulk packaging

A kind of package Pudełko
Quantity 50 pcs.
Weight (kg) 0,715
Volume (m3) 0,001
Width (m) 0,150
Length (m) 0,140
Depth (m) 0,060
