Connecting cables and wires
Connectors
Rail connectors

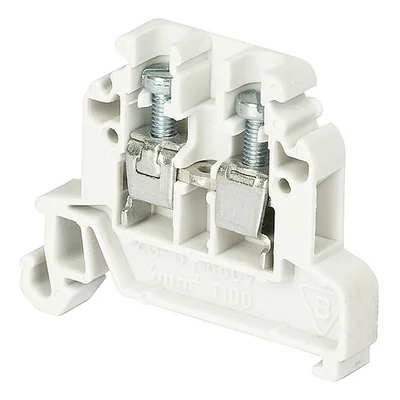

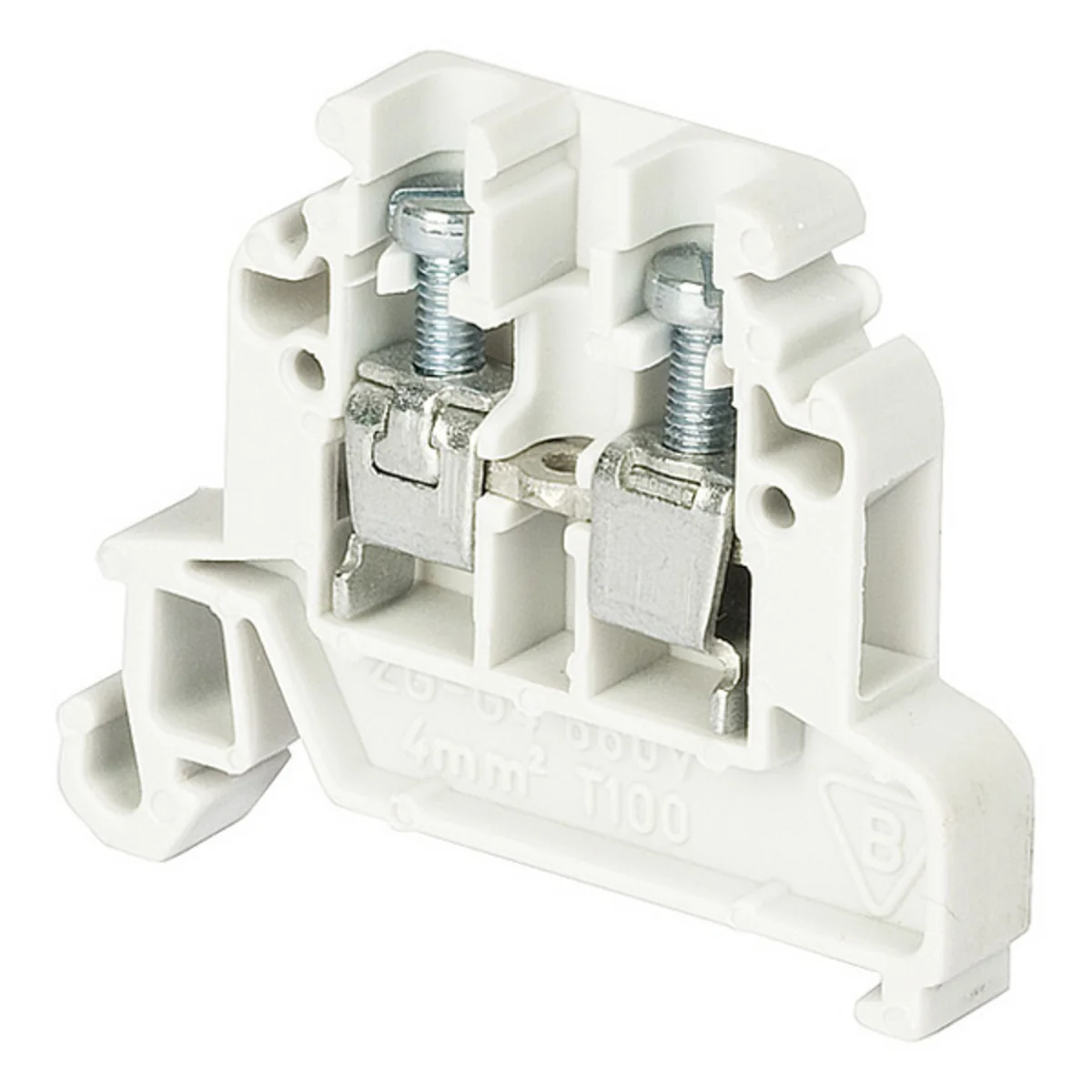

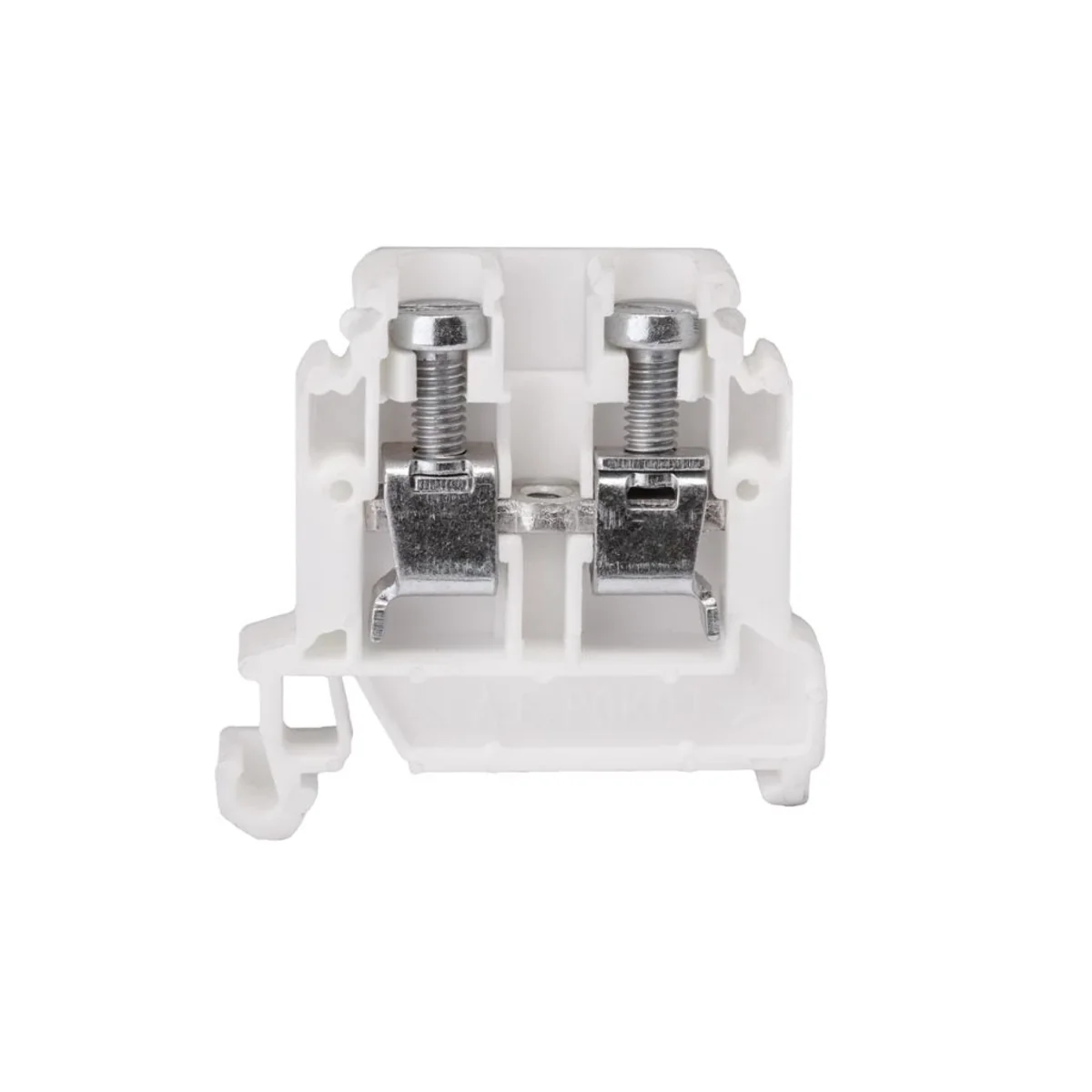

Threaded connector ZG-G10 white color 50 pcs. A11-8302
local index:
TES039POKO
Catalog No:
A11-8302
EAN code:
5902626137038
Click on the photo to enlarge
Manufacturer:
POKÓJ
Color:
White
Application to plastics:
50
See full description
Price:
58,47 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
ZG-G10 threaded nipple, white
Technical data
Color
White
PKWIU
27.12.40.0
Application to plastics
50
Other technical data
Colour
White
Connectable conductor cross section fine-strand without cable end sleeve
0.5 ... 6 mm²
Connectable conductor cross section solid-core
0.5 ... 10 mm²
Rated current In
57 A
Type of electrical connection 1
Screw connection
Connection position
Atop
Number of clamp positions per level
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
36.3 mm
Explosion-tested version 'Ex e'
No
Internally connected stages
No
Connectable conductor cross section fine-strand with cable end sleeve
0.5 ... 6 mm²
Connectable conductor cross section multi-wired
0.5 ... 6 mm²
Rated voltage
690 V
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Operating temperature
-25 ... 100 °C
Width/grid dimension
8 mm
Length
43.4 mm
Closing plate required
Yes
See more >>
