Threaded connector ZG-G10 blue A11-8306
local index:
TES087POKO
Catalog No:
A11-8306
EAN code:
5902626137069
Price:
1,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

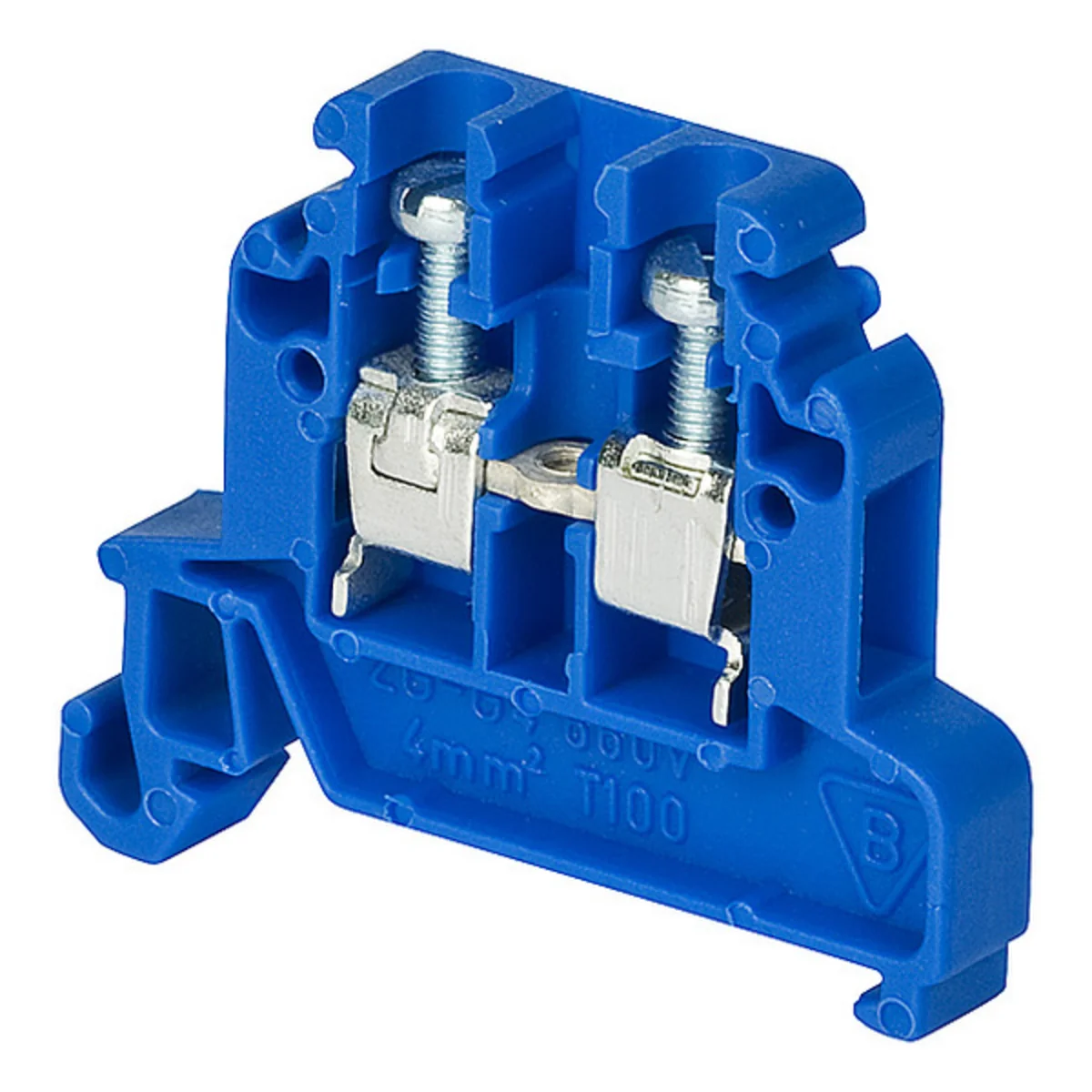

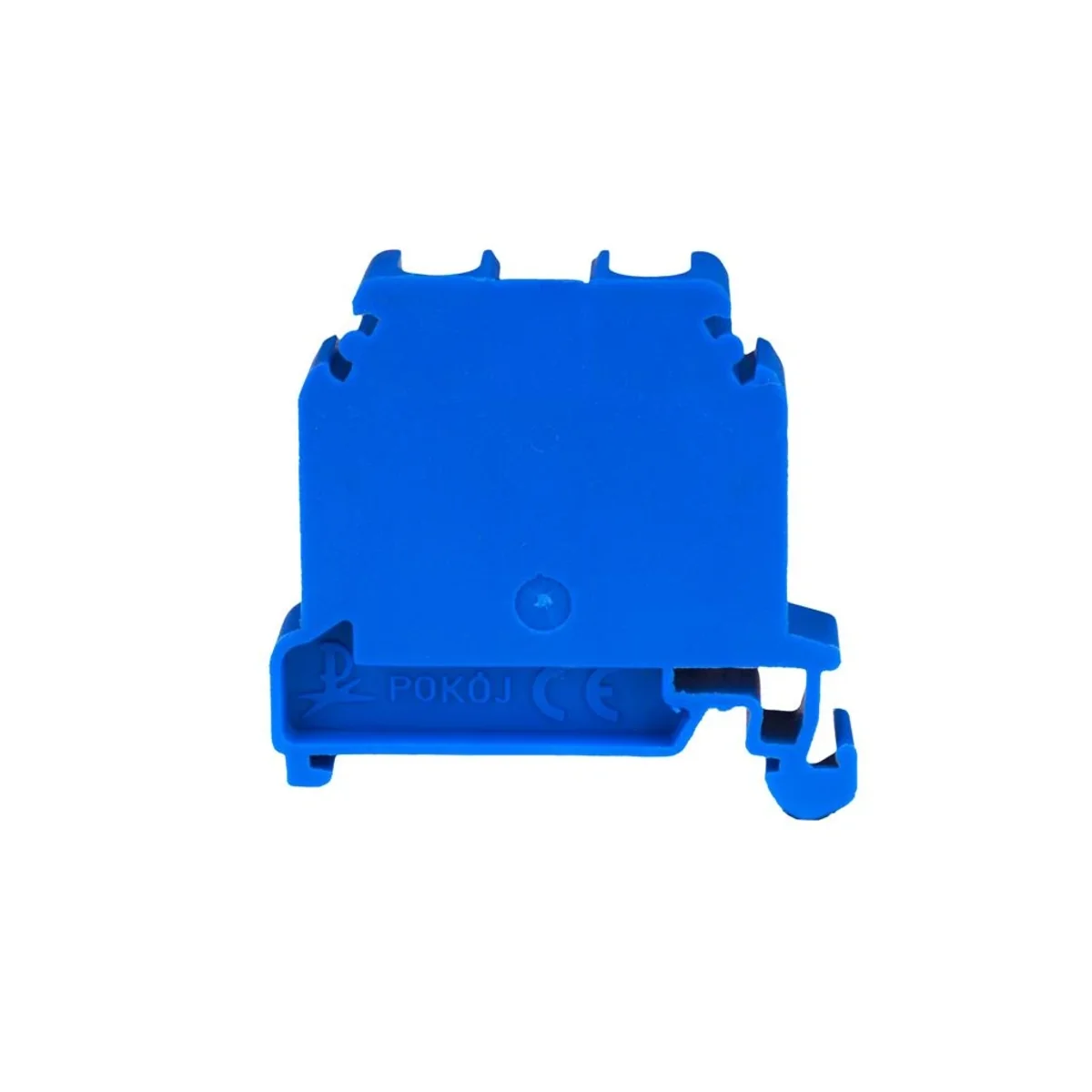

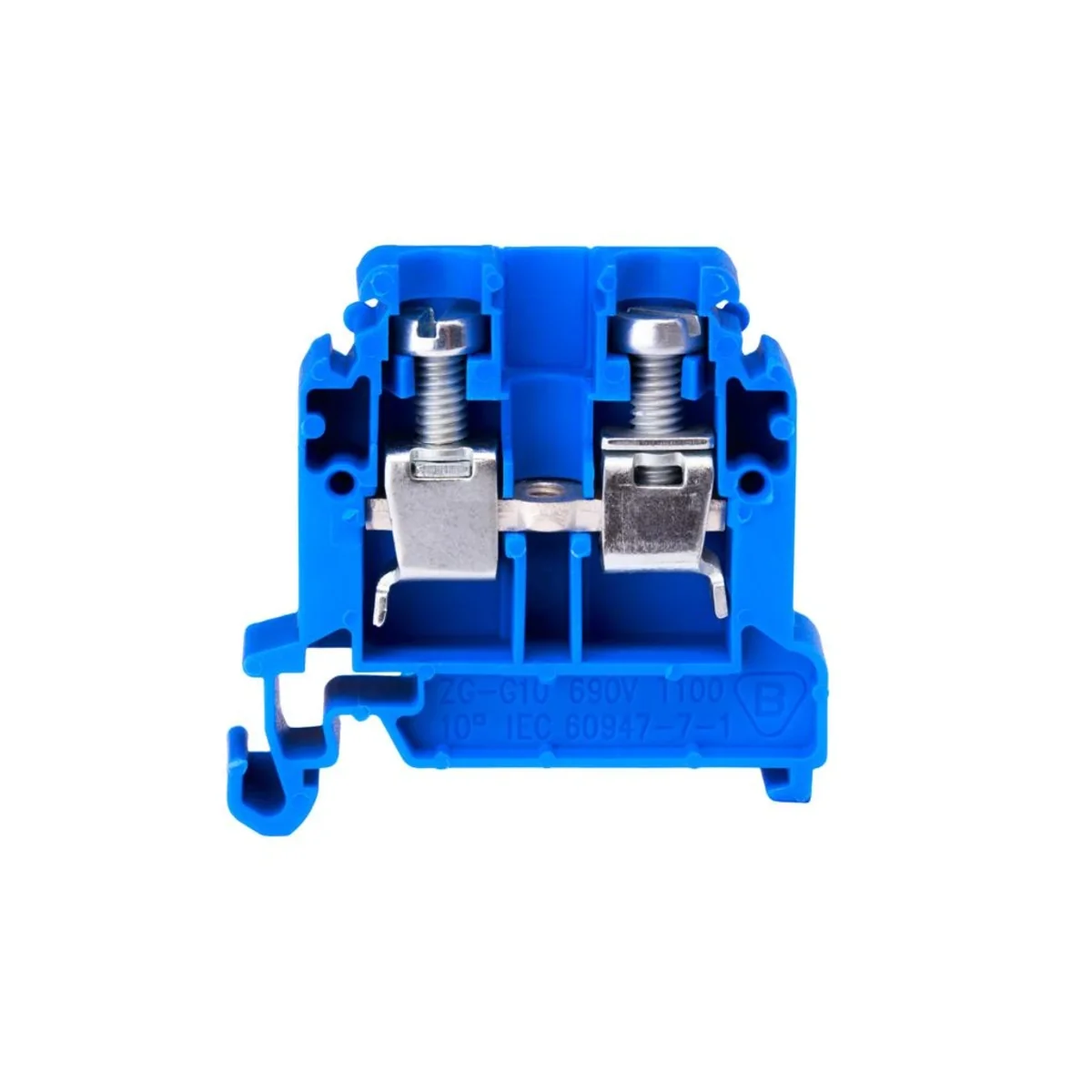

Threaded connector ZG-G10 blue
Technical data
-
ColorBlue
-
PKWIU27.12.40.0
-
Accurate colorBlue
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 6 mm²
-
Connectable conductor cross section solid-core0.5 ... 10 mm²
-
Rated current In57 A
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu36.3 mm
-
Explosion-tested version 'Ex e'No
-
ColourBlue
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 6 mm²
-
Connectable conductor cross section multi-wired0.5 ... 6 mm²
-
Rated voltage690 V
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension8 mm
-
Length43.4 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
