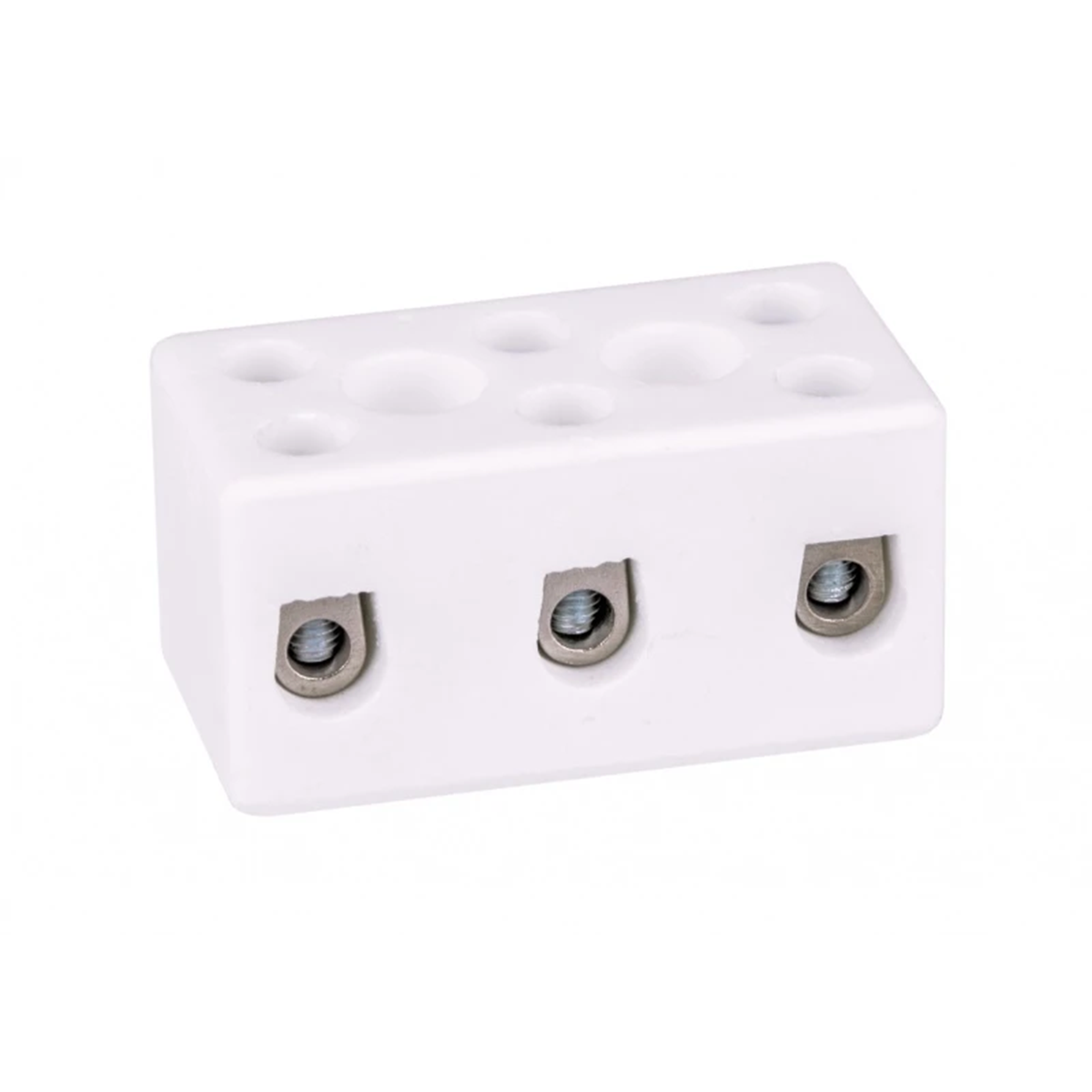

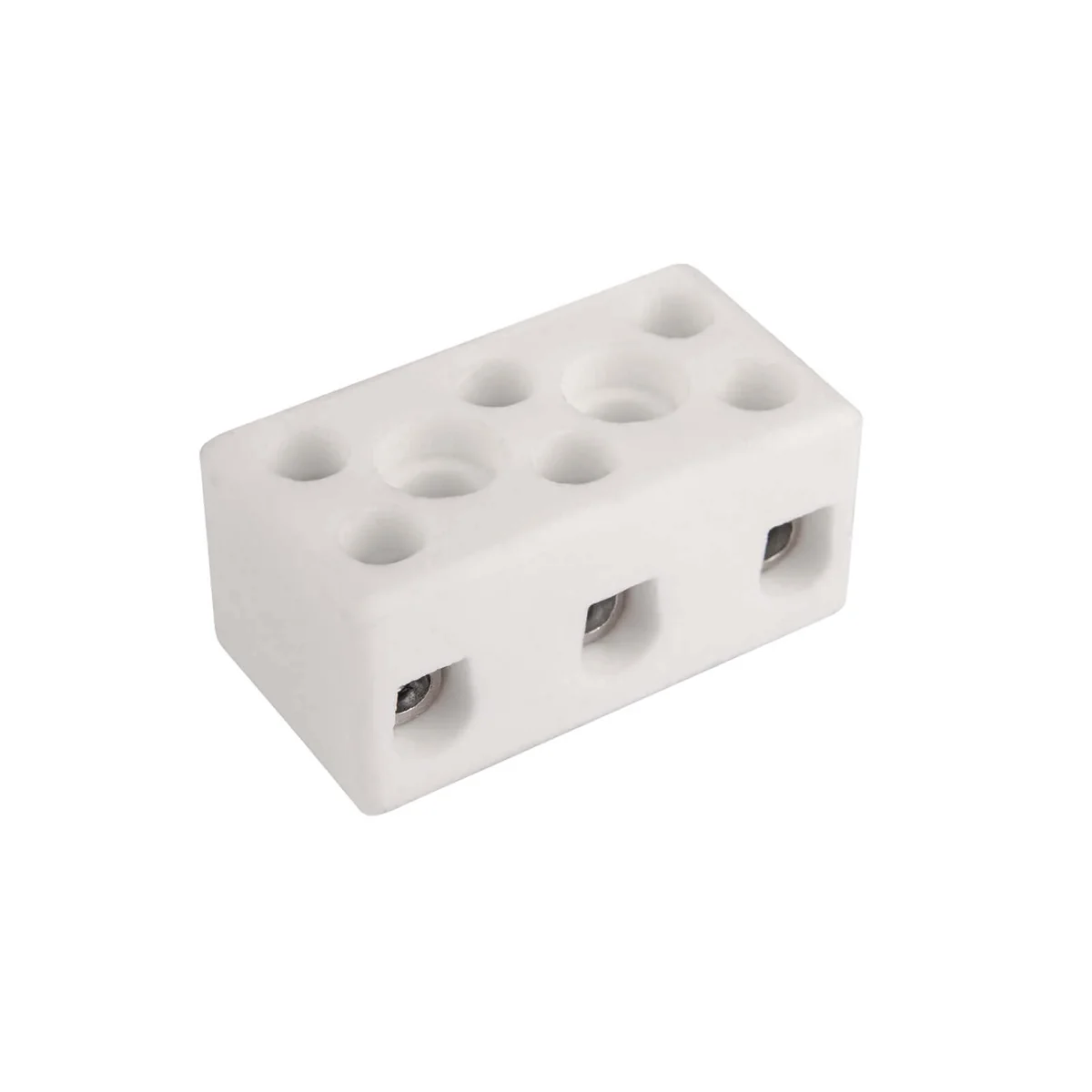

Threaded connector, porcelain (with holes for screwing), 6 mm2, 3 tracks, 15 pcs. 80014516

Índice local:

TEG120SIME

Número de catálogo:

80014516

Código EAN:

5907813232091

Haga clic en la foto para ampliar

Fabricante: SIMET

Depth [mm]: 40

Color: White

Width [mm]: 25

Ver descripción completa

134

zł

gross / pack (IVA incluido 23%) 8,98 zł gross / uds.

Dostępne hasta 4 semanas

Por encargo

Elija su mayorista

Seleccione

Cantidad pack (múltiple: 1 )

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante

Descripción del producto

Threaded connector, porcelain (with screw holes), 6 mm2, 3 tracks

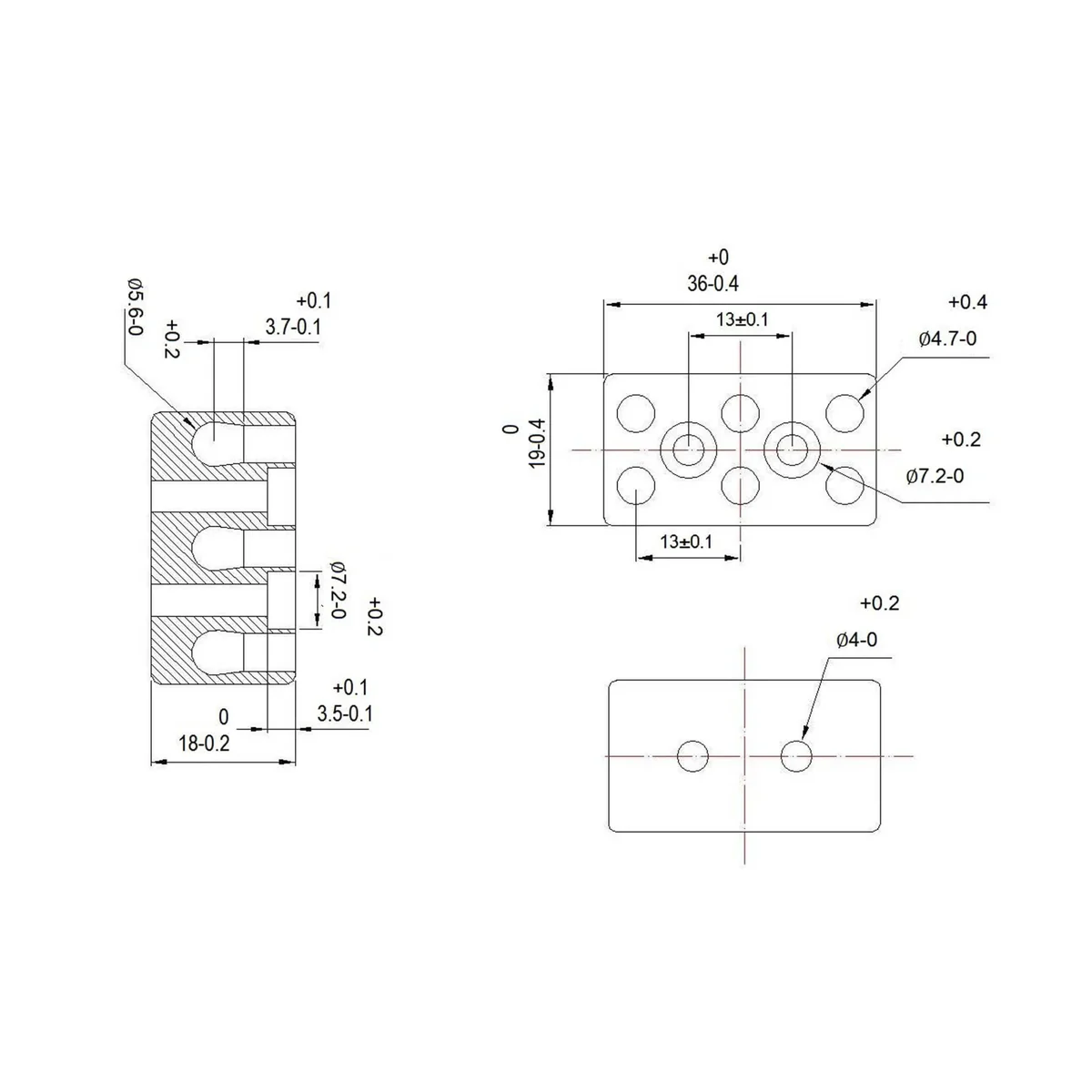

Drill hole distance centrically

14 mm
Connectable conductor cross section fine-strand without cable end sleeve

0 ... 6 mm²
Connectable conductor cross section solid-core

0 ... 6 mm²
Rated current In

57 A
Type of electrical connection 1

Screw connection
Number of poles

3
Mounting method

Direct mounting
Operating temperature

-40 ... 350 °C
Colour

White

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

0 ... 0 mm²
Connectable conductor cross section multi-wired

0 ... 6 mm²
Rated voltage

450 V
Type of electrical connection 2

Screw connection
Number of clamp positions per pole

2
Material insulation body

Ceramics
Closing plate required

No
Transparent

No
