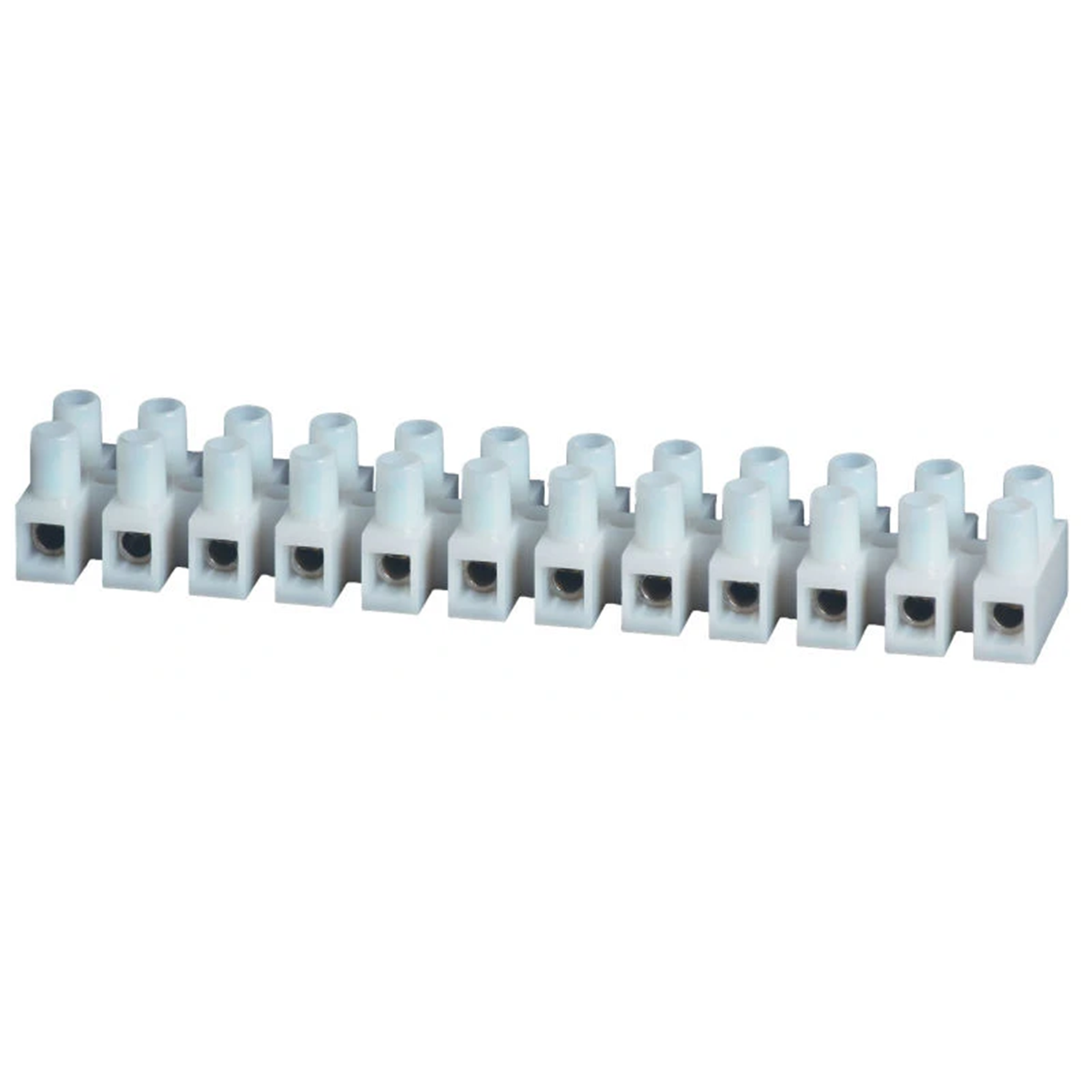

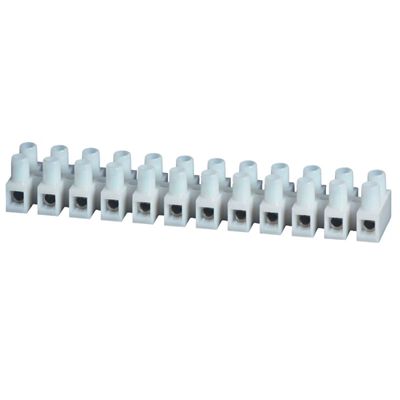

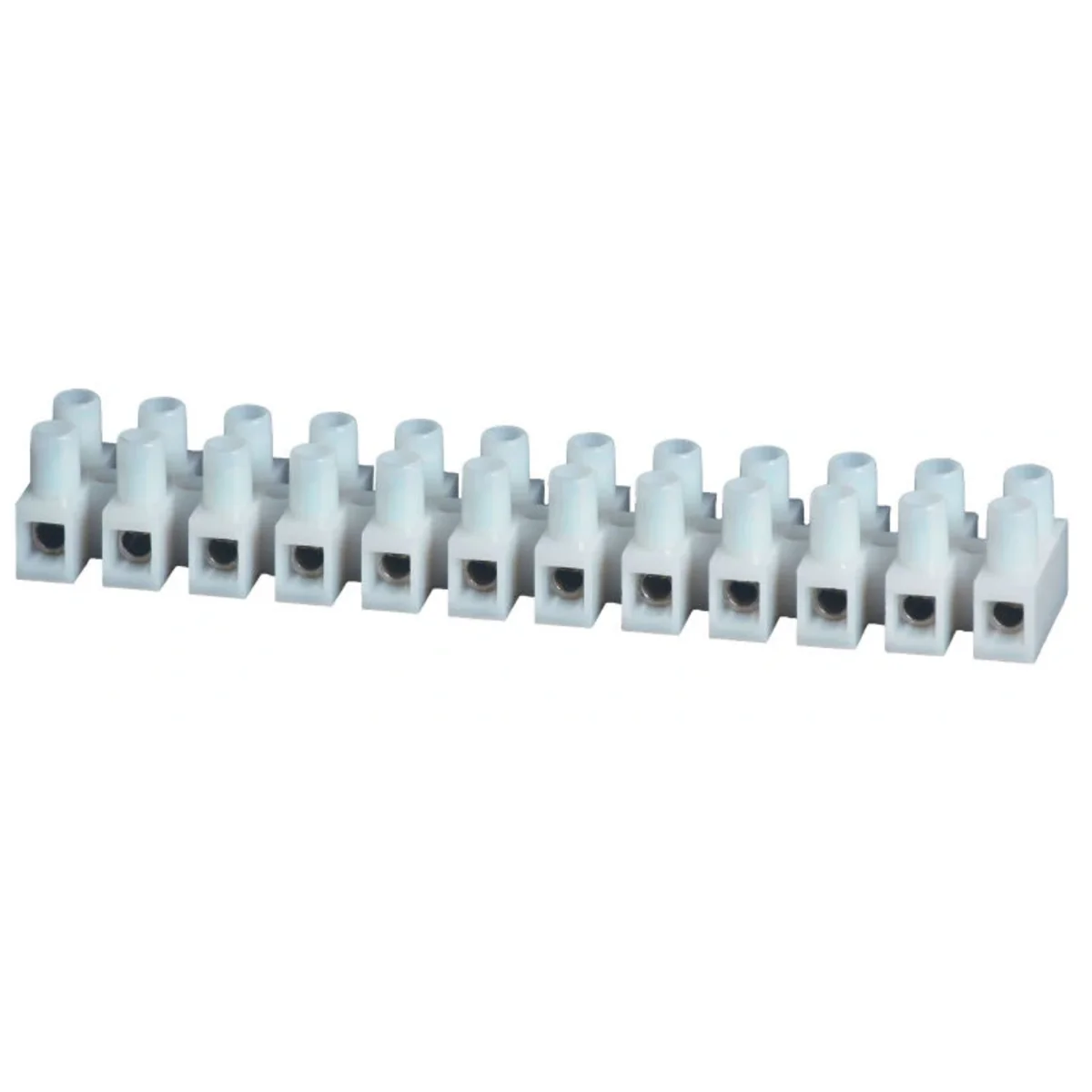

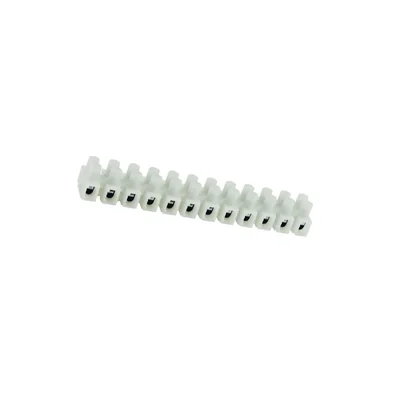

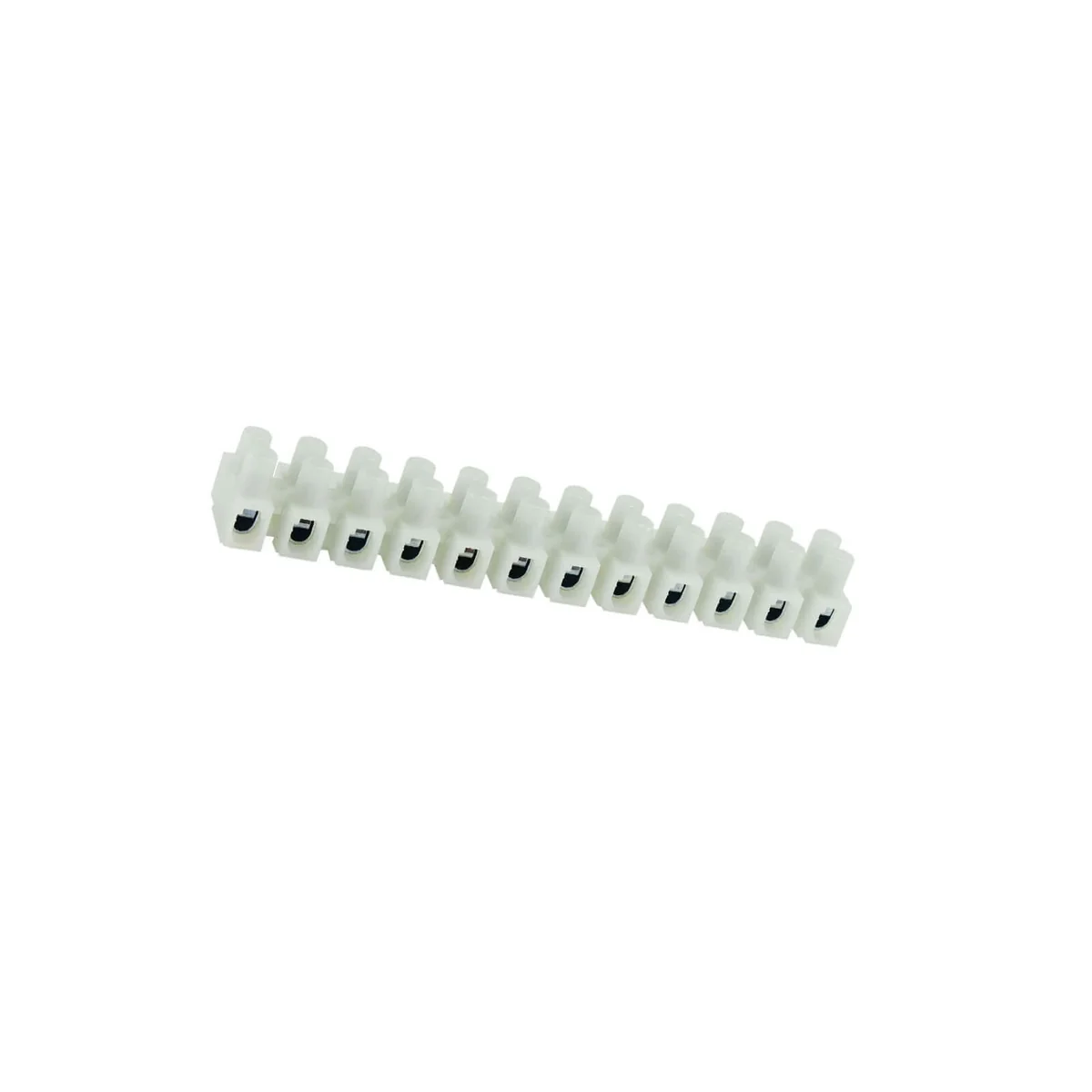

Thermoplastic threaded terminal strip with washer 2.5mm2 12 tracks 50pcs. 89092110

local index:
TEG897SIME
Catalog No:
89092110
EAN code:
8595055702341
Manufacturer: SIMET
Color: Other
Rated current [A]: 24
Nominal cross-section [mm²]: 2.5
Price:
113,81 €
gross / pkg.
(including VAT 23%)
2,28 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Terminal strip, threaded, thermoplastic, with washer, 2.5mm2, 12 tracks

Technical data

  • Color
    Other
  • Nominal cross-section [mm²]
    2.5
  • Libra
    36.4
  • PKWIU
    27.33.13.0
  • Rated current [A]
    24
  • Pieces in the package
    50
  • Accurate color
    Natural

Other technical data

  • Drill hole distance centrically
    10 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    2,5 ... 2,5 mm²
  • Connectable conductor cross section solid-core
    2,5 ... 2,5 mm²
  • Rated current In
    24 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    17 mm
  • Closing plate required
    No
  • Transparent
    No
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    2,5 ... 2,5 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 85 °C
  • Width/grid dimension
    20.2 mm
  • Length
    117.5 mm
  • Colour
    White
