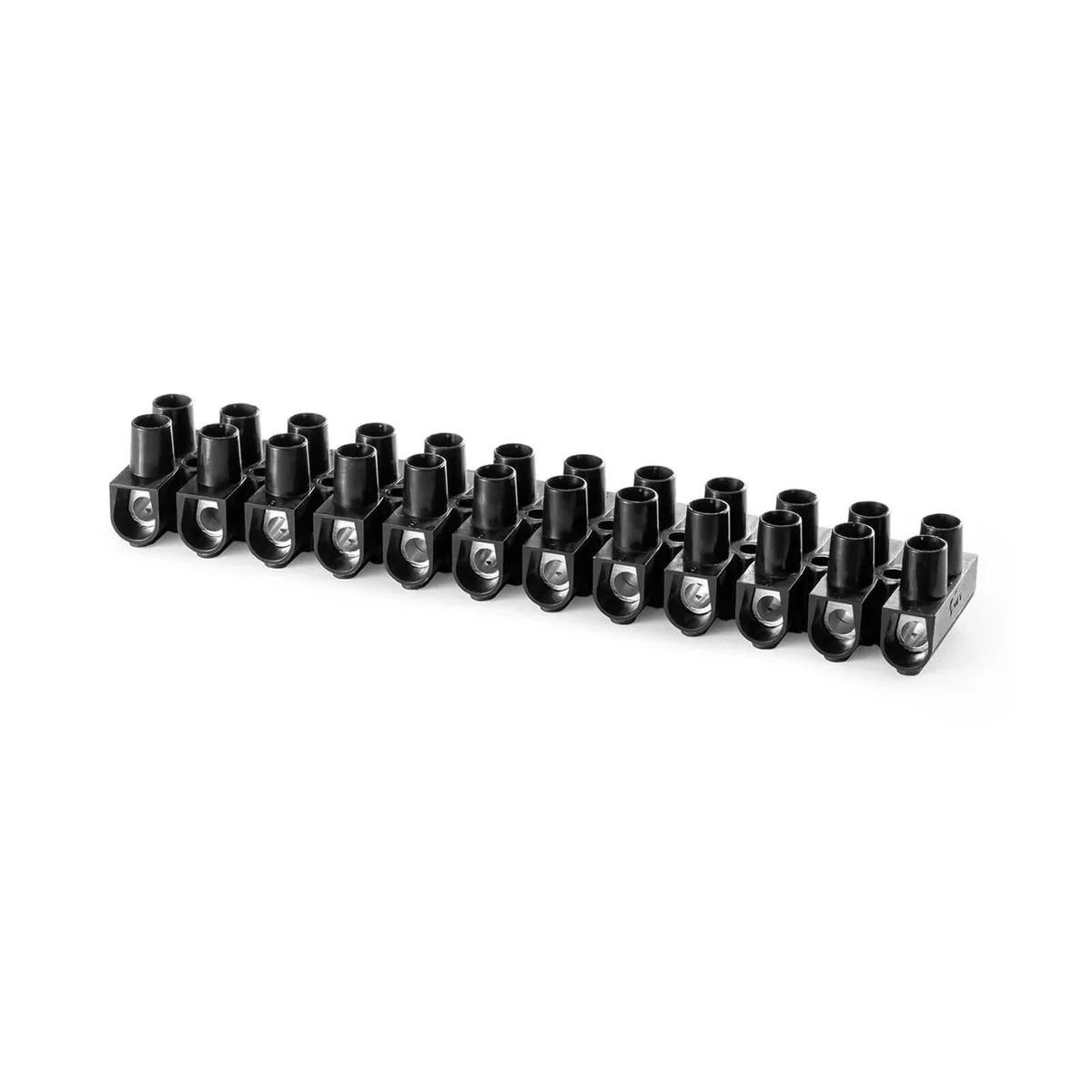

Thermoplastic threaded terminal block LTA12-10.0d black 22512217
local index:
TEG062SIME
Catalog number:
22512217
EAN code:
5907813200601
Manufacturer:
SIMET
Price:
25,53 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
-
PKWIU27.33.13.0
Other technical data
-
Drill hole distance centrically12 mm
-
Connectable conductor cross section fine-strand without cable end sleeve0 ... 6 mm²
-
Connectable conductor cross section solid-core0 ... 10 mm²
-
Rated current In57 A
-
Type of electrical connection 1Screw connection
-
Connection positionSideways
-
Number of clamp positions per pole2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu21 mm
-
Closing plate requiredNo
-
TransparentNo
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve0 ... 0 mm²
-
Connectable conductor cross section multi-wired0 ... 6 mm²
-
Rated voltage400 V
-
Type of electrical connection 2Screw connection
-
Number of poles12
-
Mounting methodDirect mounting
-
Operating temperature-25 ... 85 °C
-
Width/grid dimension21 mm
-
Length141 mm
-
ColourBlack
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
E-mail
Bulk packaging
| A kind of package | Pakiet |
| Quantity | 1 pcs. |
| Width (m) | 0,021 |
| Length (m) | 0,141 |
