el12 Connecting cables and wires Connectors Threaded fittings Thermoplastic threaded terminal block 6mm2 12 VDE tracks 40 pcs.
Thermoplastic threaded terminal block 6mm2 12 VDE tracks 40 pcs.
Thermoplastic threaded terminal block 6mm2 12 VDE tracks 40 pcs.

Click on the photo to enlarge

Thermoplastic threaded terminal block 6mm2 12 VDE tracks 40 pcs.
Thermoplastic threaded terminal block 6mm2 12 VDE tracks 40 pcs.
SIMET

Thermoplastic threaded terminal block 6mm2 12 VDE tracks 40 pcs. 89093110

local index:
TEG538SIME
Catalog No:
89093110
EAN code:
8595055702358
Price:
103,73 €
gross / pkg.
including VAT 23%
Availability:
Product on individual request
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

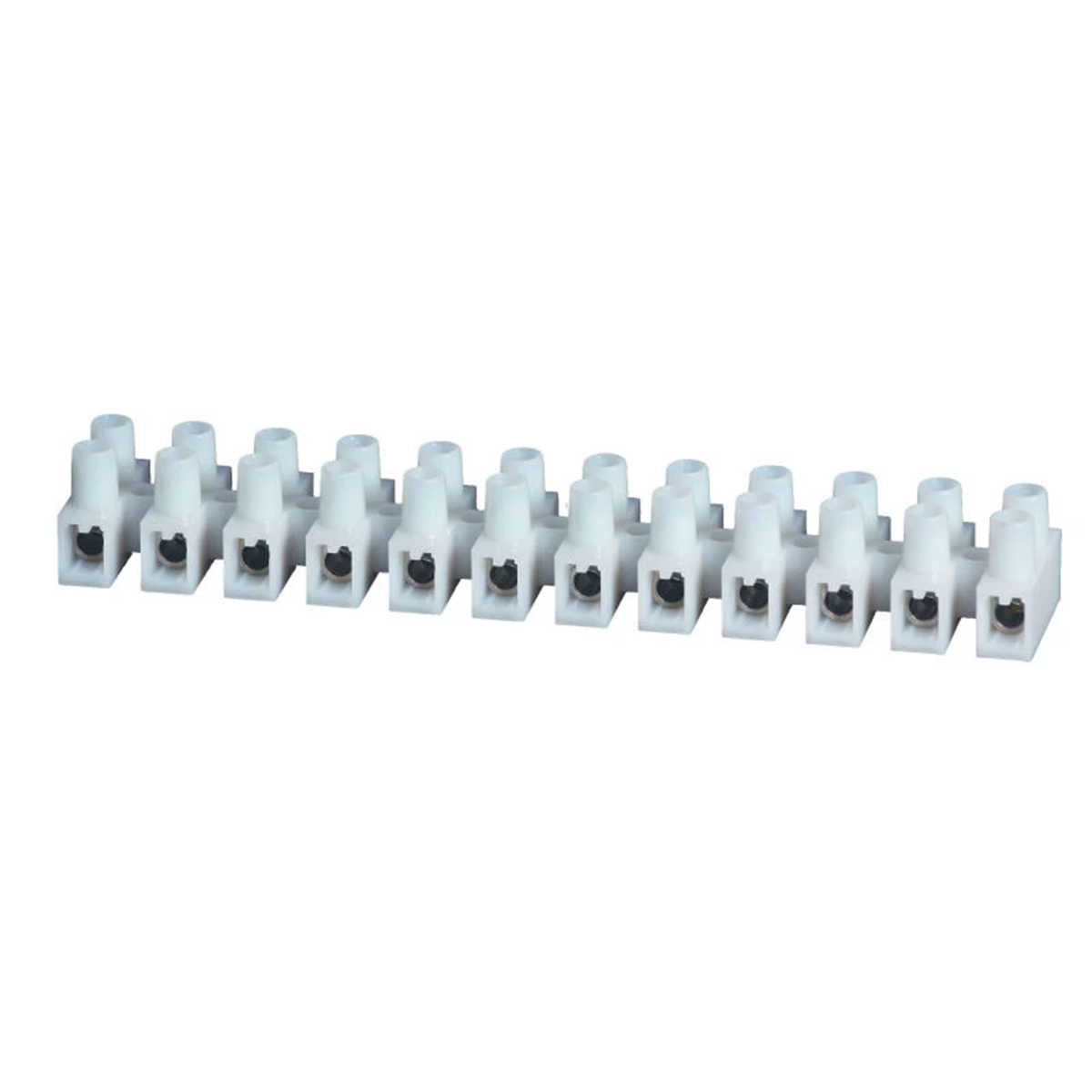

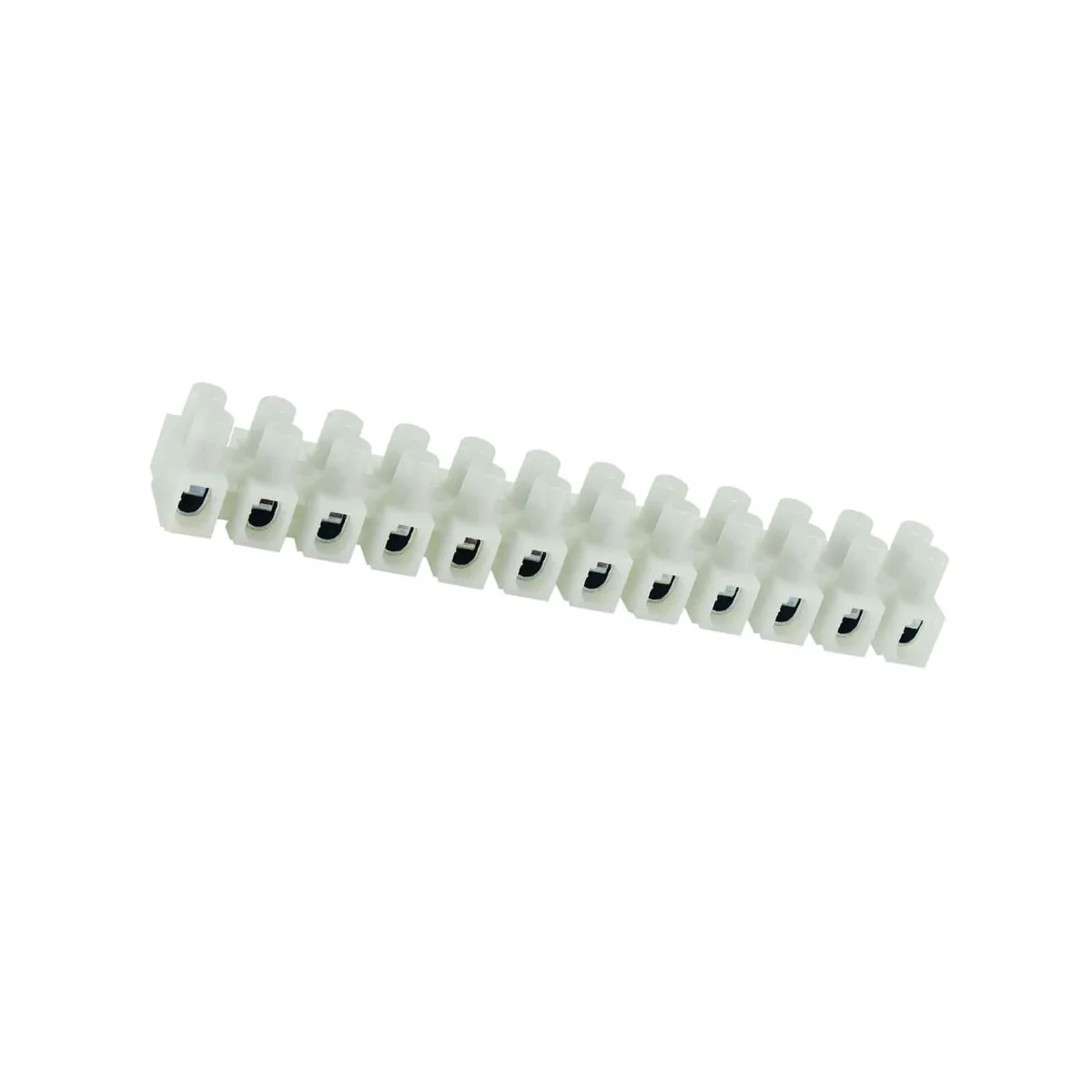

Terminal block, threaded, thermoplastic, 6mm2, 12 VDE tracks

Print the product sheet Report an error

Technical data

  • Color
    Other
  • Nominal cross-section [mm²]
    6
  • Libra
    46.1
  • Rated current [A]
    41
  • Pieces in the package
    40
  • Accurate color
    Natural

Other technical data

  • Drill hole distance centrically
    12 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    6 ... 6 mm²
  • Connectable conductor cross section solid-core
    6 ... 6 mm²
  • Rated current In
    41 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    19 mm
  • Closing plate required
    no
  • Transparent
    no
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    6 ... 6 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 85 °C
  • Width/grid dimension
    23.8 mm
  • Length
    140.7 mm
  • Colour
    White
