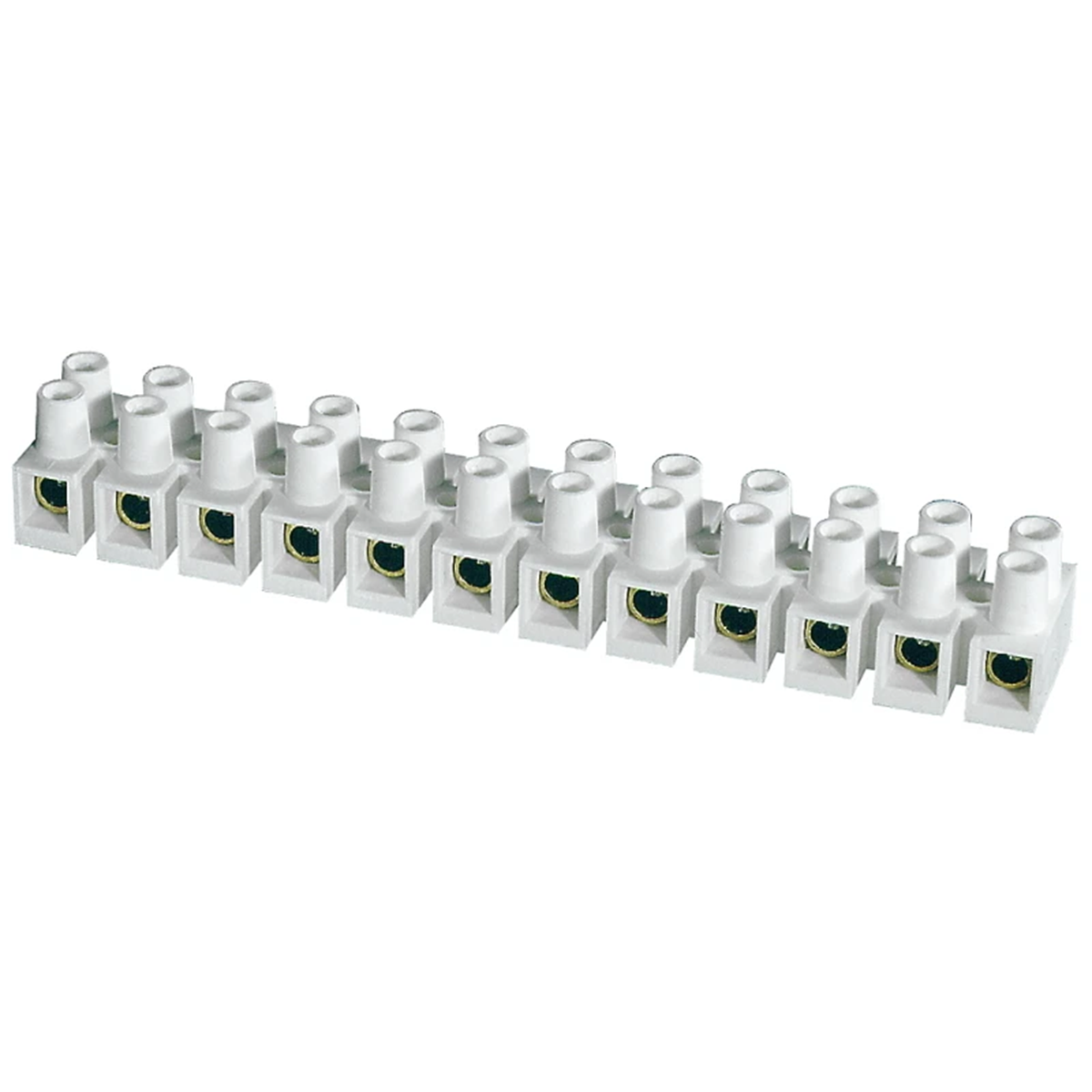

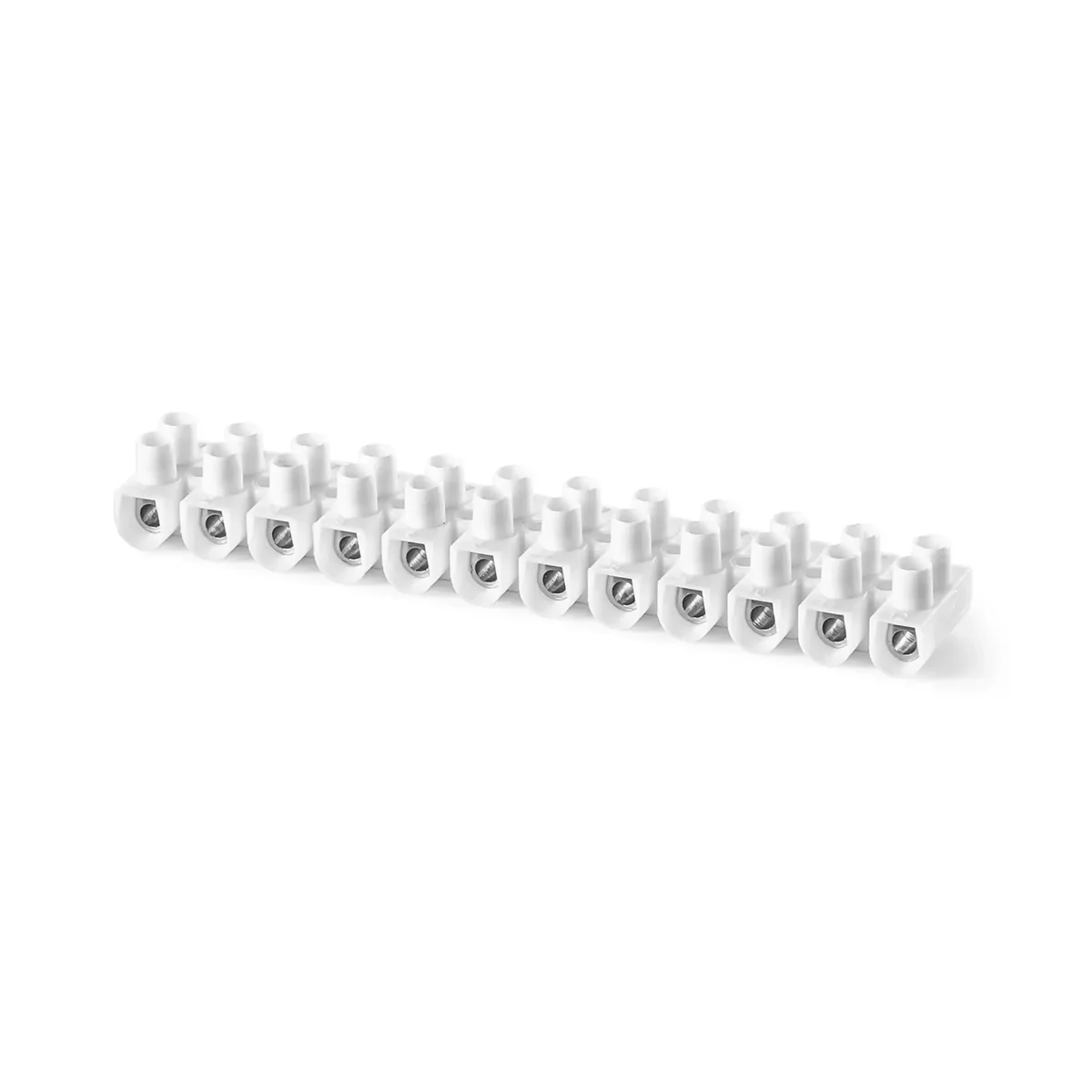

Thermoplastic threaded terminal block 6mm2 12 tracks 22412216

local index:
TEG712SIME
Catalog No:
22412216
EAN code:
5907813200502
Manufacturer: SIMET
Color: White
Rated current [A]: 41
Nominal cross-section [mm²]: 6
Price:
369,43 €
gross / pkg.
(including VAT 23%)
3,69 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Terminal strip, threaded, thermoplastic, 6mm2, 12 tracks

Technical data

  • Color
    White
  • Nominal cross-section [mm²]
    6
  • Libra
    39.9
  • Rated current [A]
    41
  • Pieces in the package
    100
  • PKWIU
    27.33.13.0

Other technical data

  • Drill hole distance centrically
    10 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 4 mm²
  • Connectable conductor cross section solid-core
    0 ... 6 mm²
  • Rated current In
    41 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    17,2 mm
  • Closing plate required
    No
  • Transparent
    No
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 4 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 85 °C
  • Width/grid dimension
    19 mm
  • Length
    117,7 mm
  • Colour
    White
