Connecting cables and wires
Connectors
Threaded fittings

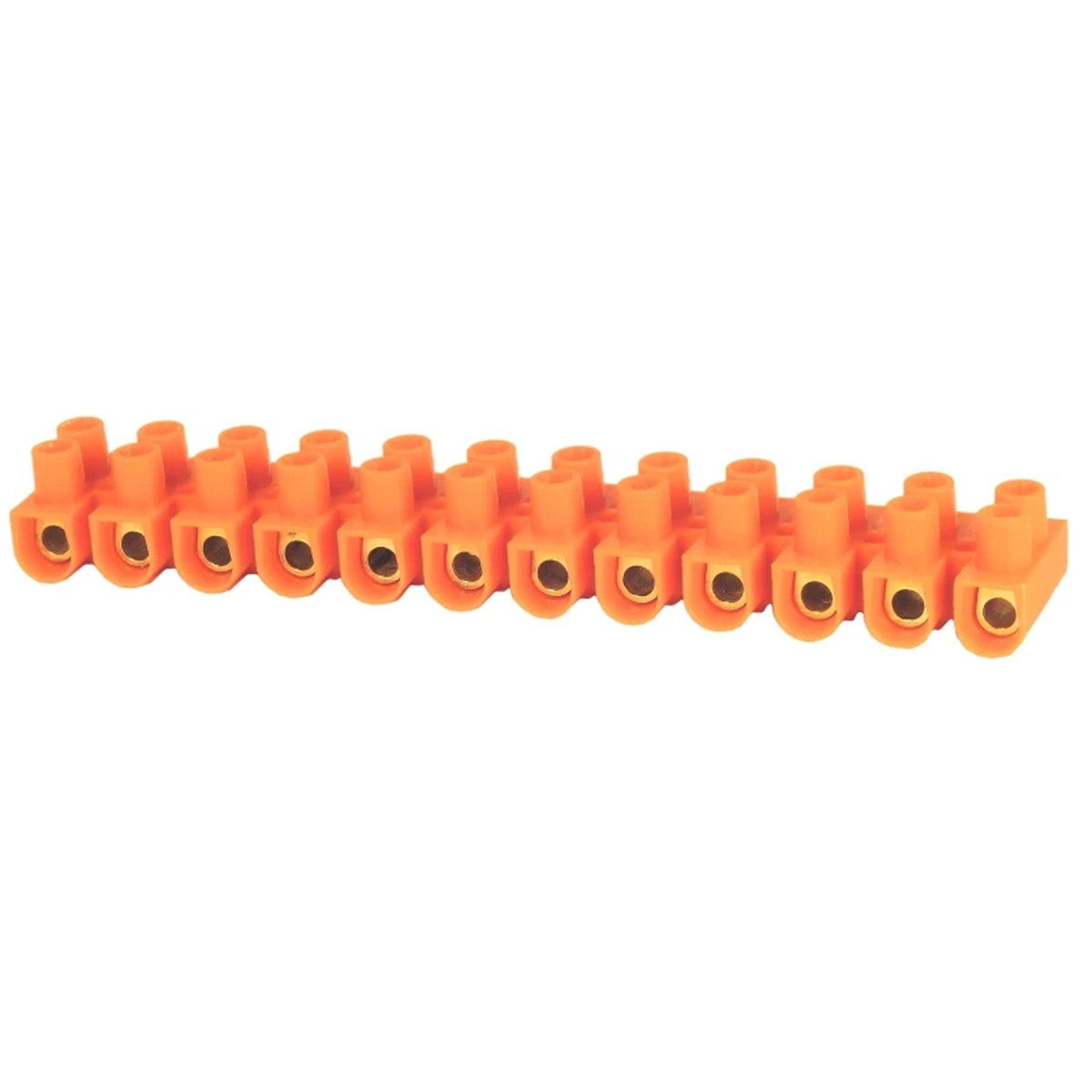

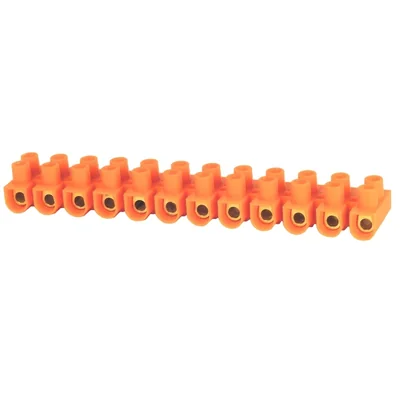

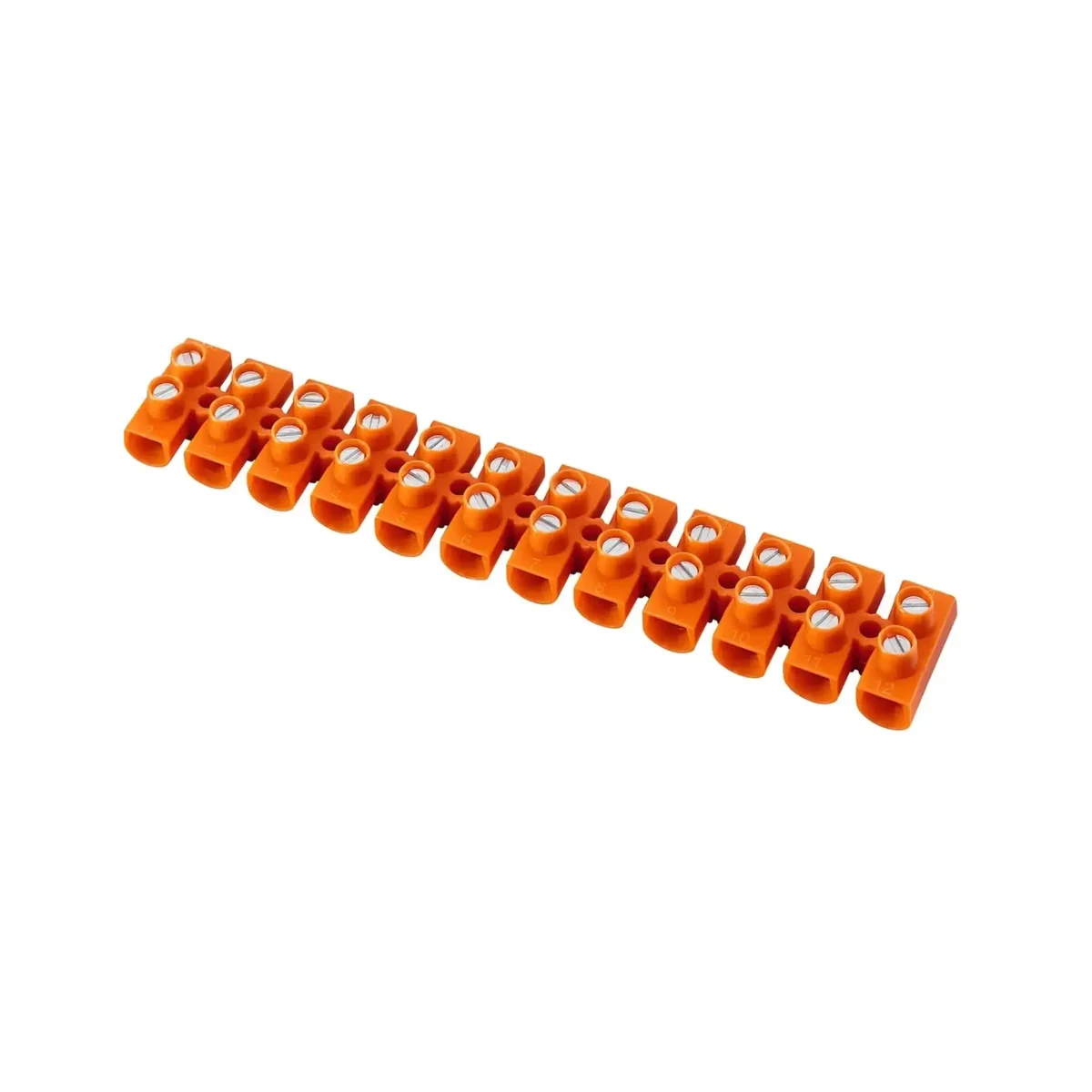

Thermoplastic threaded terminal block 6mm2 12 tracks 21412108
local index:
TEG703SIME
Catalog No:
21412108
EAN code:
5907813207730
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Silver
Rated current [A]:
41
Nominal cross-section [mm²]:
6
See full description
Price:
2,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1477 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Terminal strip, threaded, thermoplastic, 6mm2, 12 tracks
Technical data
Color
Silver
Nominal cross-section [mm²]
6
Accurate color
Orange
Rated current [A]
41
Libra
33
PKWIU
27.33.13.0
Other technical data
Drill hole distance centrically
9 mm
Connectable conductor cross section fine-strand without cable end sleeve
2,5 ... 6 mm²
Connectable conductor cross section solid-core
2,5 ... 4 mm²
Rated current In
41 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
15 mm
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
2,5 ... 6 mm²
Rated voltage
400 V
Type of electrical connection 2
Screw connection
Number of poles
12
Mounting method
Direct mounting
Operating temperature
-40 ... 55 °C
Width/grid dimension
19 mm
Length
118 mm
Colour
Orange
See more >>
