SIMET

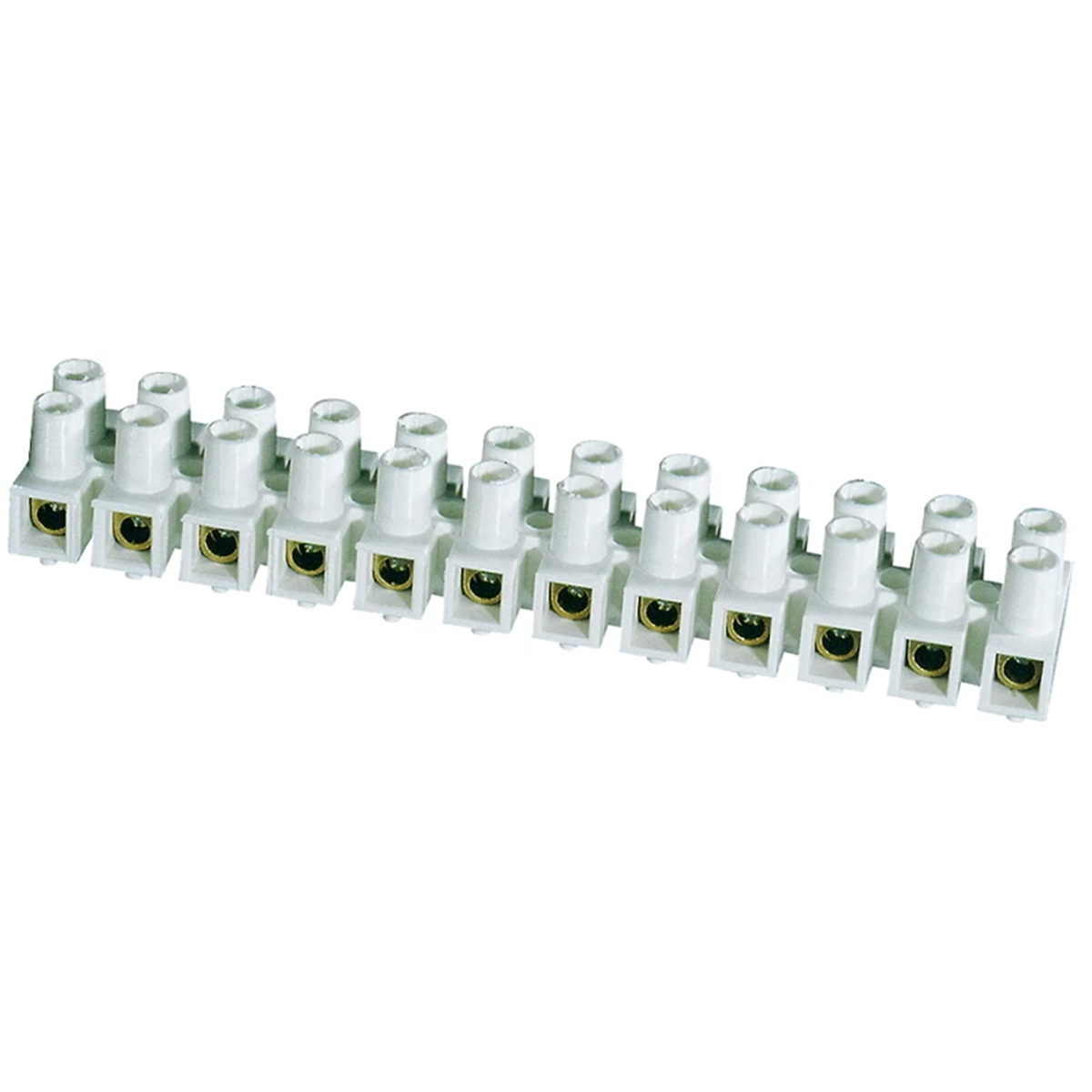

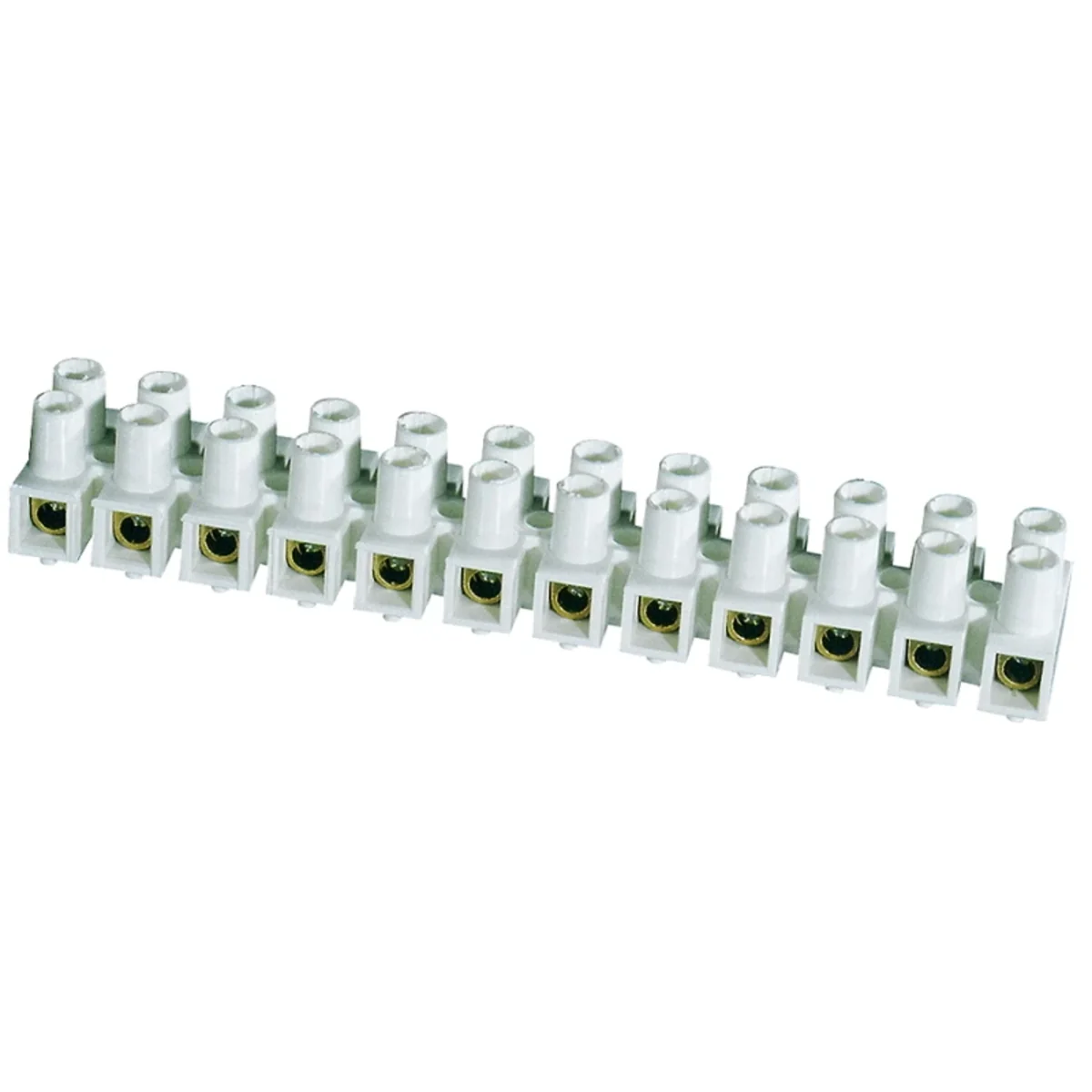

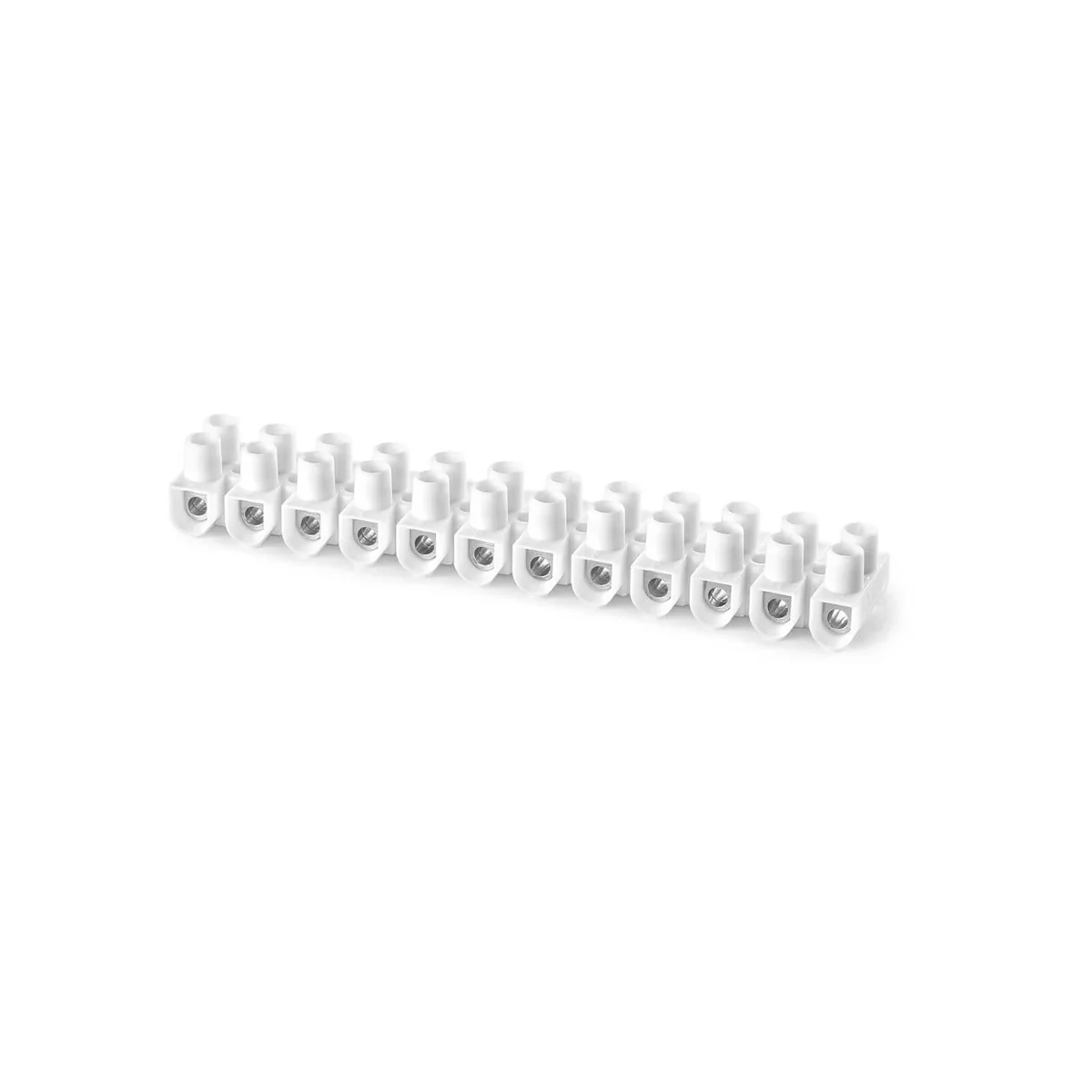

Thermoplastic threaded terminal block 4mm2 12 tracks 22310216

local index:
TEG006SIME
Catalog No:
22310216
EAN code:
5907813200342
Price:
279,12 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Terminal strip, threaded, thermoplastic, 4mm2, 12 tracks

Technical data

  • Color
    White
  • Nominal cross-section [mm²]
    4
  • Libra
    32.4
  • Rated current [A]
    32
  • Pieces in the package
    100
  • Accurate color
    White

Other technical data

  • Drill hole distance centrically
    9 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 2,5 mm²
  • Connectable conductor cross section solid-core
    0 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    16,8 mm
  • Closing plate required
    no
  • Transparent
    no
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 2,5 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 85 °C
  • Width/grid dimension
    18 mm
  • Length
    106 mm
  • Colour
    White
