el12 Connecting cables and wires Connectors Threaded fittings Thermoplastic threaded terminal block 4mm2 12 tracks 100pcs.
Thermoplastic threaded terminal block 4mm2 12 tracks 100pcs.

Click on the photo to enlarge

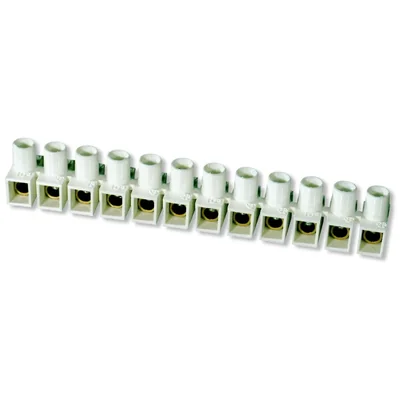

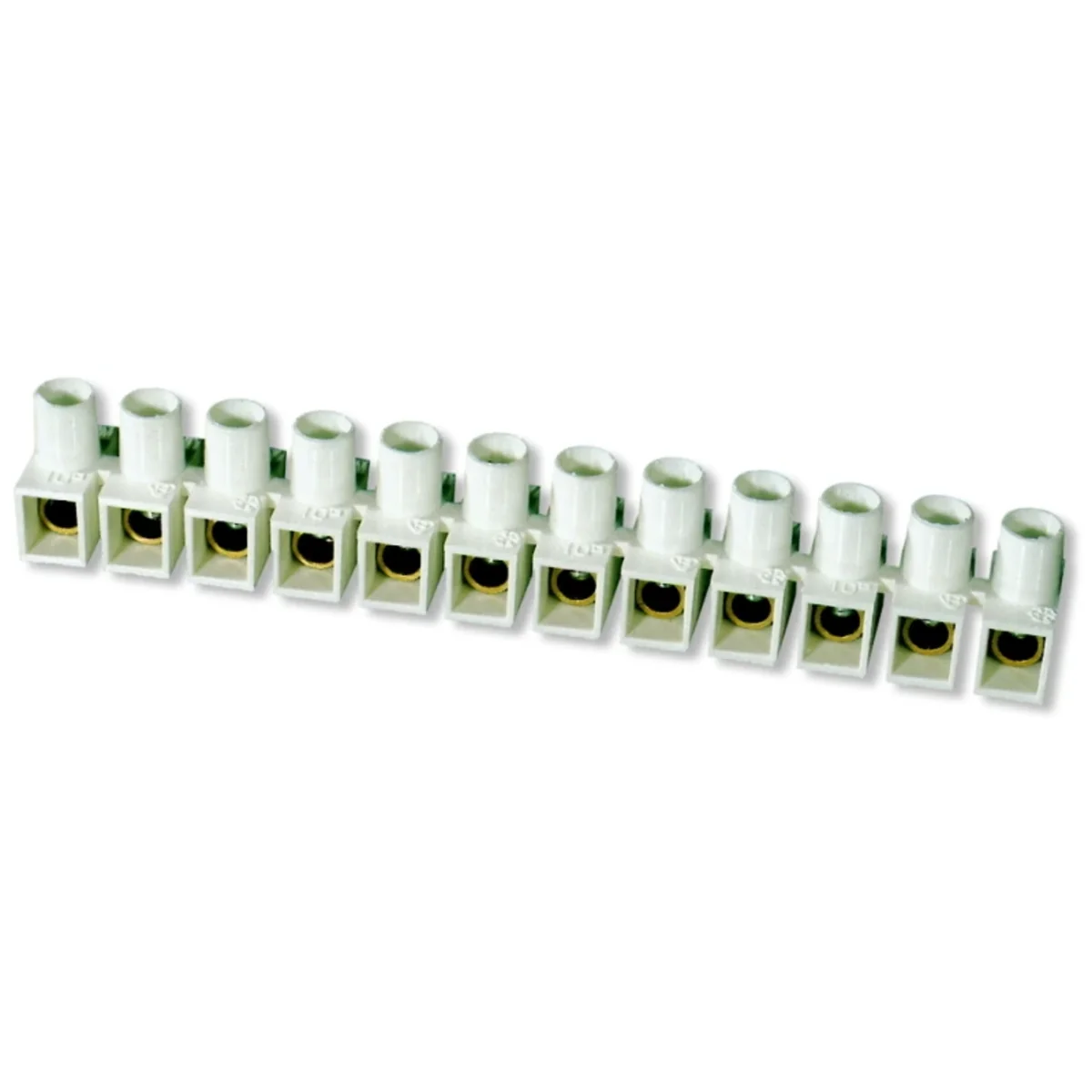

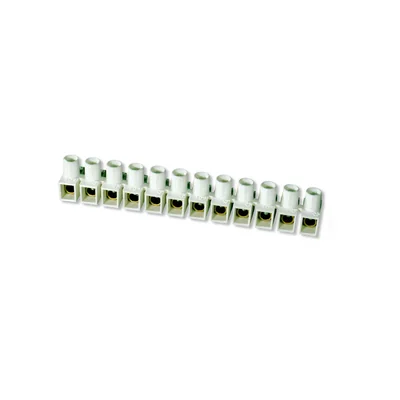

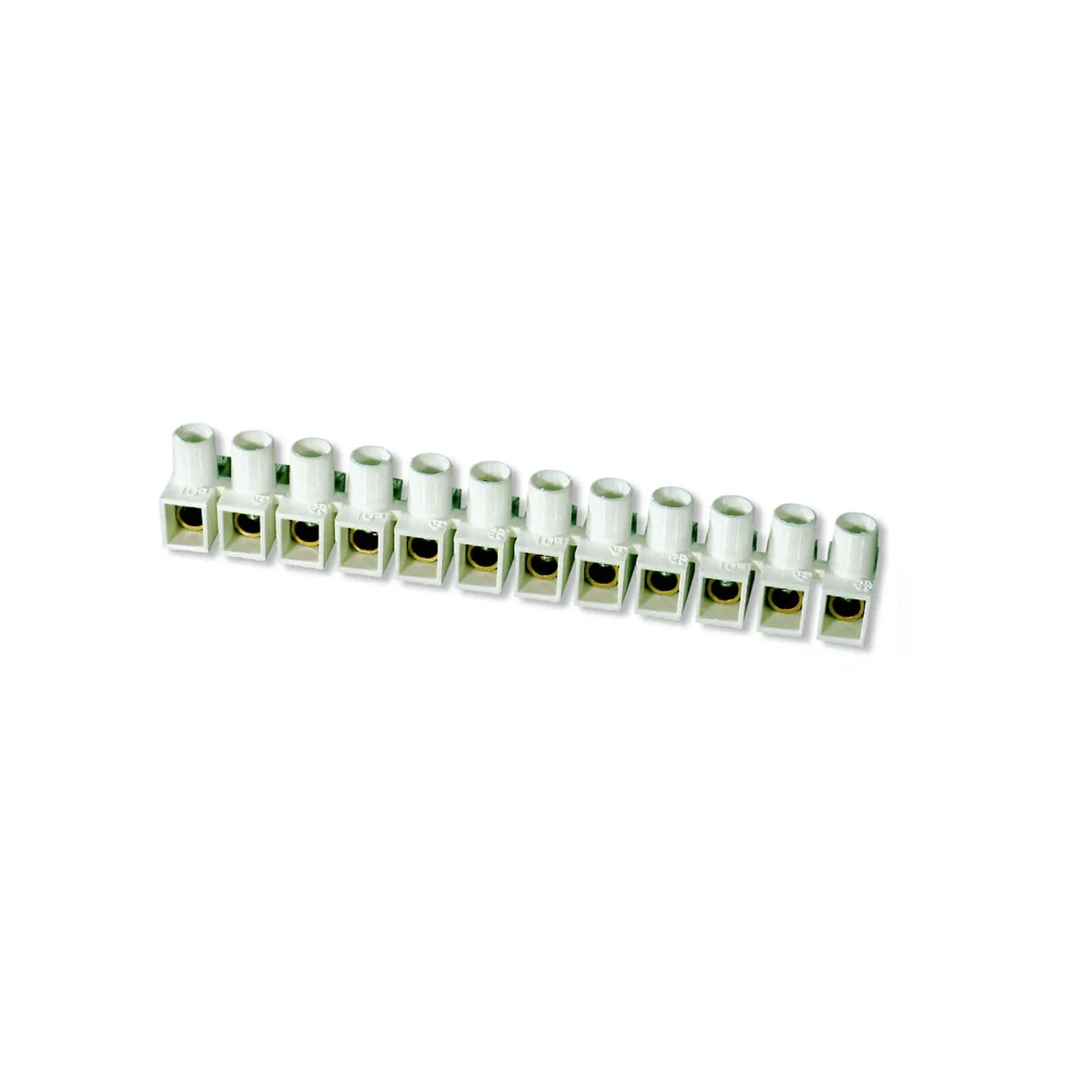

Thermoplastic threaded terminal block 4mm2 12 tracks 100pcs.
SIMET

Thermoplastic threaded terminal block 4mm2 12 tracks 100pcs. 22522216

local index:
TEG716SIME
Catalog No:
22522216
EAN code:
5907813200748
Price:
202,73 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Terminal strip, threaded, thermoplastic, 4mm2, 12 poles (single row - terminal 10mm2, )

Print the product sheet Report an error

Technical data

  • Color
    White
  • Nominal cross-section [mm²]
    4
  • Libra
    37.7
  • Rated current [A]
    57
  • Pieces in the package
    100
  • Accurate color
    White

Other technical data

  • Drill hole distance centrically
    10 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 4 mm²
  • Connectable conductor cross section solid-core
    0 ... 4 mm²
  • Rated current In
    57 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    1
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    18 mm
  • Closing plate required
    no
  • Transparent
    no
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 4 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 85 °C
  • Width/grid dimension
    14.5 mm
  • Length
    118 mm
  • Colour
    White
