Connecting cables and wires
Connectors
Threaded fittings

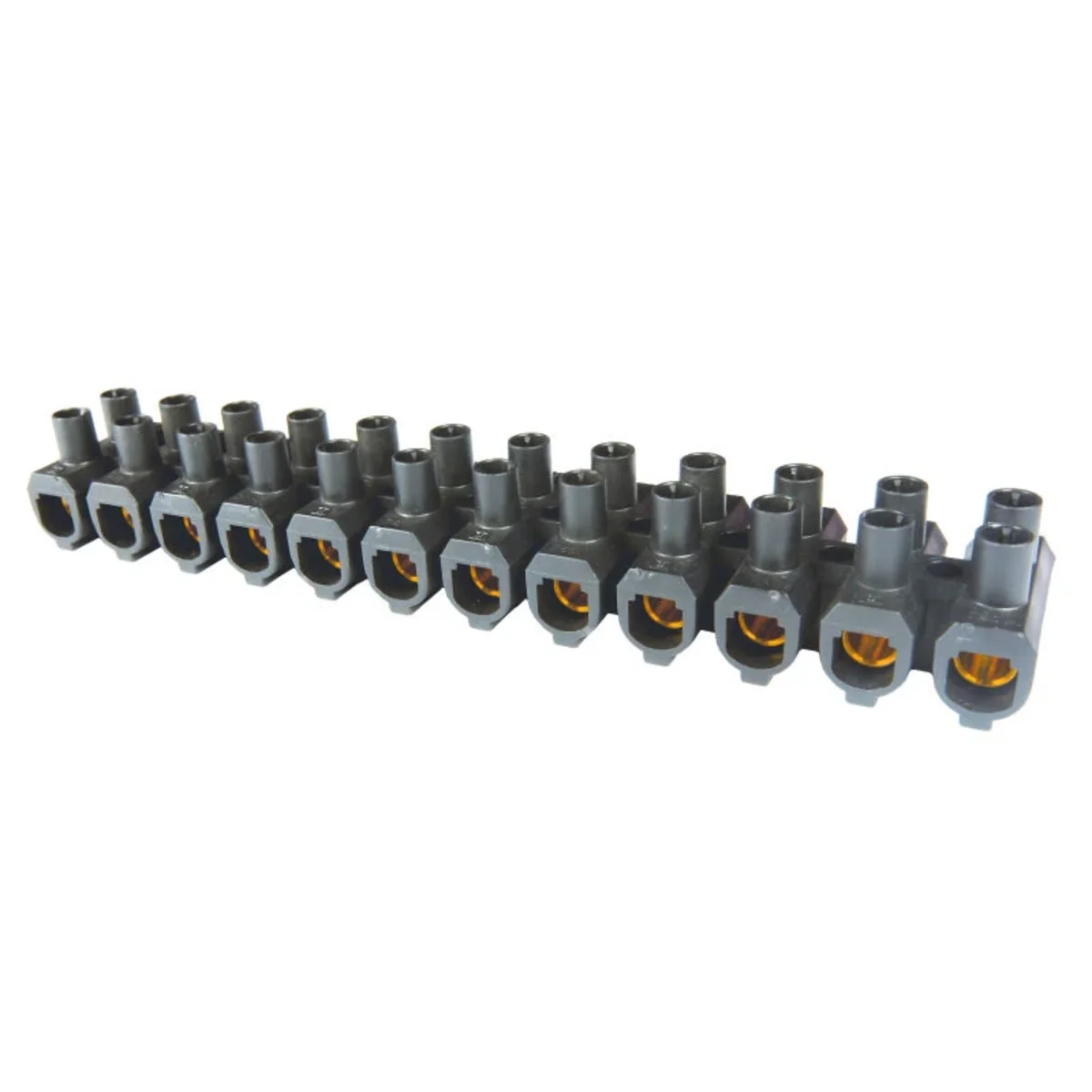

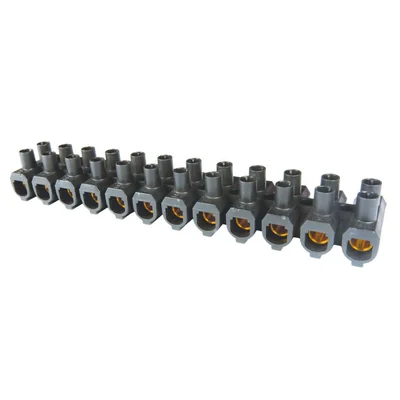

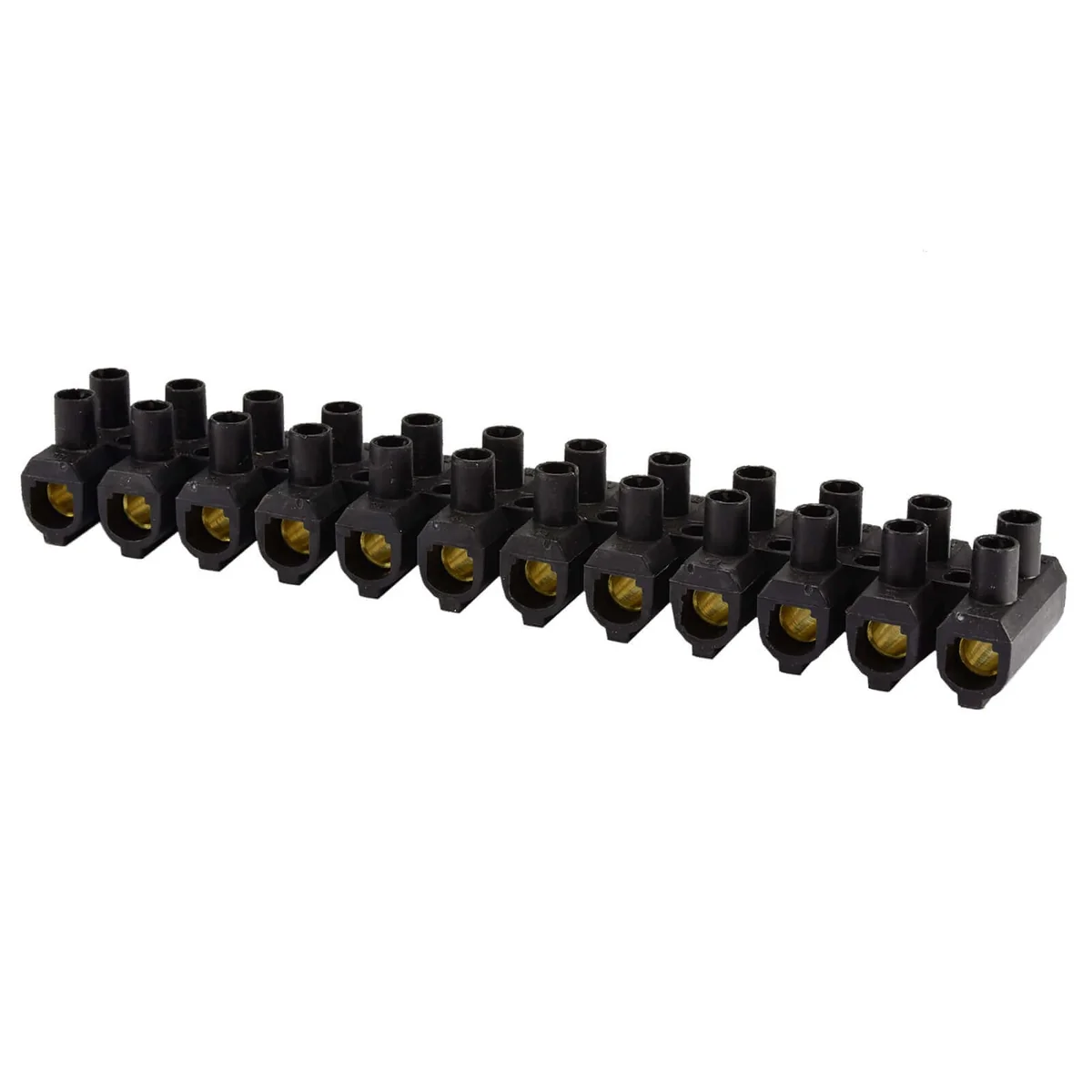

Thermoplastic threaded terminal block 35 mm2 12 tracks 10 pcs. 89150007
local index:
TEG720SIME
Catalog No:
89150007
EAN code:
9006604118944
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Black
Nominal cross-section [mm²]:
35
Pieces in the package:
10
See full description
Price:
163,16 €
gross / pkg.
(including VAT 23%)
16,32 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Thermoplastic threaded terminal block, 35 mm2, 12 poles
Technical data
Color
Black
Pieces in the package
10
Accurate color
Black
Nominal cross-section [mm²]
35
Libra
208
PKWIU
27.33.13.0
Other technical data
Drill hole distance centrically
18 mm
Connectable conductor cross section fine-strand without cable end sleeve
0 ... 35 mm²
Connectable conductor cross section solid-core
0 ... 35 mm²
Rated current In
0 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Wysokość przy najniższym sposobie montażu
29 mm
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
0 ... 35 mm²
Rated voltage
750 V
Type of electrical connection 2
Screw connection
Number of poles
12
Mounting method
Direct mounting
Operating temperature
-25 ... 110 °C
Width/grid dimension
36 mm
Length
212 mm
Colour
Black
