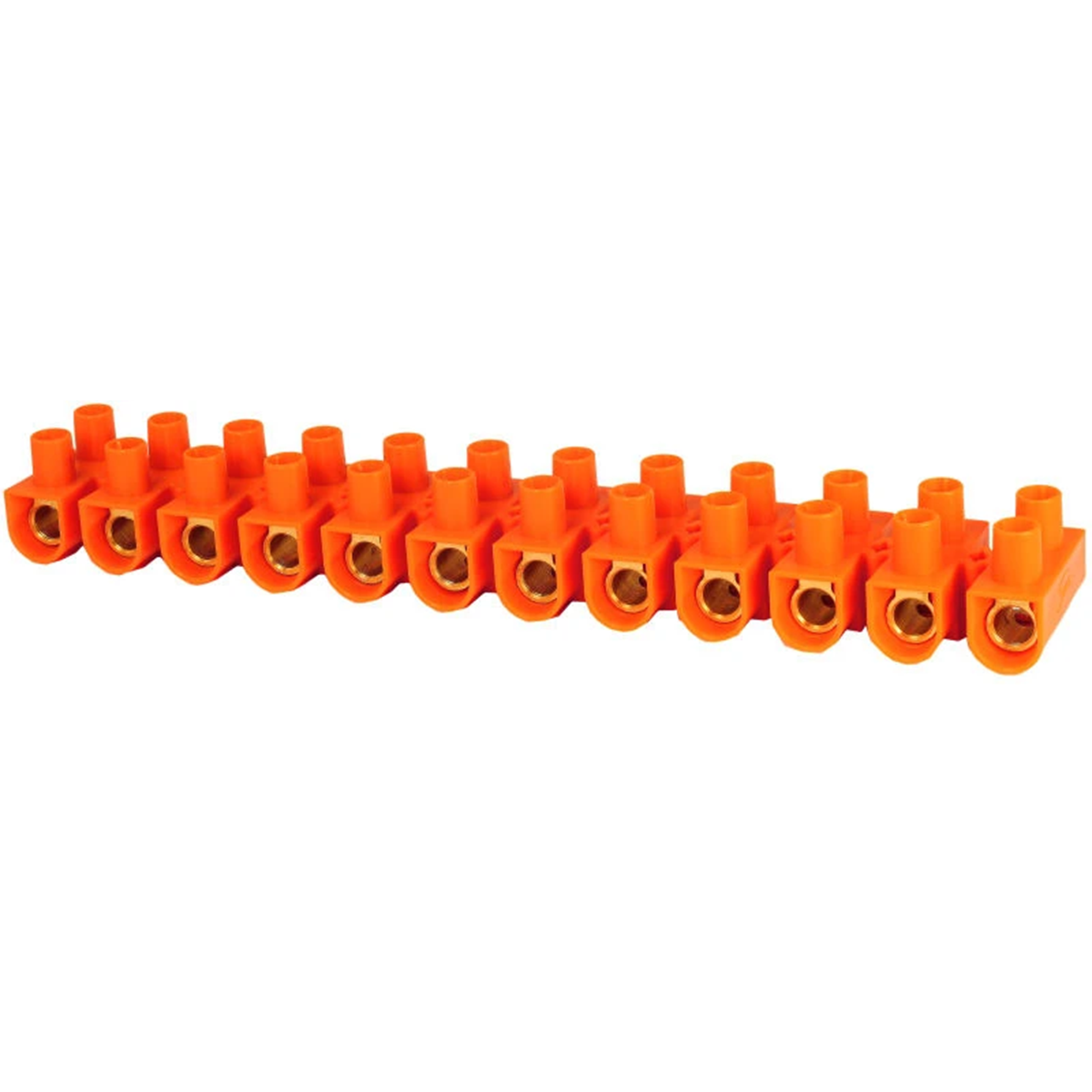

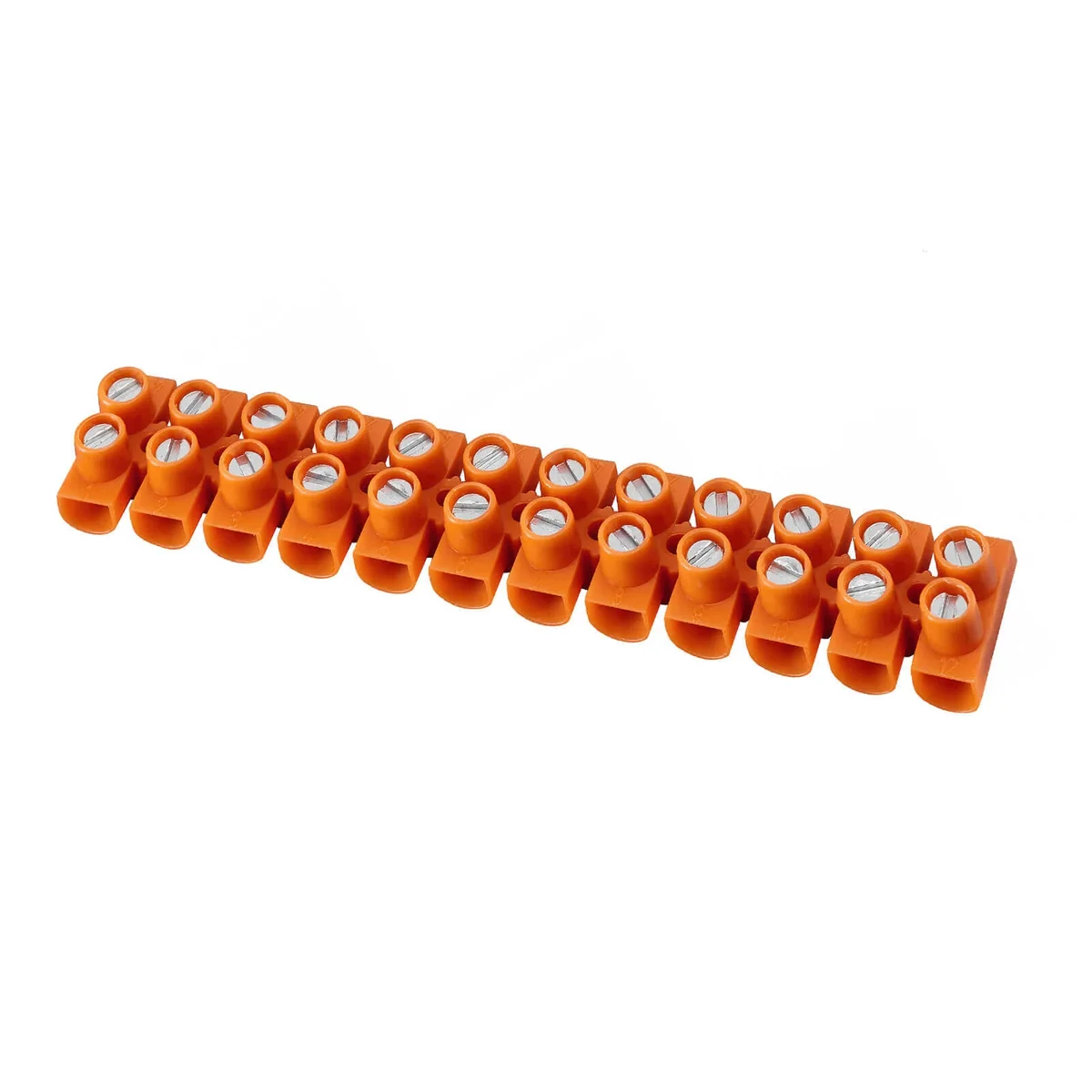

Thermoplastic threaded terminal block 25mm2 12 tracks 21712008
local index:
TEG717SIME
Catalog No:
21712008
EAN code:
5907813217272
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Silver
Rated current [A]:
81
Nominal cross-section [mm²]:
25
See full description
Price:
8,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 193 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Terminal strip, threaded, thermoplastic, 25mm2, 12 tracks
Technical data
Color
Silver
Nominal cross-section [mm²]
25
Accurate color
Orange
Rated current [A]
81
Libra
167
PKWIU
27.33.13.0
Other technical data
Drill hole distance centrically
18 mm
Connectable conductor cross section fine-strand without cable end sleeve
10 ... 16 mm²
Connectable conductor cross section solid-core
10 ... 25 mm²
Rated current In
81 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
25 mm
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
10 ... 16 mm²
Rated voltage
750 V
Type of electrical connection 2
Screw connection
Number of poles
12
Mounting method
Direct mounting
Operating temperature
-40 ... 85 °C
Width/grid dimension
33 mm
Length
212 mm
Colour
Orange
See more >>
