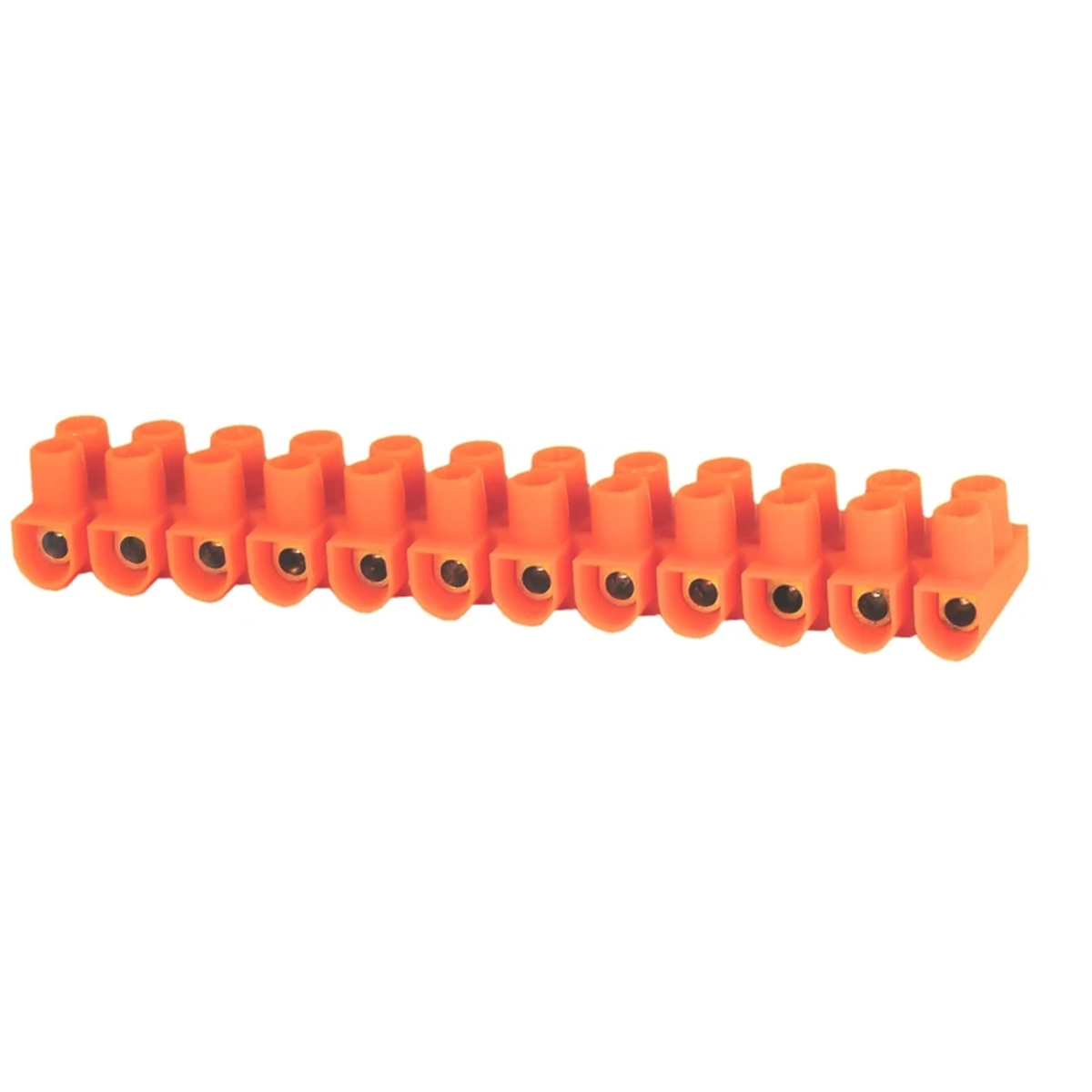

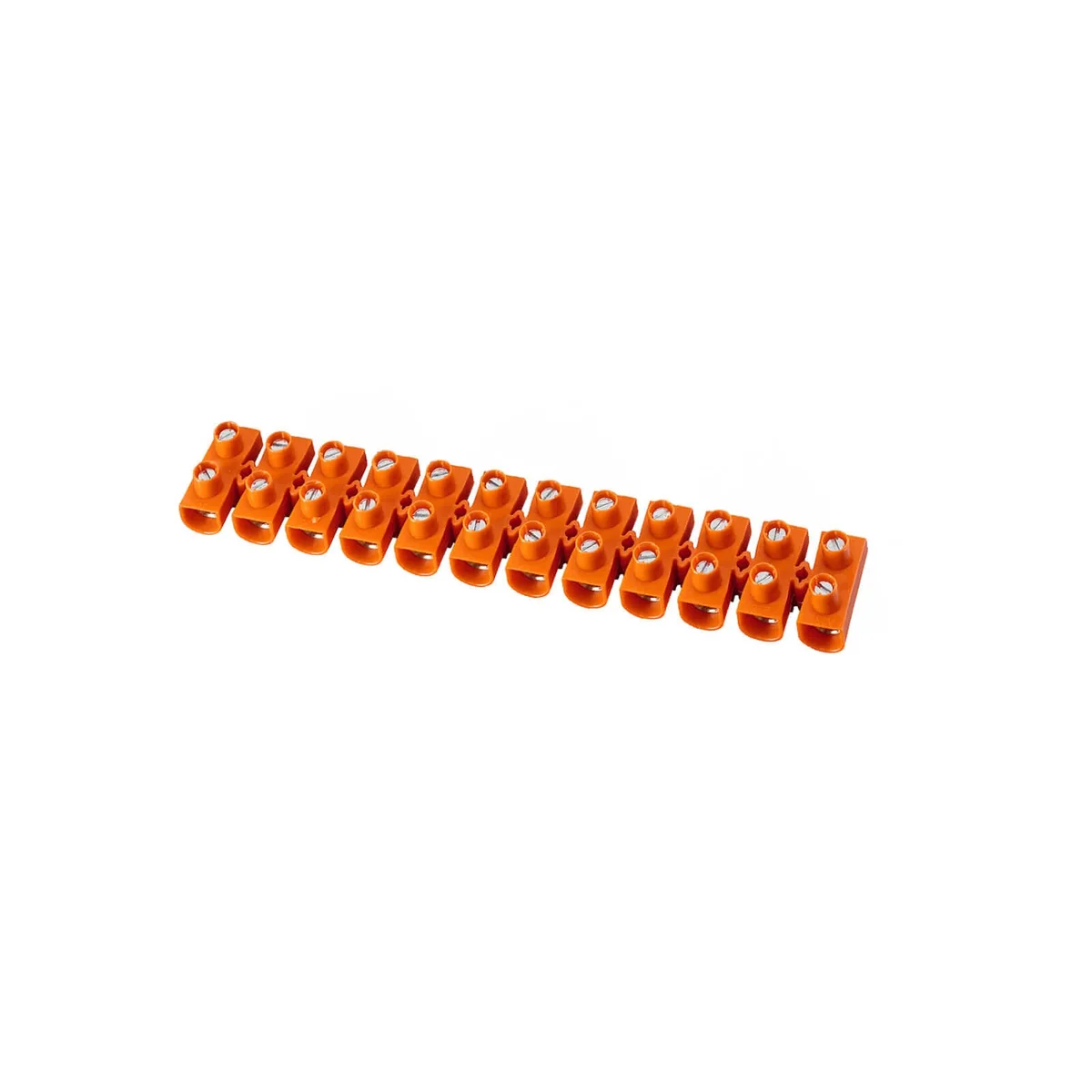

Thermoplastic threaded terminal block 2.5mm2 12 tracks 21210108
local index:
TEG095SIME
Catalog No:
21210108
EAN code:
5907813207655
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Silver
Rated current [A]:
24
Nominal cross-section [mm²]:
2.5
See full description
Price:
1,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1156 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Print
Ask about the product
Product description
Technical data
Product description
Terminal block, threaded, thermoplastic, 2.5mm2, 12 tracks
Technical data
Color
Silver
Nominal cross-section [mm²]
2.5
PKWIU
27.33.13.0
Rated current [A]
24
Accurate color
Orange
Other technical data
Drill hole distance centrically
8 mm
Connectable conductor cross section fine-strand without cable end sleeve
1 ... 2,5 mm²
Connectable conductor cross section solid-core
1 ... 2,5 mm²
Rated current In
24 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
13 mm
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
1 ... 2,5 mm²
Rated voltage
450 V
Type of electrical connection 2
Screw connection
Number of poles
12
Mounting method
Direct mounting
Operating temperature
-40 ... 55 °C
Width/grid dimension
16 mm
Length
94 mm
Colour
Orange
See more >>
