el12 Connecting cables and wires Connectors Threaded fittings Thermoplastic threaded terminal block 16mm2 12 tracks

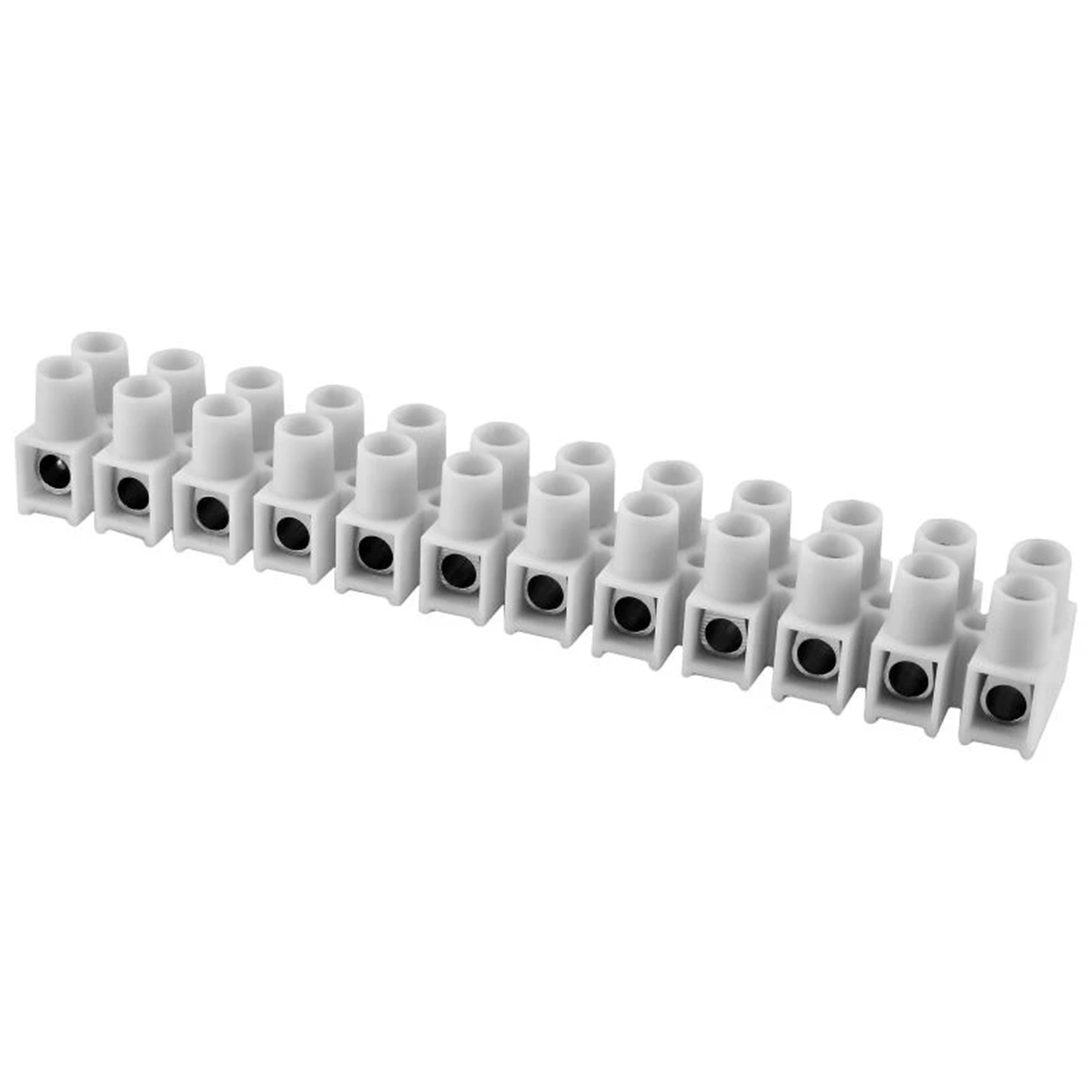

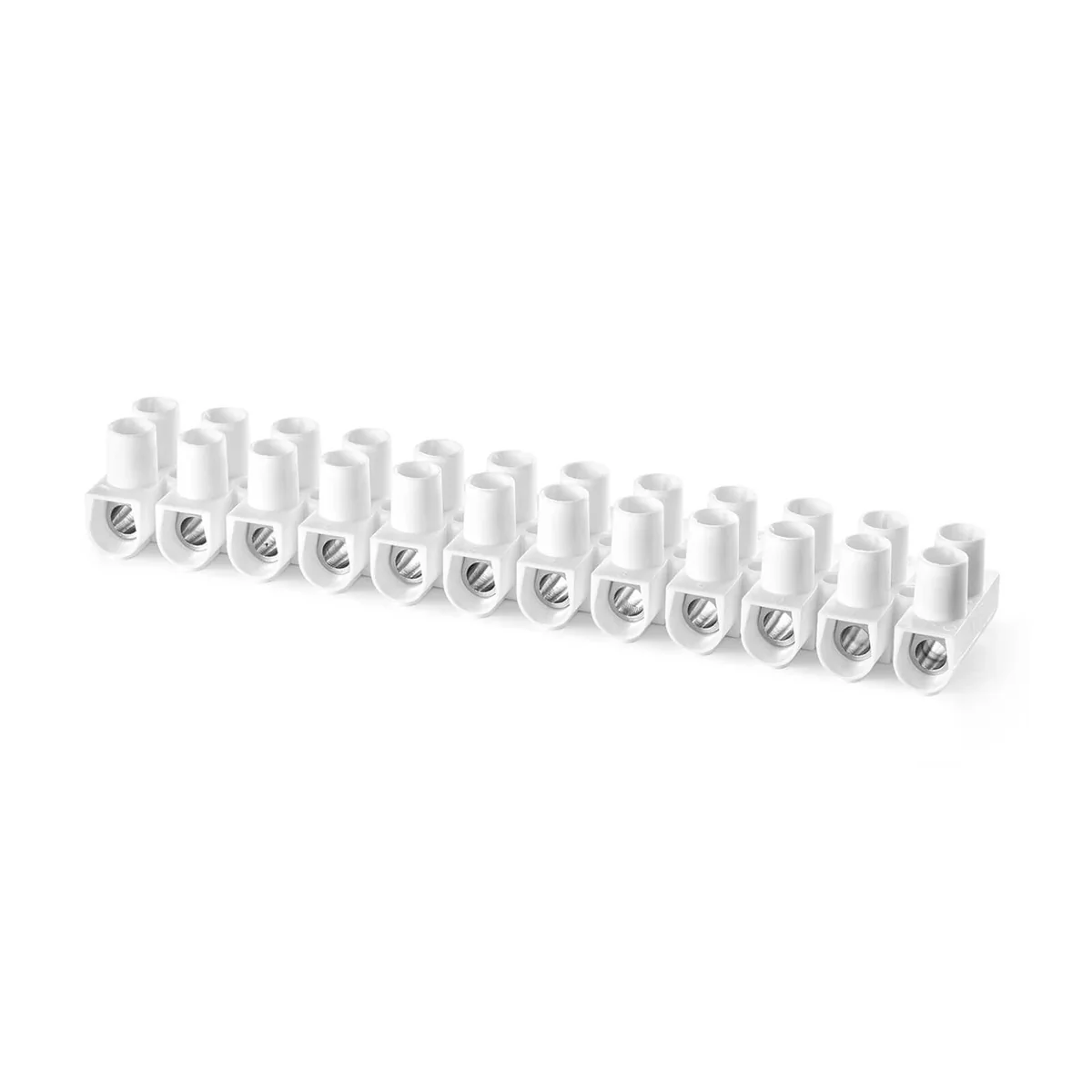

Thermoplastic threaded terminal block 16mm2 12 tracks

Click on the photo to enlarge

Thermoplastic threaded terminal block 16mm2 12 tracks
SIMET

Thermoplastic threaded terminal block 16mm2 12 tracks 22612216

local index:
TEG008SIME
Catalog No:
22612216
EAN code:
5907813200663
Price:
263,27 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Terminal strip, threaded, thermoplastic, 16mm2, 12 tracks

Print the product sheet Report an error

Technical data

  • Color
    White
  • Nominal cross-section [mm²]
    16
  • Libra
    94.1
  • Rated current [A]
    76
  • Pieces in the package
    50
  • Accurate color
    White

Other technical data

  • Drill hole distance centrically
    13 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 10 mm²
  • Connectable conductor cross section solid-core
    0 ... 16 mm²
  • Rated current In
    76 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    22 mm
  • Closing plate required
    no
  • Transparent
    no
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 10 mm²
  • Rated voltage
    400 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -25 ... 85 °C
  • Width/grid dimension
    22 mm
  • Length
    153 mm
  • Colour
    White
