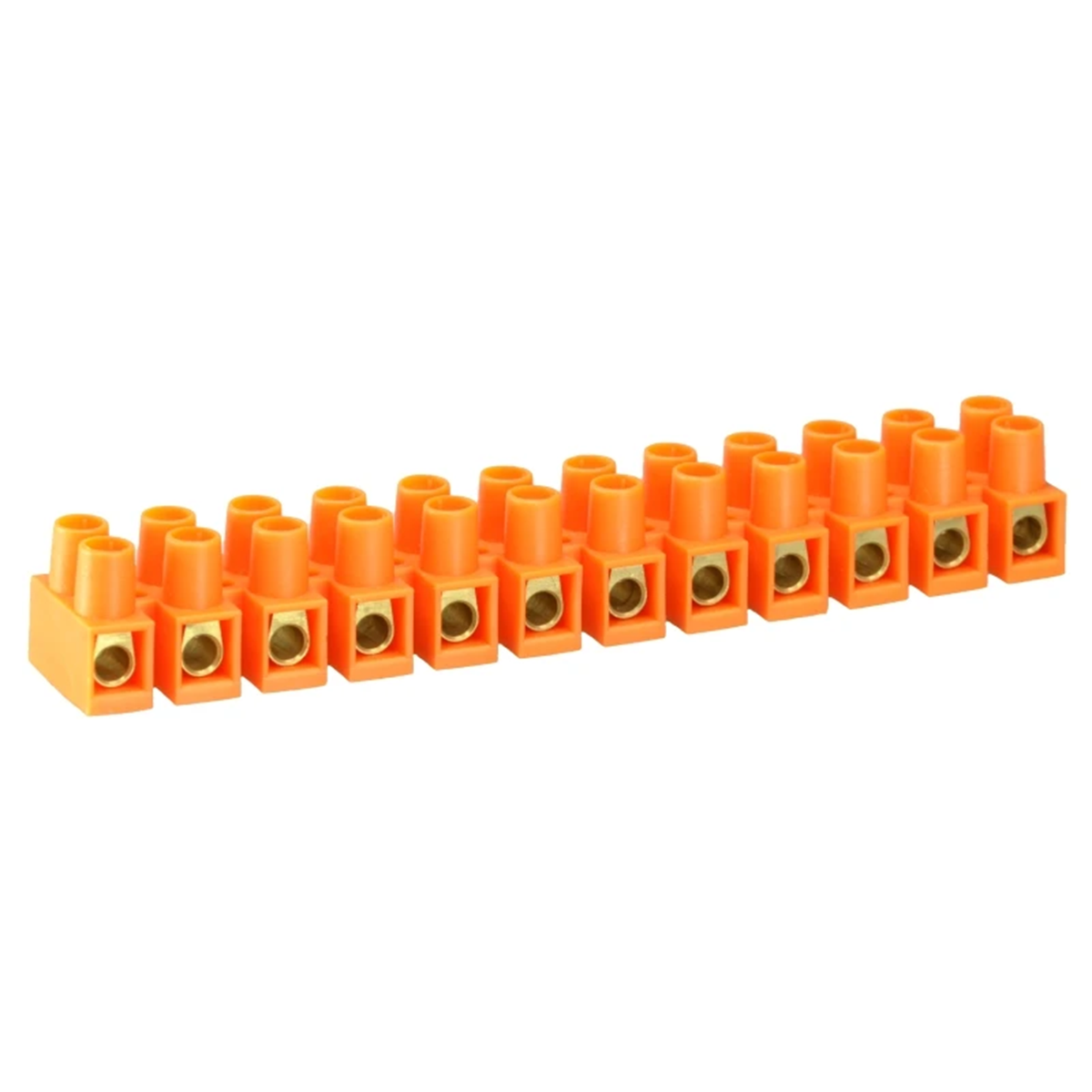

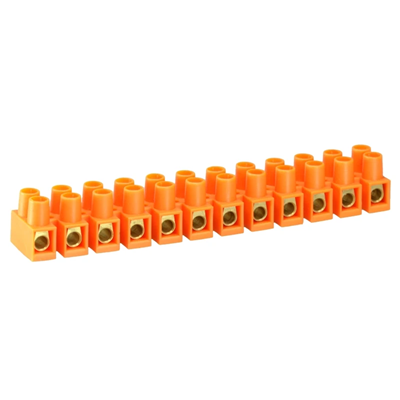

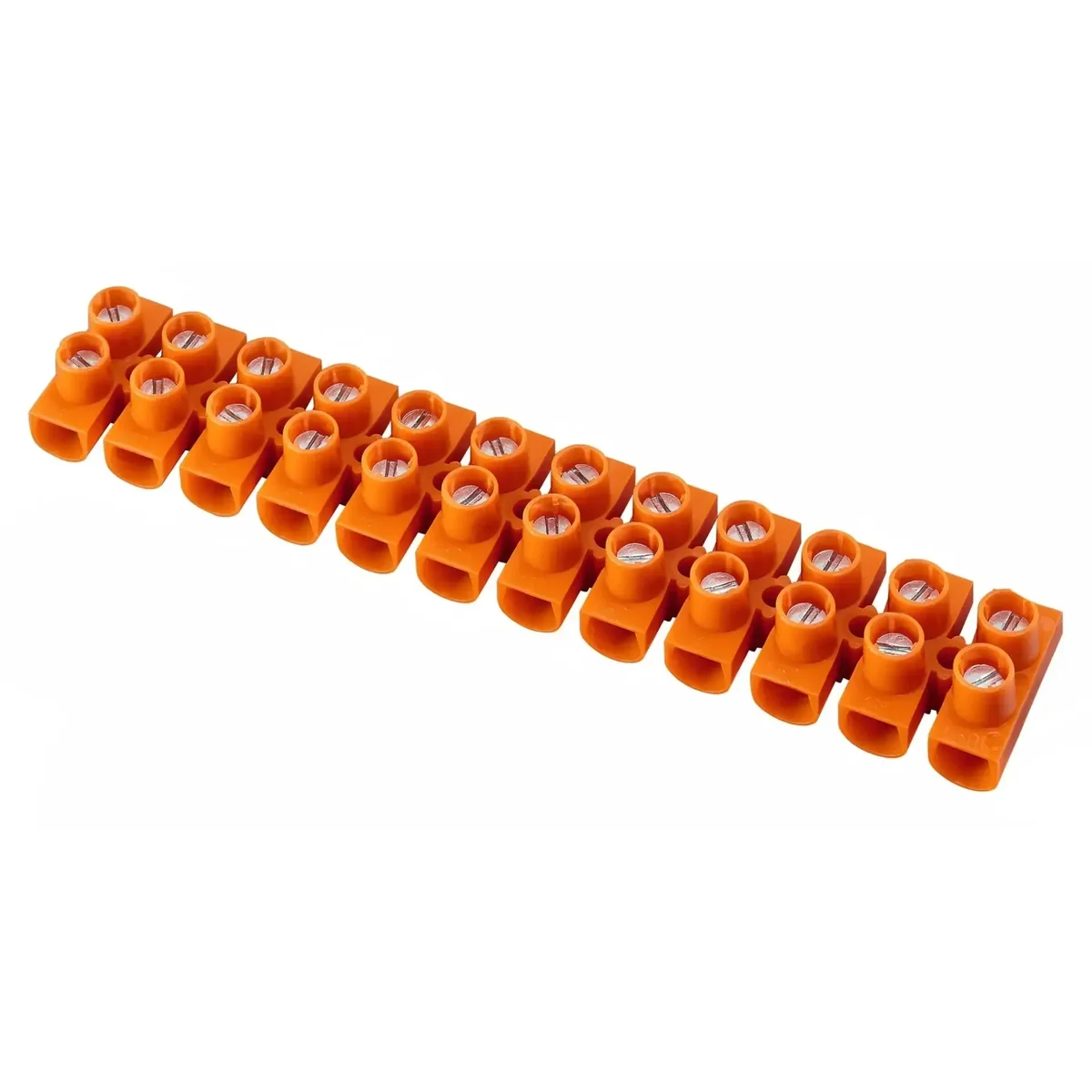

Thermoplastic threaded terminal block 16mm2 12 tracks 21612108
local index:
TEG711SIME
Catalog No:
21612108
EAN code:
5907813207815
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
Silver
Rated current [A]:
76
Nominal cross-section [mm²]:
16
See full description
Price:
4,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 534 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Terminal strip, threaded, thermoplastic, 16mm2, 12 tracks
Technical data
Color
Silver
Nominal cross-section [mm²]
16
Accurate color
Orange
Rated current [A]
76
Libra
95
PKWIU
27.33.13.0
Other technical data
Drill hole distance centrically
13 mm
Connectable conductor cross section fine-strand without cable end sleeve
6 ... 10 mm²
Connectable conductor cross section solid-core
6 ... 12 mm²
Rated current In
76 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Wysokość przy najniższym sposobie montażu
22 mm
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
6 ... 10 mm²
Rated voltage
400 V
Type of electrical connection 2
Screw connection
Number of poles
12
Mounting method
Direct mounting
Operating temperature
-40 ... 55 °C
Width/grid dimension
27 mm
Length
153 mm
Colour
Orange
See more >>
