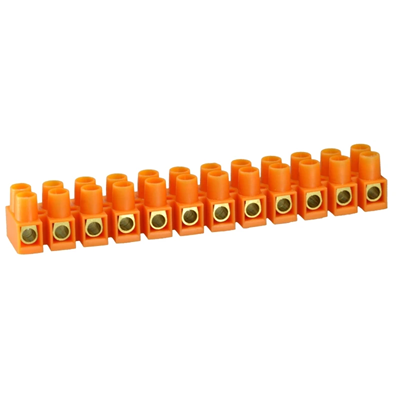

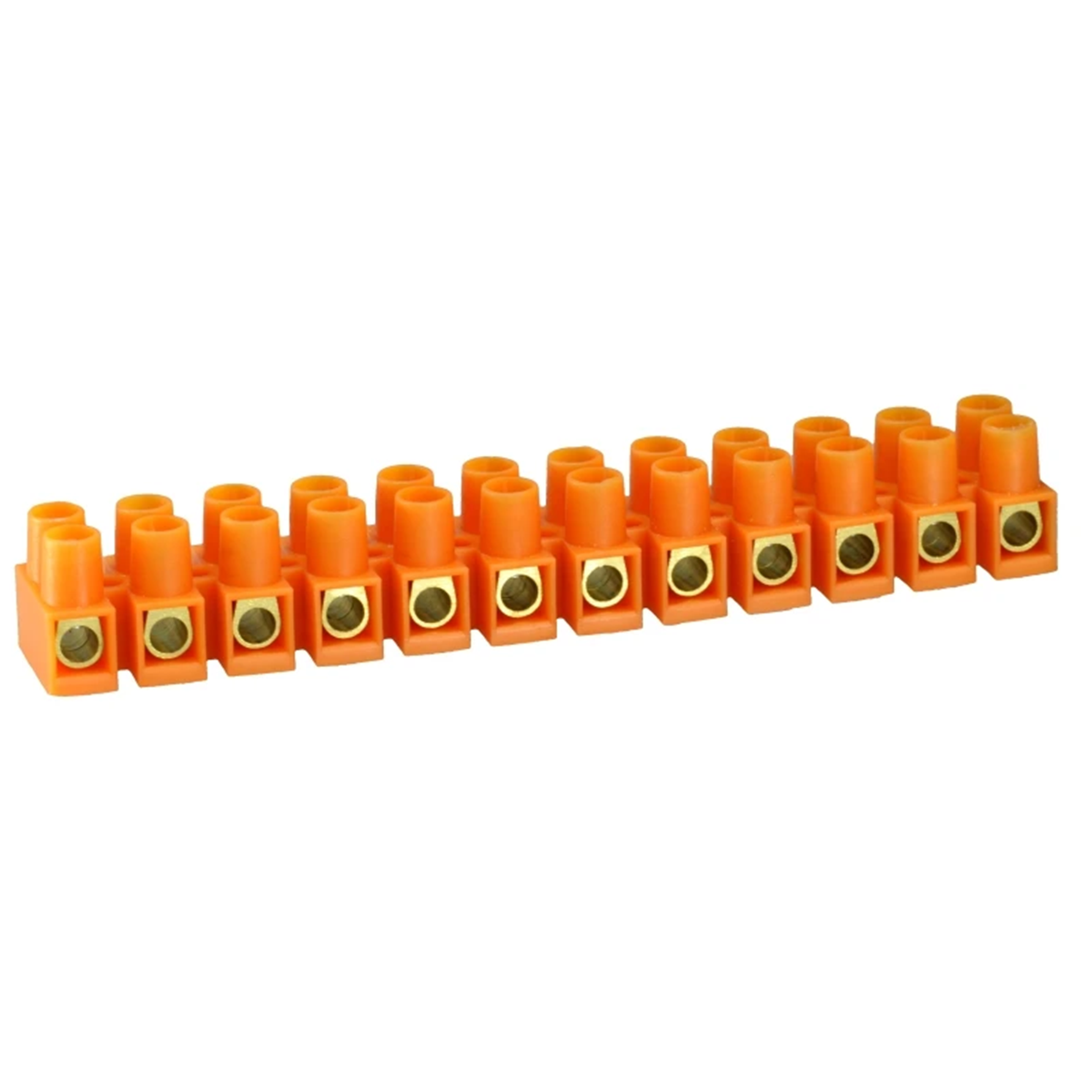

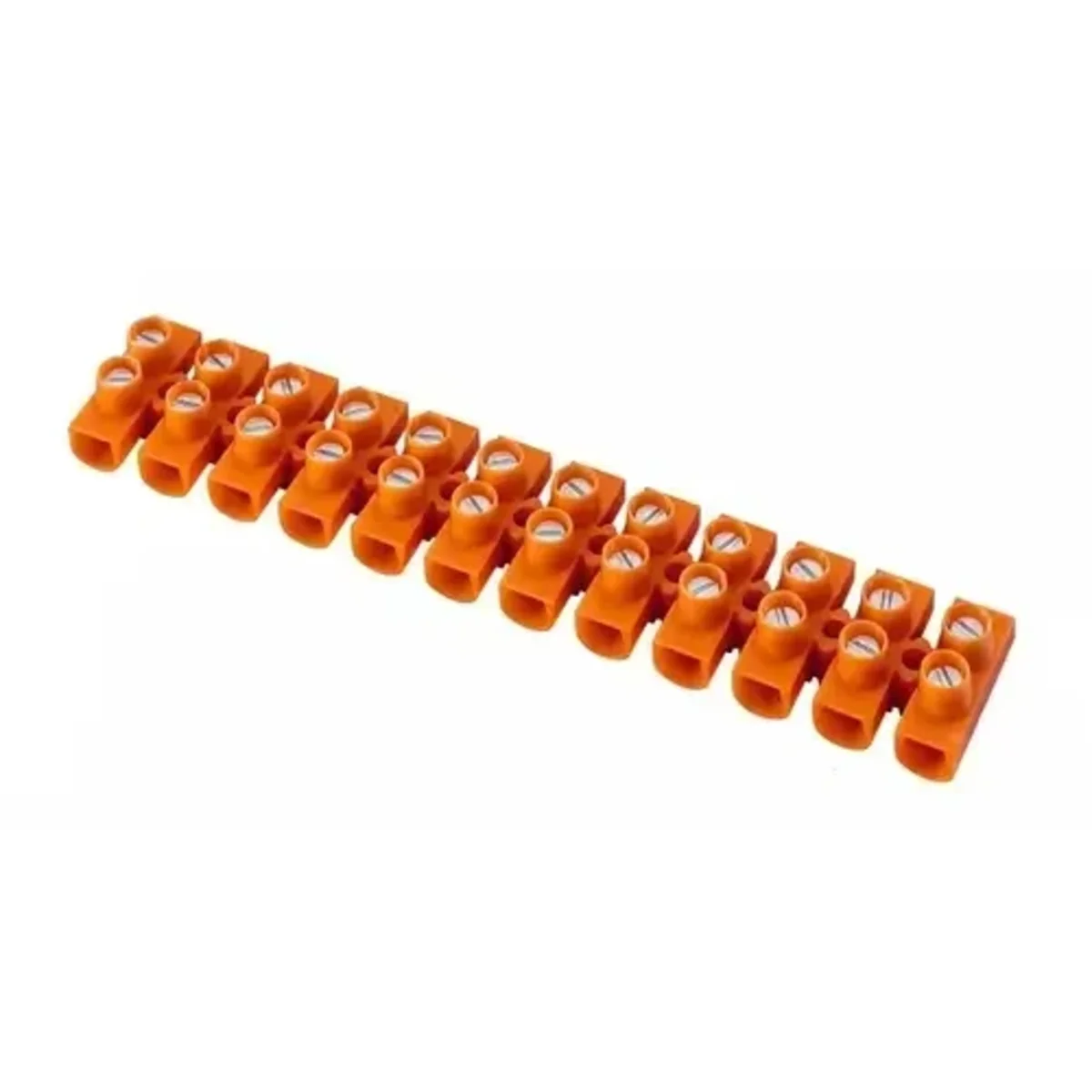

Thermoplastic threaded terminal block 10mm2 12 tracks 21512108

Lokaler Index:
TEG707SIME
Katalognummer:
21512108
EAN-Code:
5907813220012
Hersteller: SIMET
Color: Silver
Rated current [A]: 57
Nominal cross-section [mm²]: 10
Preis:
18,81 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 623 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Terminal strip, threaded, thermoplastic, 10mm2, 12 tracks

Technische Daten

  • Color
    Silver
  • Nominal cross-section [mm²]
    10
  • Accurate color
    Orange
  • Rated current [A]
    57
  • Libra
    69
  • PKWIU
    27.33.13.0

Weitere technische Daten

  • Drill hole distance centrically
    12 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    4 ... 6 mm²
  • Connectable conductor cross section solid-core
    4 ... 10 mm²
  • Rated current In
    57 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    20 mm
  • Closing plate required
    No
  • Transparent
    No
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    4 ... 6 mm²
  • Rated voltage
    750 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    12
  • Mounting method
    Direct mounting
  • Operating temperature
    -40 ... 55 °C
  • Width/grid dimension
    25 mm
  • Length
    141 mm
  • Colour
    Orange

Hersteller-Details

  • Hersteller
    SIMET S.A.
  • Adresse
    58-506 Jelenia Góra al. Jana Pawła II 33 Polska

Großpackungen

Eine Art Paket Pakiet
Menge 1 stk.
Breite (m) 0,025
Länge (m) 0,141
