Connecting cables and wires
Connectors
Threaded fittings

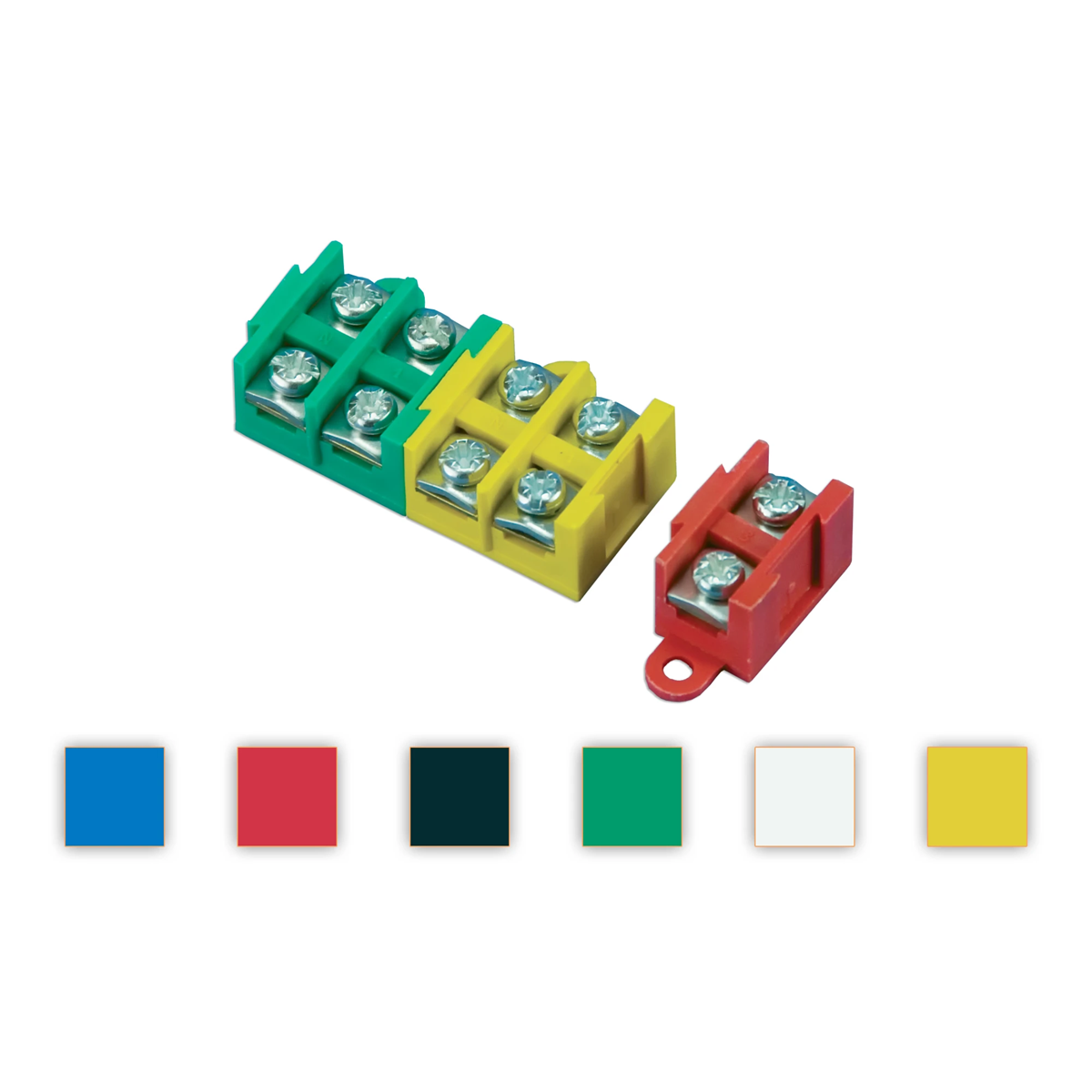

Terminal strip 5x4mm2 red E.4003
local index:
TEG025PAWB
Catalog No:
E.4003
EAN code:
5907484332632
Click on the photo to enlarge
Manufacturer:
PAWBOL
Number of terminals:
10
Color:
Red
Number of poles:
5
See full description
Price:
1,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Terminal block, 5x4mm2 red
Technical data
Number of terminals
10
Number of poles
5
Accurate color
Red
PKWIU
27.33.13.0
Color
Red
Rated voltage [V]
380
Wire cross-section [mm²]
4
Other technical data
Drill hole distance centrically
10 mm
Connectable conductor cross section fine-strand without cable end sleeve
1.5 ... 4 mm²
Connectable conductor cross section solid-core
1.5 ... 4 mm²
Rated current In
32 A
Type of electrical connection 1
Screw connection
Number of poles
5
Mounting method
Other
Operating temperature
-30 ... 80 °C
Closing plate required
No
Transparent
No
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
1.5 ... 2.5 mm²
Connectable conductor cross section multi-wired
1.5 ... 4 mm²
Rated voltage
400 V
Type of electrical connection 2
Other
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
Other
Colour
Other
See more >>
