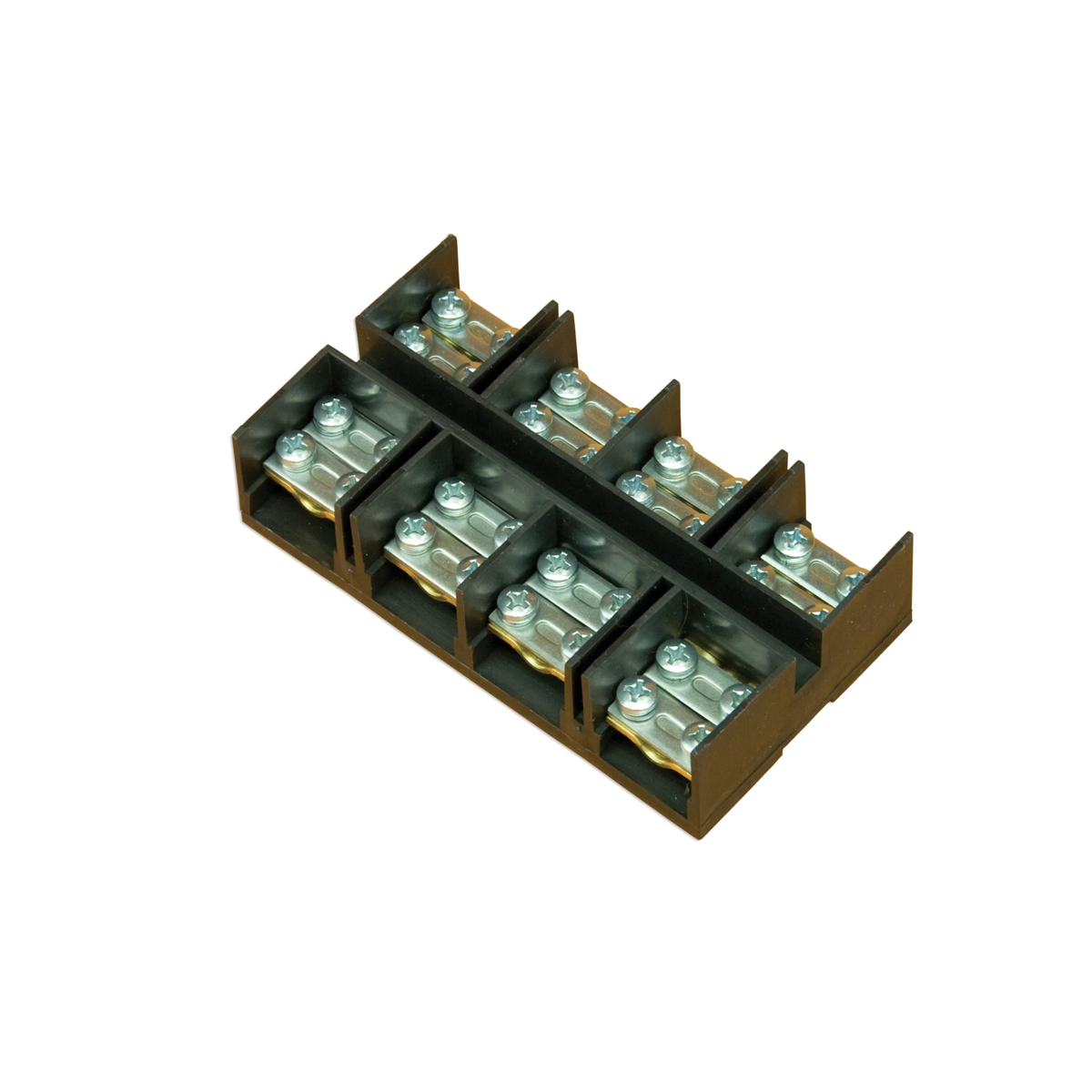

Name: Terminal strip, 4x35mm2 5 pcs.
Brand: PAWBOL
SKU: TEG039PAWB
Price: 34.80 PLN

Drill hole distance centrically

25 mm
Connectable conductor cross section fine-strand without cable end sleeve

1 ... 35 mm²
Connectable conductor cross section solid-core

1 ... 35 mm²
Rated current In

125 A
Type of electrical connection 1

Screw connection
Number of poles

4
Mounting method

Direct mounting
Operating temperature

-30 ... 80 °C
Closing plate required

No
Transparent

No

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

1 ... 25 mm²
Connectable conductor cross section multi-wired

1 ... 25 mm²
Rated voltage

400 V
Type of electrical connection 2

Other
Number of clamp positions per pole

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

Other
Colour

Black

Model	LZ 4x35mm2
Product Type	Terminal Strip
Application	Connecting wires
Number of tracks	4
Clamp cross section (mm2)	35
Rated current (A)	125
Rated voltage (V)	400
Color	Black
Material	Polyamide
Description	Terminal strips are used for electrically and mechanically secure connection of power cables.

Terminal strip, 4x35mm2 5 pcs. E.4008
