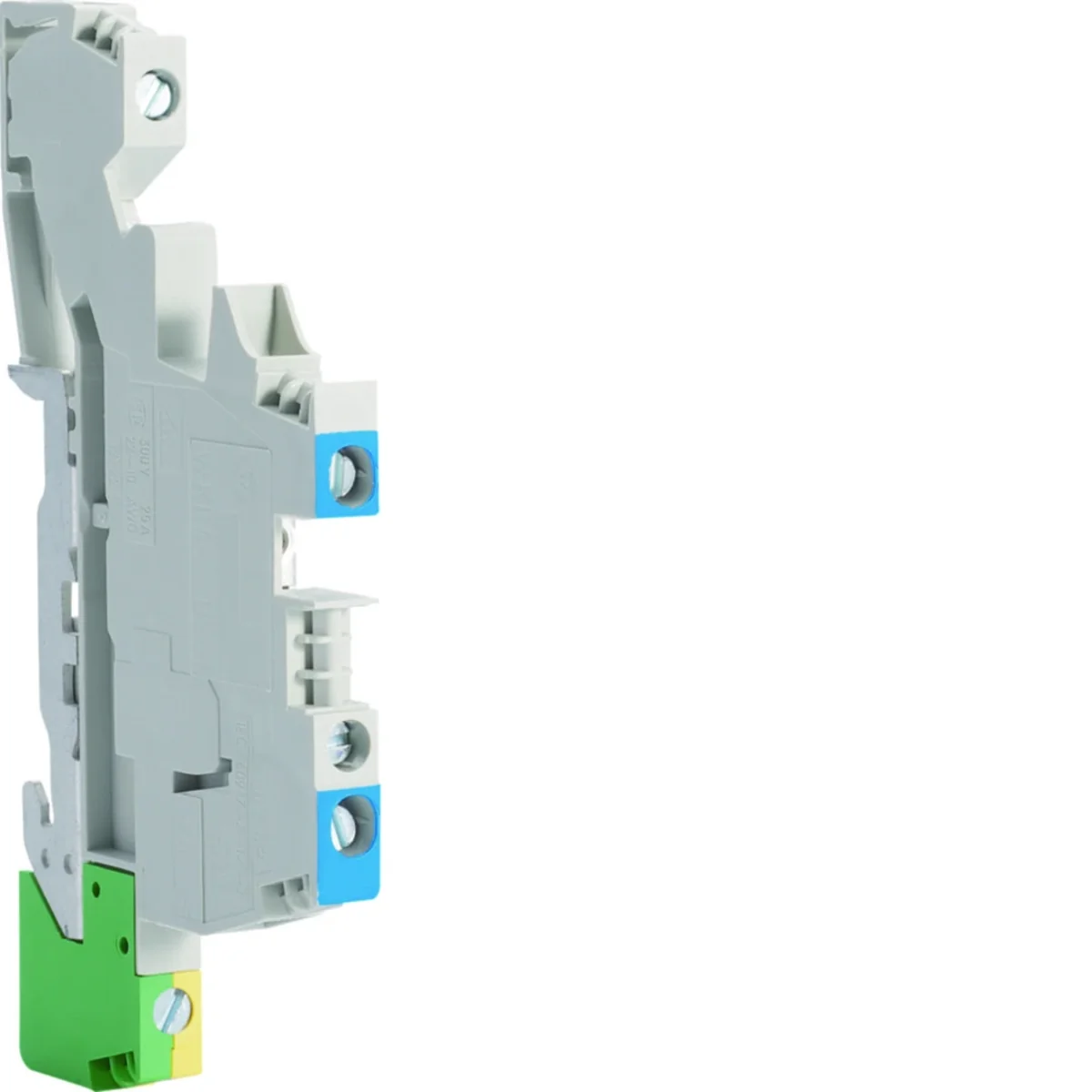

Terminal block Ph N PE 4mm2 KXA04I2

Through terminal, triple, without neutral barrier, Ph/N/PE, series screw terminals.

Series characteristics:< /p>

• Creep current resistance: KC > 600
• Temperature resistance: 120°C
• Possibility of connecting two wires with the same cross-section under one terminal screw ( for PE only 1 conductor)
• Easy cable entry into open terminal due to conical entry
• Easy to insert screwdriver into lowered terminal screws
• Idle/idle after loosening of the terminal screws - especially important for mechanical screwdrivers
• All parts permanently fixed in the terminal carrier
• Equal level up to 35 mm2 in order to maintain the required insulation distances between individual groups of terminals, possibly at the beginning or A partition/end plate must be placed at the end of the terminal group.
