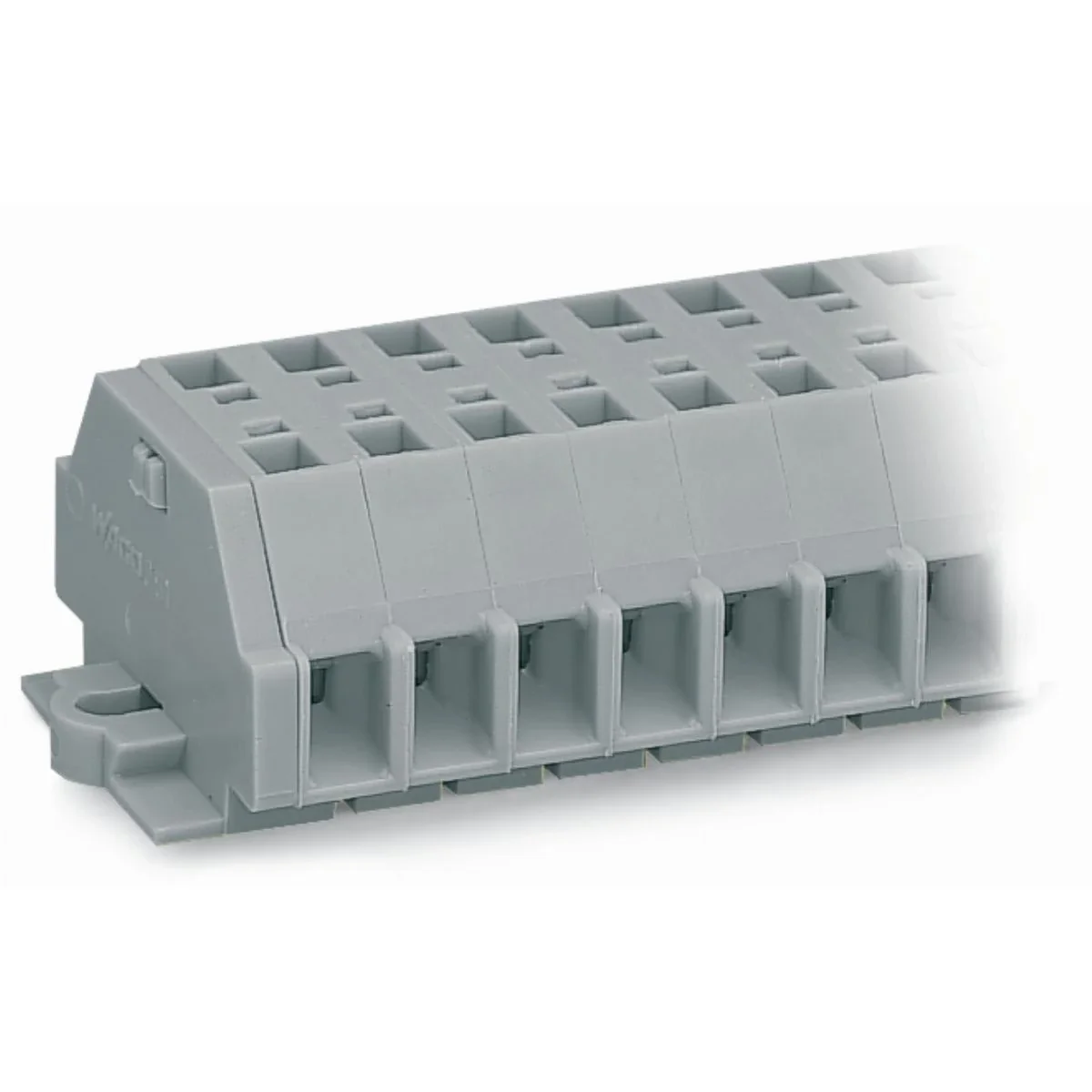

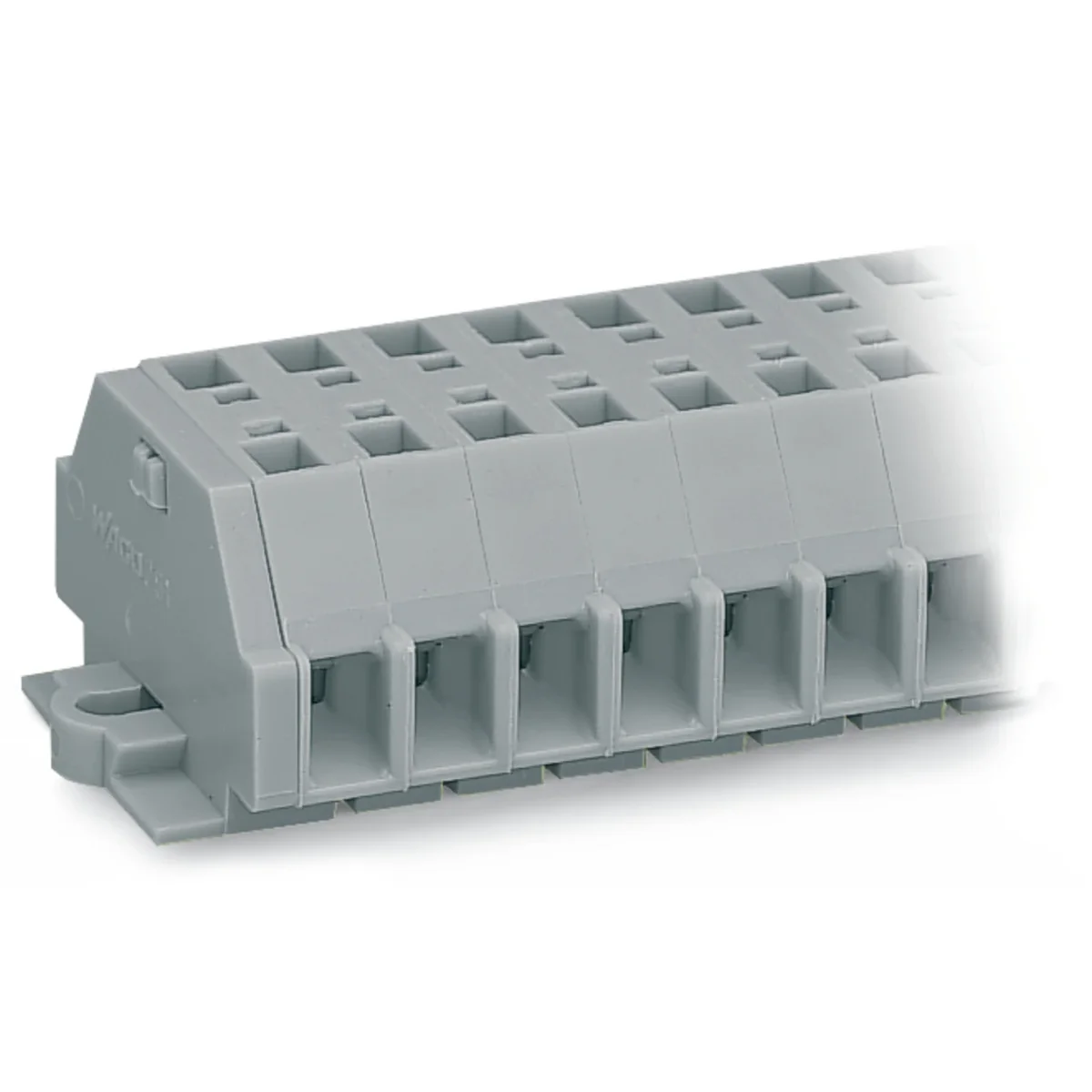

2-wire terminal block with screw fastening for various types of screw fastening mounting hole 3, 2 mm - after using the 209-123 base, mounting on TS 35 is possible 2-pole
Technical data
Number of tracks
2
Number of potentials
2
Gauge [AWG]
28 - 14
Series
261
Dirt zone
3
Accurate color
Gray
Color
Gray
Rated current [A]
24
Clamp type
CAGE CLAMP
How to install the cable
Side mounting
Rated impulse voltage [kV]
6
Number of connectors
4
Other technical data

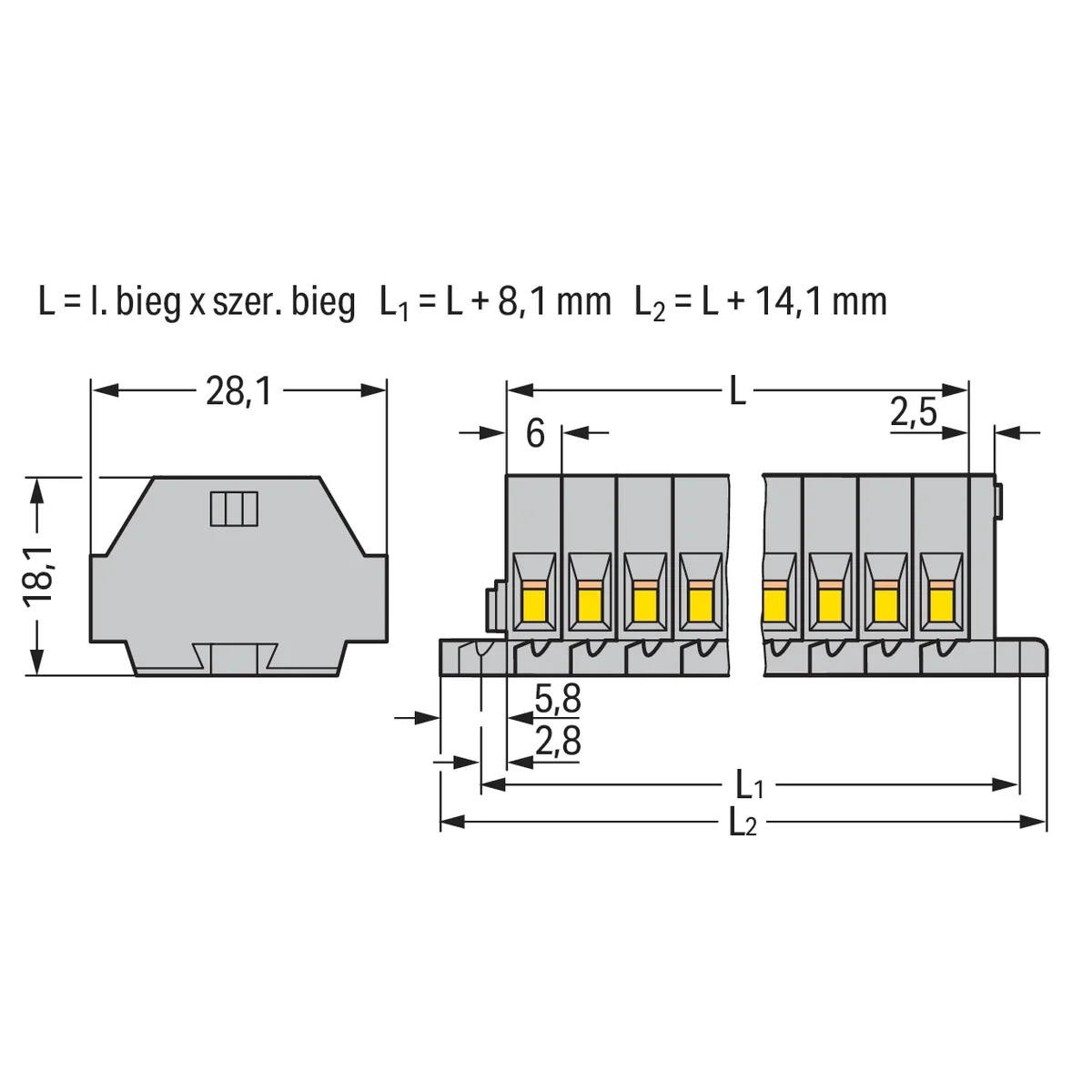

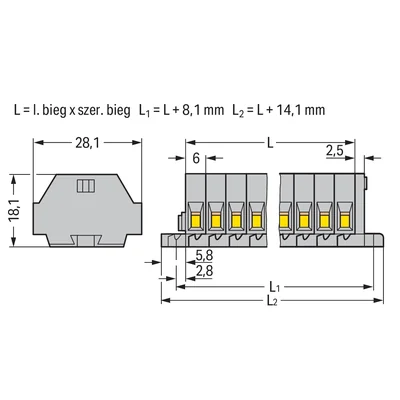

Drill hole distance centrically
20.1 mm
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 2.5 mm²
Connectable conductor cross section multi-wired
0.08 ... 2.5 mm²
Rated voltage
500 V
Type of electrical connection 2
Spring clamp connection
Number of poles
2
Mounting method
Other
Operating temperature
-30 ... 85 °C
Width/grid dimension
26.5 mm
Length
28 mm
Colour
Grey
Explosion-tested version 'Ex e'
No
Connectable conductor cross section solid-core
0.08 ... 2.5 mm²
Rated current In
24 A
Type of electrical connection 1
Spring clamp connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
