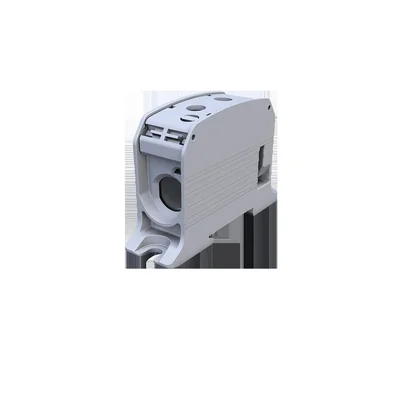

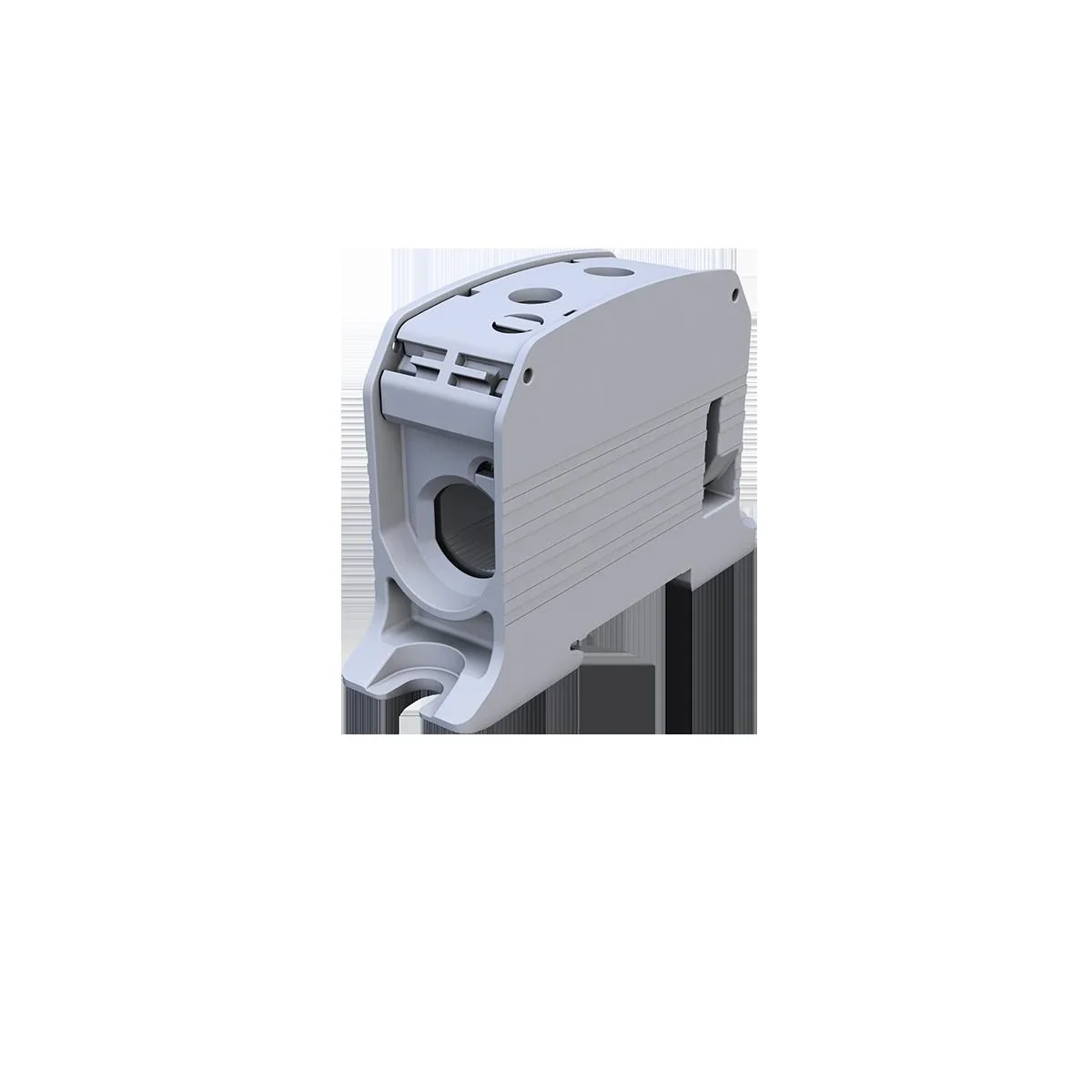

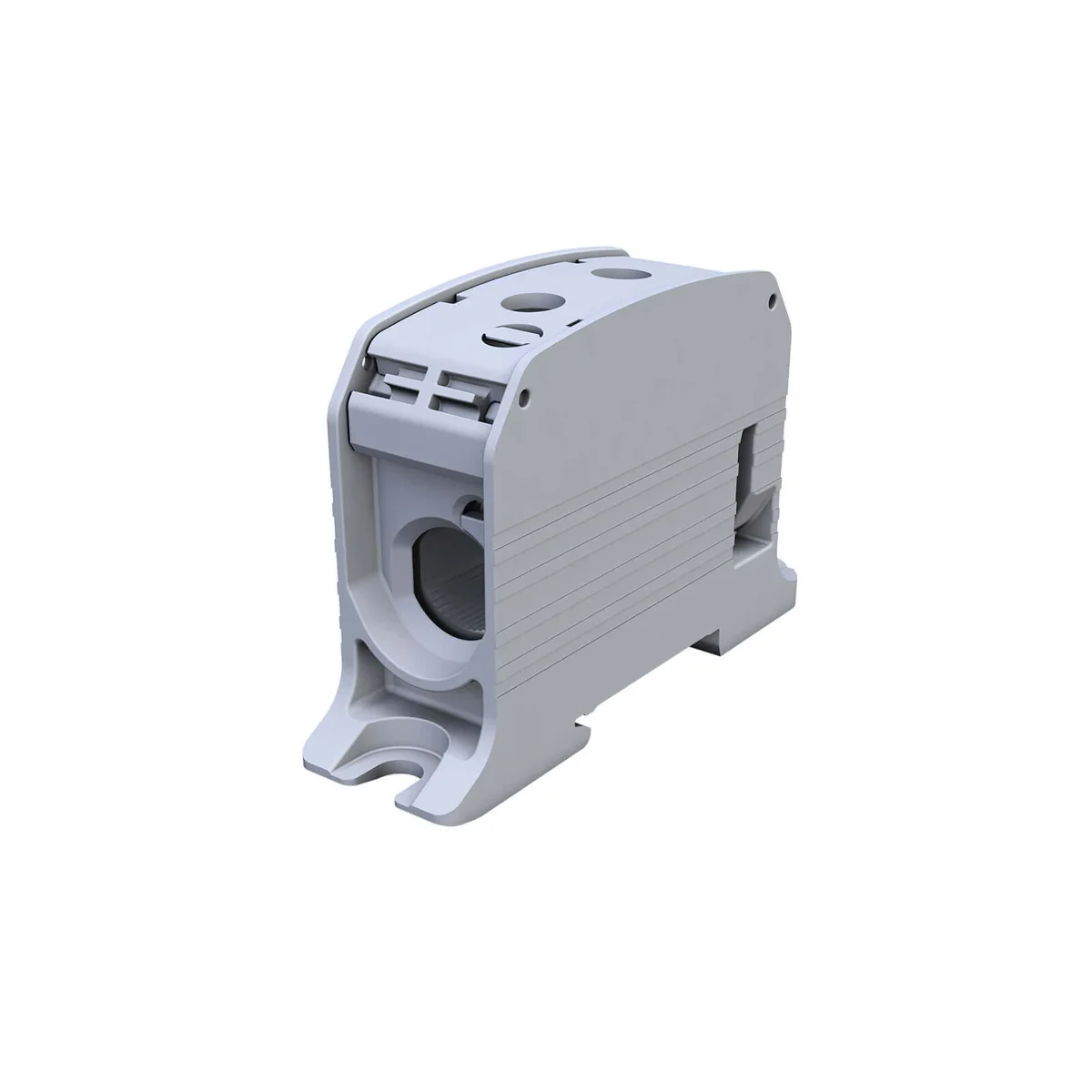

STB 95 Al/Cu screw terminal block 87510 SIMBLOCK grey 81101002

local index:
TES053SIME
Catalog No:
81101002
EAN code:
5907813233203
Manufacturer: SIMET
Length [mm]: 93
Color: Gray
Number of poles: 1
Price:
8,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 91 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

STB 95 Al/Cu 87510 SIMBLOCK threaded rail connector from the manufacturer Simet. The product catalog number is 81101002.

  • Rated voltage [V]: 1000 AC/DC.
  • Rated current Cu [A]: 232.
  • Rated current Al [A]: 200.< /li>
  • Entry (wire) [mm²]: 2 x (16 -95).
  • Entry (cord with ferrule) [mm²]: 2 x (10 -70).< /li>
  • Mounting: TS 35 rail / mounting plate.
  • Measuring connector (wire) [mm²]: 1 x (1.5 - 10).
  • Connector test sockets (cord with ferrule) [mm²]: 1 x (1.5 - 6).
  • The connector has an additional space for a measuring connector. A dedicated OSTB 95 anti-dust cap enables trouble-free access to the measuring connector.



SERIES DESCRIPTION

The STB series of aluminum threaded connectors is distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.

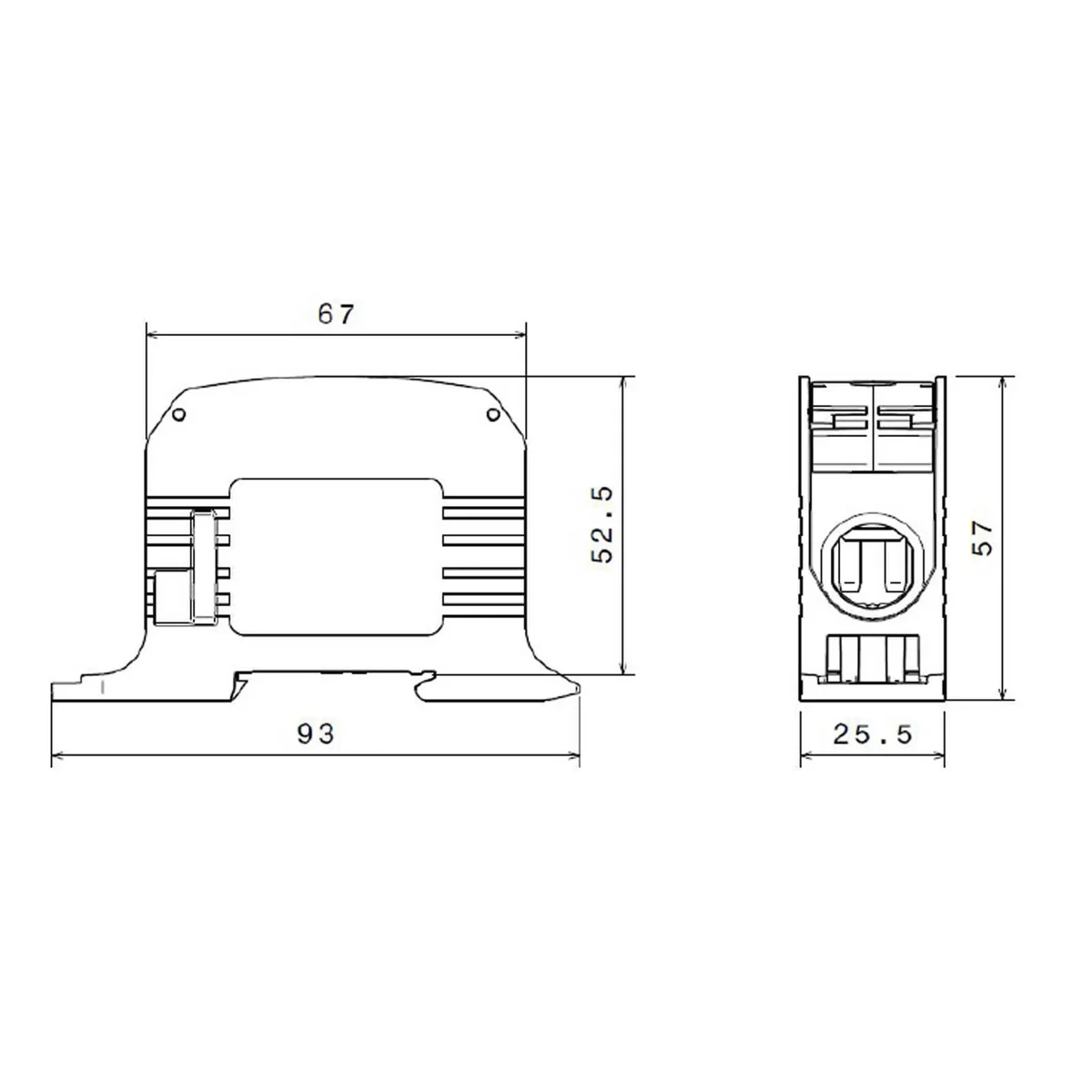

Technical data

  • Length [mm]
    93
  • Number of poles
    1
  • Rated current [A]
    232
  • Height [mm]
    57
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Rated voltage [V]
    1000
  • Width [mm]
    25.5
  • cross section [mm²]
    2 x 95
