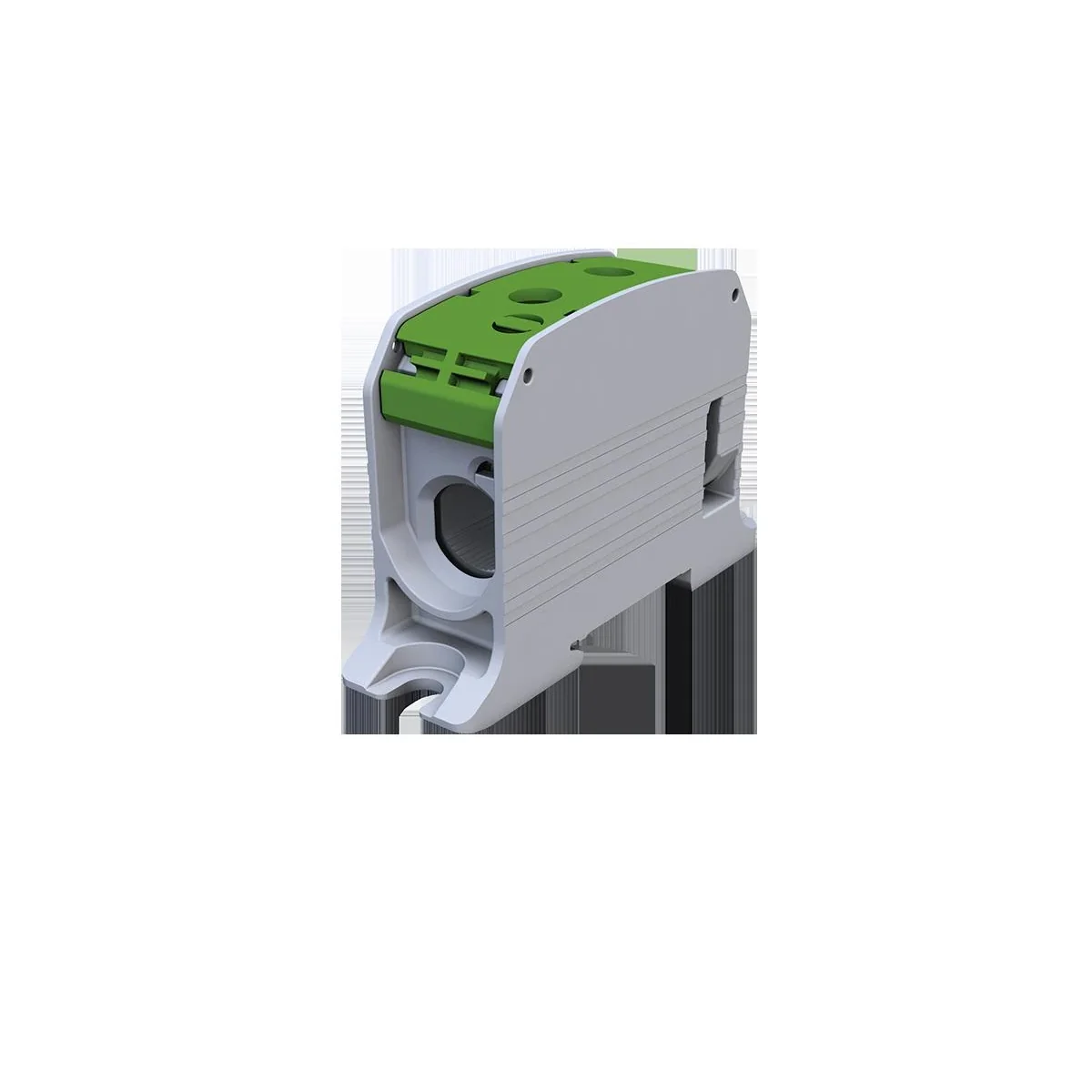

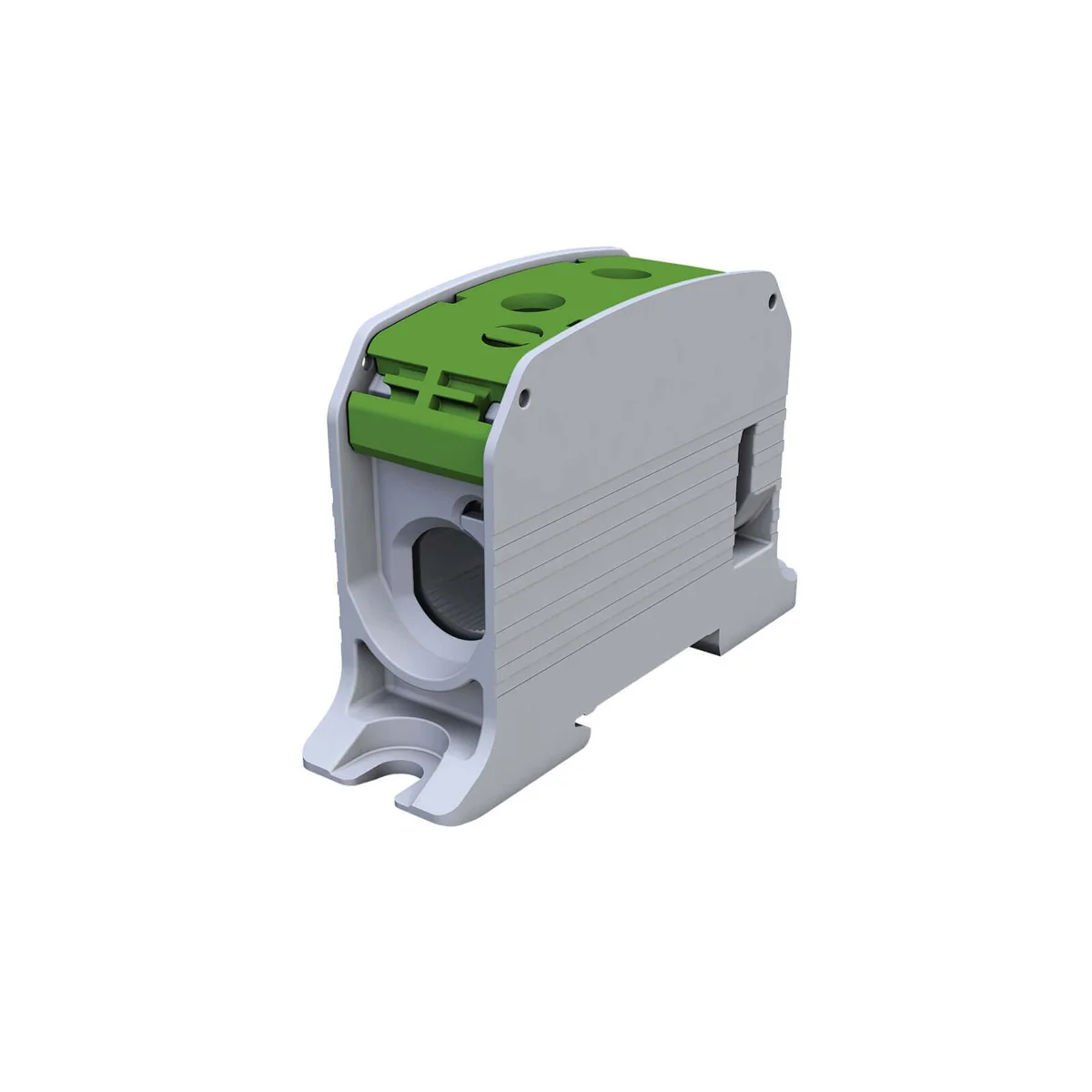

STB 95 Al/Cu screw terminal block 87510 SIMBLOCK green 81101005

STB 95 Al/Cu 87510 SIMBLOCK threaded rail connector from the manufacturer Simet. The product catalog number is 81101005.

• Rated voltage [V]: 1000 AC/DC.
• Rated current Cu [A]: 232.
• Rated current Al [A]: 200.< /li>
• Entry (wire) [mm²]: 2 x (16 -95).
• Entry (cord with ferrule) [mm²]: 2 x (10 -70).< /li>
• Mounting: TS 35 rail / mounting plate.
• Measuring connector (wire) [mm²]: 1 x (1.5 - 10).
• Connector test sockets (cord with ferrule) [mm²]: 1 x (1.5 - 6).
• The connector has an additional space for a measuring connector. A dedicated OSTB 95 anti-dust cap enables trouble-free access to the measuring connector.

SERIES DESCRIPTION

The STB series of aluminum threaded connectors is distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.
