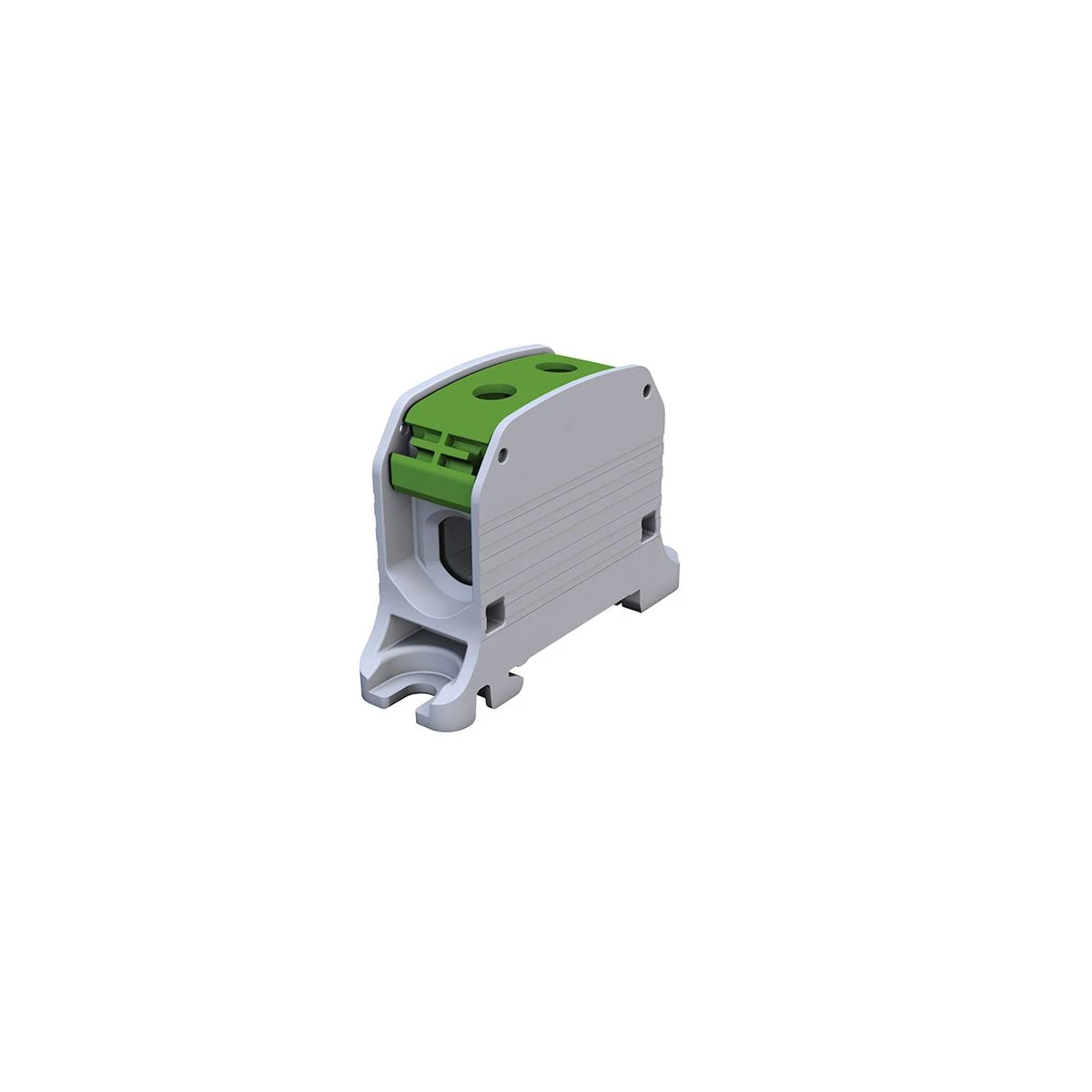

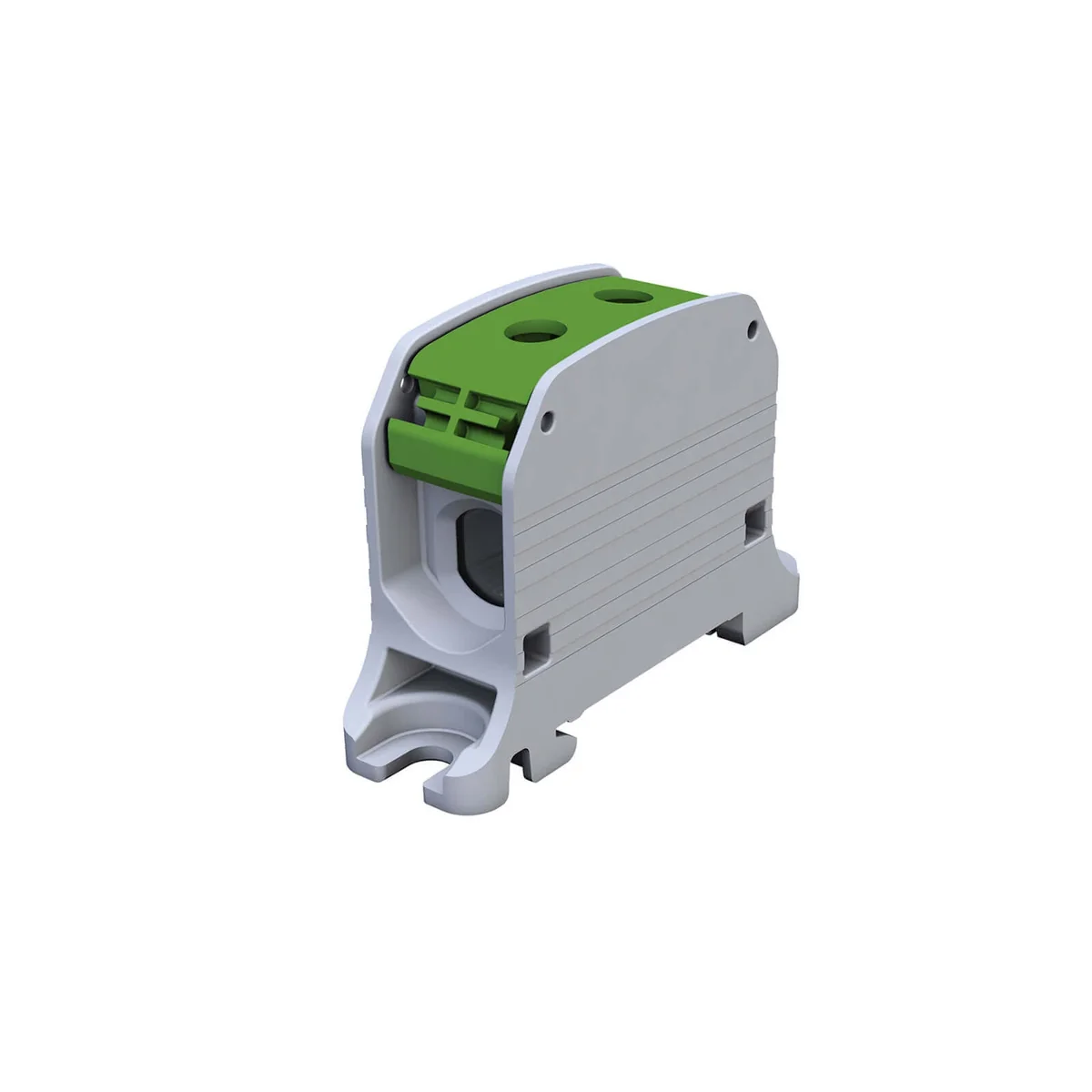

STB 50 Al/Cu screw terminal block 87310 SIMBLOCK green 81001005

STB 50 Al/Cu screw terminal block 87310 SIMBLOCK from the manufacturer Simet. The product catalog number is 81001005.

• Rated voltage [V]: 1000 AC/DC.
• Rated current Cu [A]: 150.
• Rated current Al [A]: 150.
• Entry (wire) [mm²]: 2 x (6 -50).
• Entry (cord with ferrule) [mm²]: 2 x (4 -35).
• Mounting: TS 35 rail / mounting plate.

SERIES DESCRIPTION

STB series of aluminum threaded connectors they are distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.
